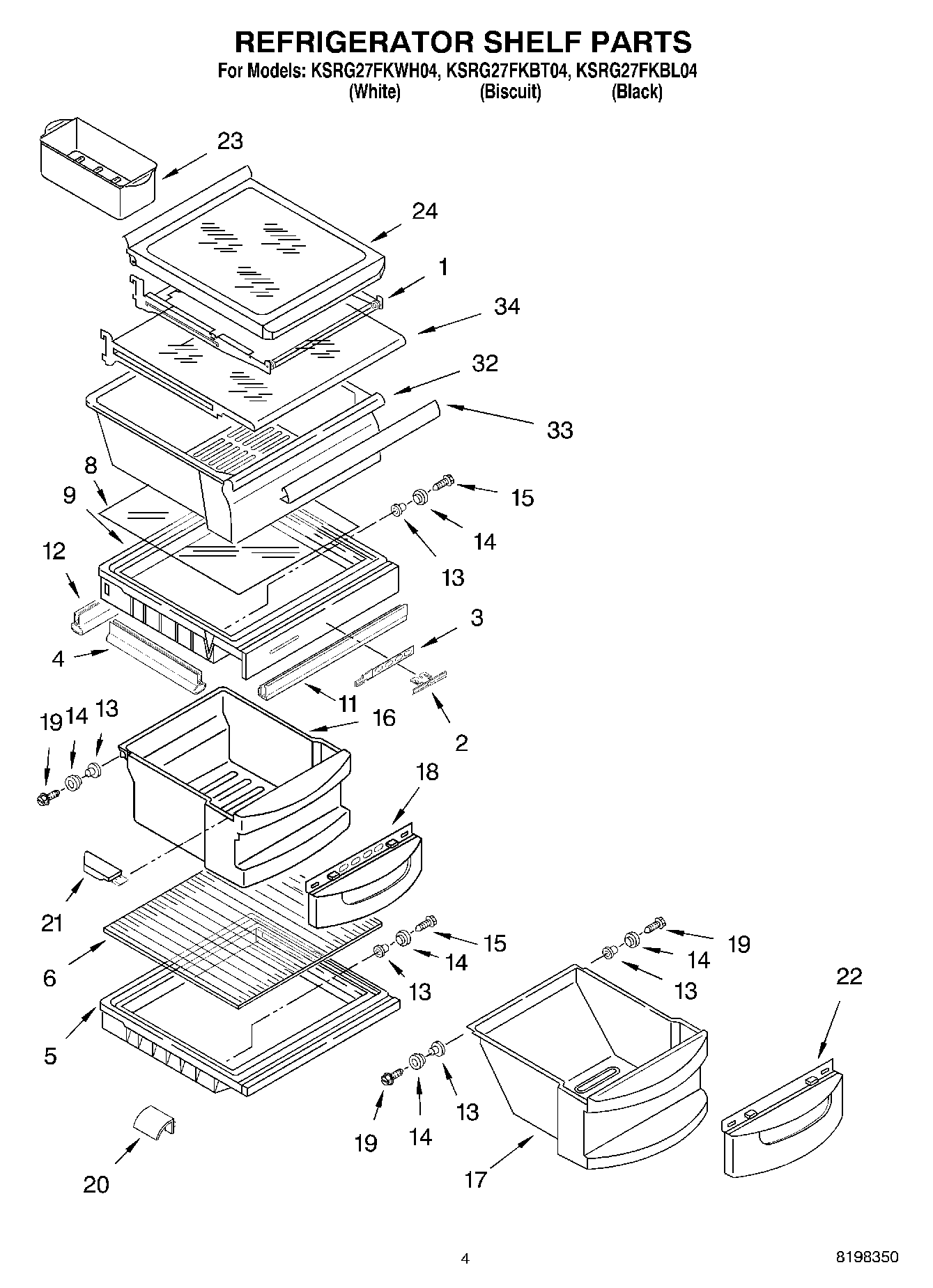

KSRG27FKBL04 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	Glass, Meat Pan Cover
8	Glass, Crisper Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14, 18, 19, & 21)
17	Meat Pan (Includes 13, 14, 19, & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
23	W10136387A Whirlpool Refrigerator Egg Container
24	Shelf & Roller Assembly
32	W11497323 Whirlpool Snack Pan
33	WP2179243 Whirlpool Refrigerator Pan Trim
34	Shelf Assembly
