KSRG27FKBL04 10 – CONTROL

KSRG27FKBL04 10 – CONTROL

Written by

in

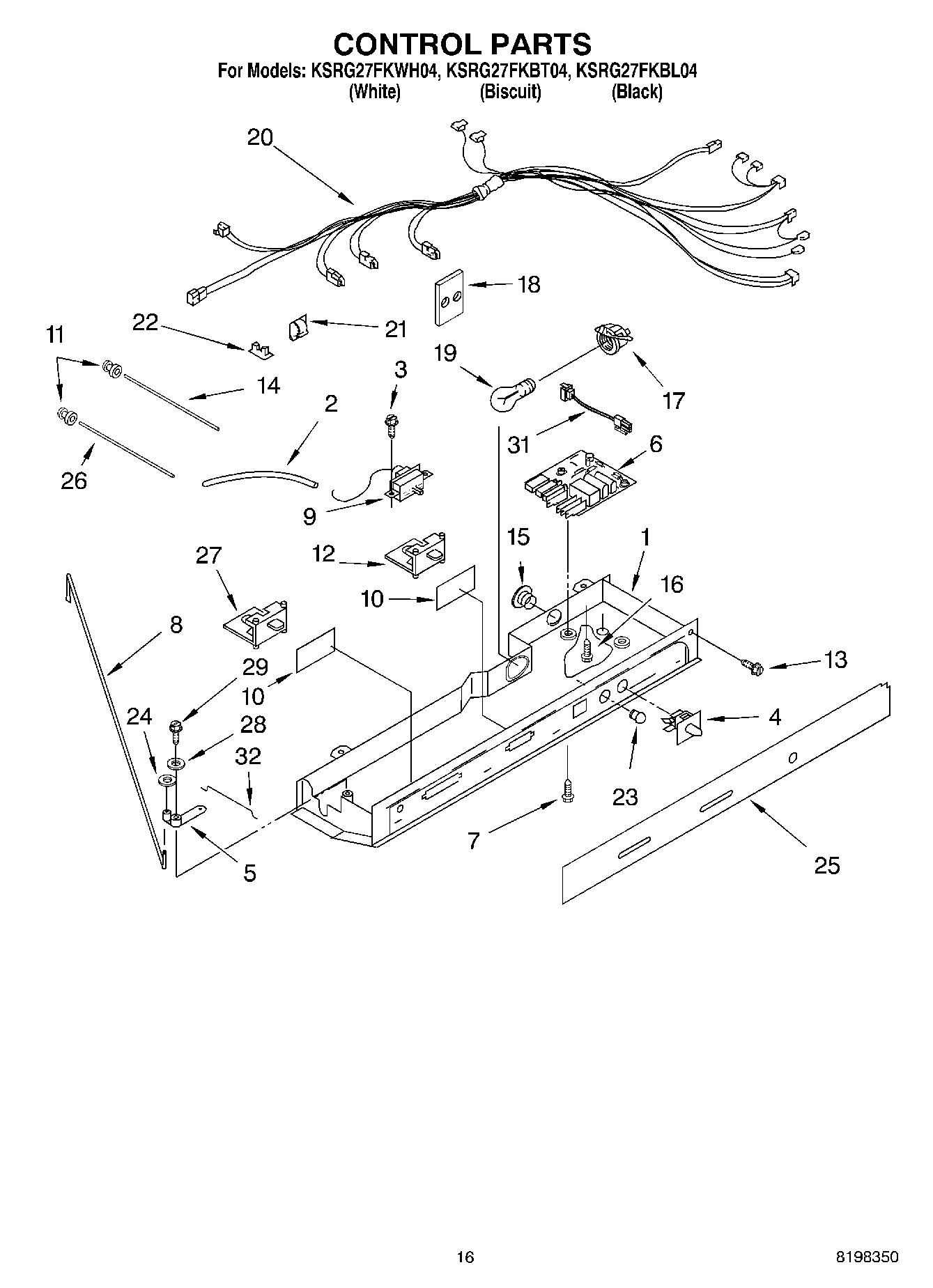

KSRG27FKBL04 10 – CONTROL

Products

PositionProduct
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
52161306 Whirlpool Refrigerator Arm Pivot
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7489392 Whirlpool Refrigerator Screw
82161308 Whirlpool Refrigerator Rod
9WP2315562 Whirlpool Refrigerator Thermostat
10Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15940014 Whirlpool Refrigerator Primary Button Plug
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19RANGE ONLY 40W 120V APPL BULB
202311632 Whirlpool Refrigerator Wire Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23COVER, LIGHT LENS
24Fastener, Push-On
25Escutcheon, Control Box
26Light Bar (FC)
272181741 Whirlpool Refrigerator Slide
28489203 Whirlpool Refrigerator Washer
29627068 Whirlpool Refrigerator Screw
31W10853646 Whirlpool Indicator Light
322161307 Whirlpool Refrigerator Rod
