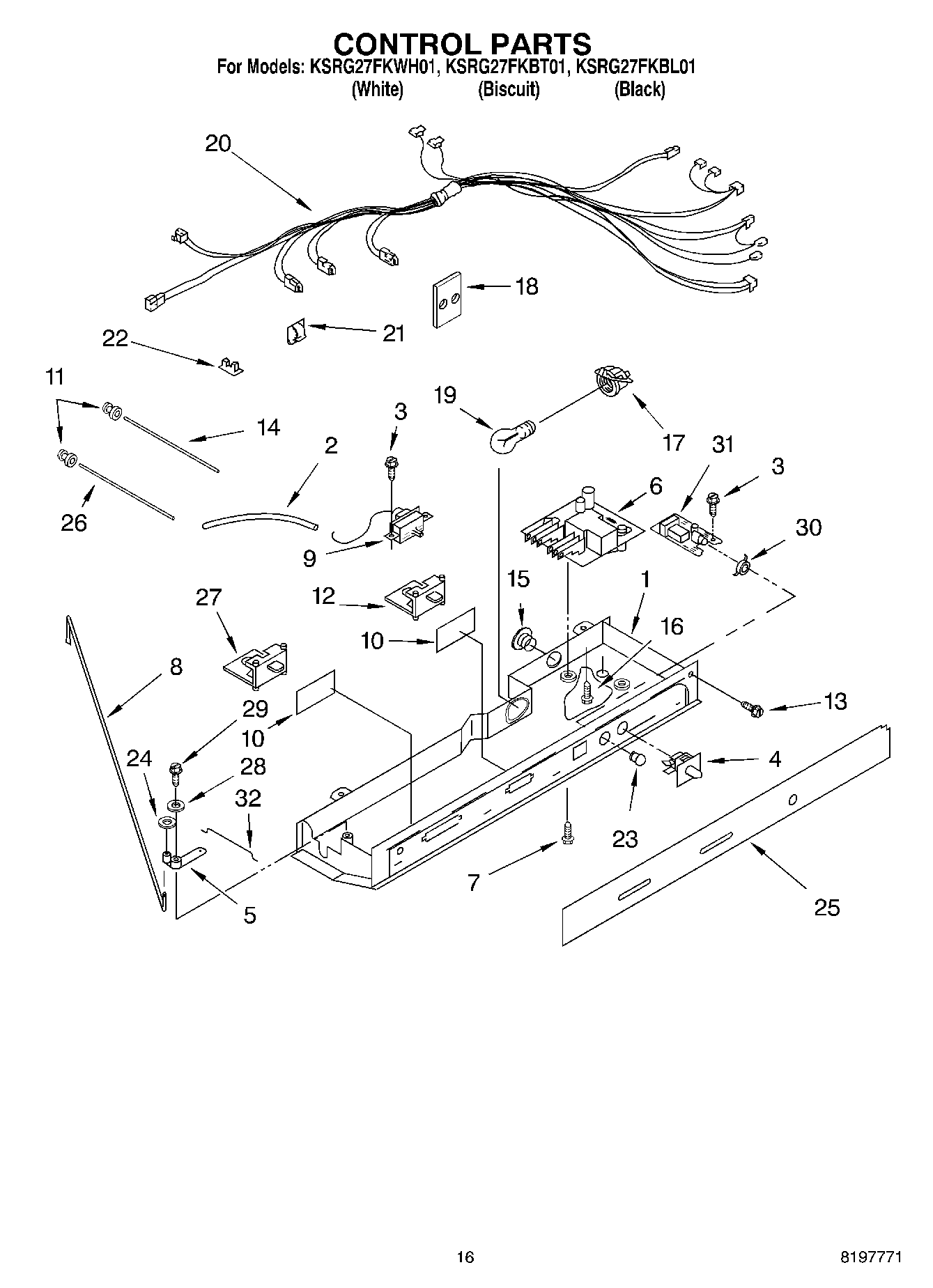

KSRG27FKBT01 10 – CONTROLadmin2025-04-26T11:38:27+00:00KSRG27FKBT01 10 – CONTROL ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch52161306 Whirlpool Refrigerator Arm Pivot64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit7489392 Whirlpool Refrigerator Screw82161308 Whirlpool Refrigerator Rod9WP2315562 Whirlpool Refrigerator Thermostat10Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic15940014 Whirlpool Refrigerator Primary Button Plug16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19RANGE ONLY 40W 120V APPL BULB20Harness, Control Box21WP1115374 Whirlpool Refrigerator Clip22CLIP, WIRING23COVER, LIGHT LENS24Fastener, Push-On25Escutcheon, Control Box26Light Bar (FC)272181741 Whirlpool Refrigerator Slide28489203 Whirlpool Refrigerator Washer29627068 Whirlpool Refrigerator Screw30Retainer, Light Lens31P.C. Board Filter Indicator322161307 Whirlpool Refrigerator Rod
