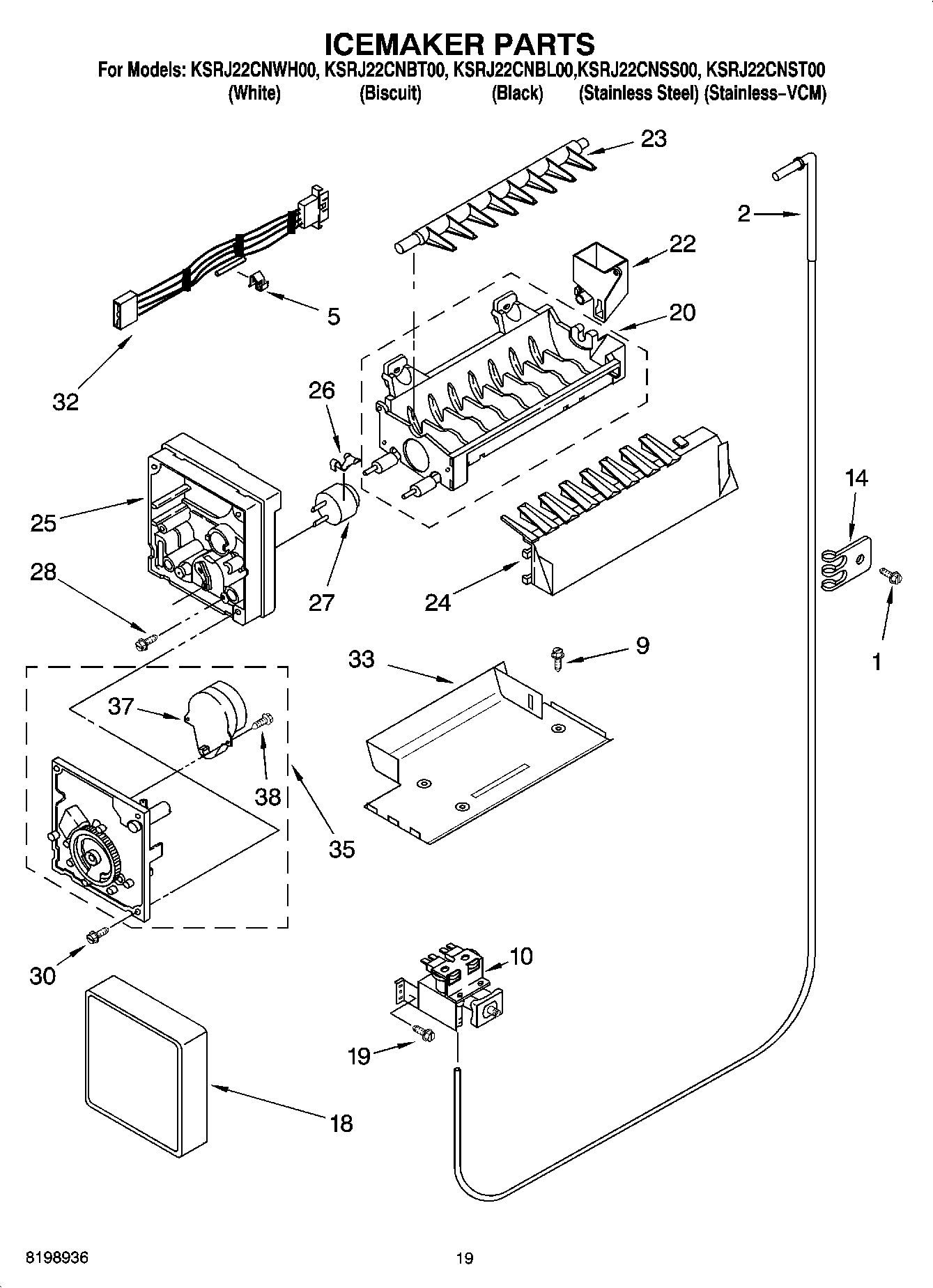

KSRJ22CNSS00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

KSRJ22CNSS00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRJ22CNSS00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WPL 876029
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
285006 Whirlpool Spray
212643 Whirlpool Refrigerator Permagum Sealer
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WP505587 Whirlpool Refrigerator Sealer
WPL ARI98078A3
WPL ARI98077A3
WPL ARI98076A9
WPL ARI98075A1
Ice Container Assembly
WPL ARI98079A6
72032 Whirlpool Touch Up Paint Black
WPL 799833
2WP2256096 Whirlpool Refrigerator Fitting
5WP628379 Whirlpool Refrigerator Clip
9WP489478 Whirlpool Refrigerator Screw
10W10822681 Whirlpool Refrigerator Water Inlet Valve
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10122550 Whirlpool Refrigerator Ice Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23626753 Whirlpool Refrigerator Ejector Arm
24W10297245 Whirlpool Refrigerator Arm Stripper
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
32WPW10309401 Whirlpool Refrigerator Wire Harness
33Bracket, Icemaker Mounting
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
100WPW10190961 Whirlpool Ice Maker
