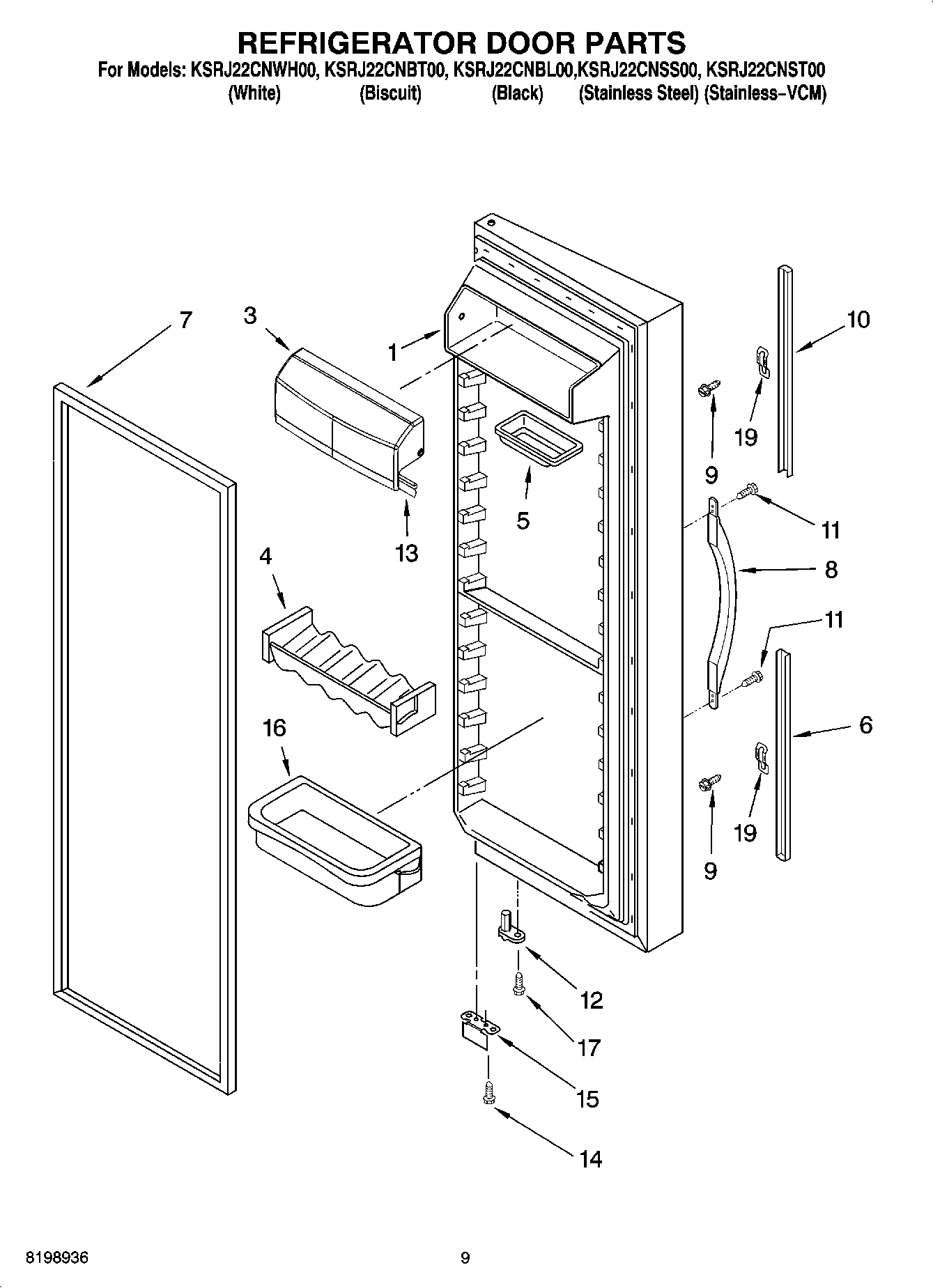

KSRJ22CNWH00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (White)
1	Refrigerator Door (Includes 7) (Biscuit)
1	Refrigerator Door (Includes 7) (Stainless Steel)
1	Refrigerator Door (Includes 7) (Stainless-VCM)
1	Refrigerator Door (Includes 7) (Black)
3	Door, Compartment
4	Beverage Holder
5	Butter Tray
6	Trim, Door-Bottom (Black)
6	Trim, Door-Bottom (White)
6	Trim, Door-Bottom (Biscuit)
7	2159073 Whirlpool Refrigerator Door Gasket
7	2159081 Whirlpool Refrigerator Door Gasket
8	WP2217185B Whirlpool Refrigerator Handle
8	Handle (White)
8	Handle (Biscuit)
9	WP3400852 Whirlpool Refrigerator Screw
10	Trim, Door-Top (Biscuit)
10	Trim, Door-Top (Black)
10	Trim, Door-Top (White)
11	WP489491 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop
15	Bracket, Door Stop
16	Shelf Bin (3)
17	WP3400012 Whirlpool Refrigerator Screw
19	WP2195327 Whirlpool Refrigerator Clip
