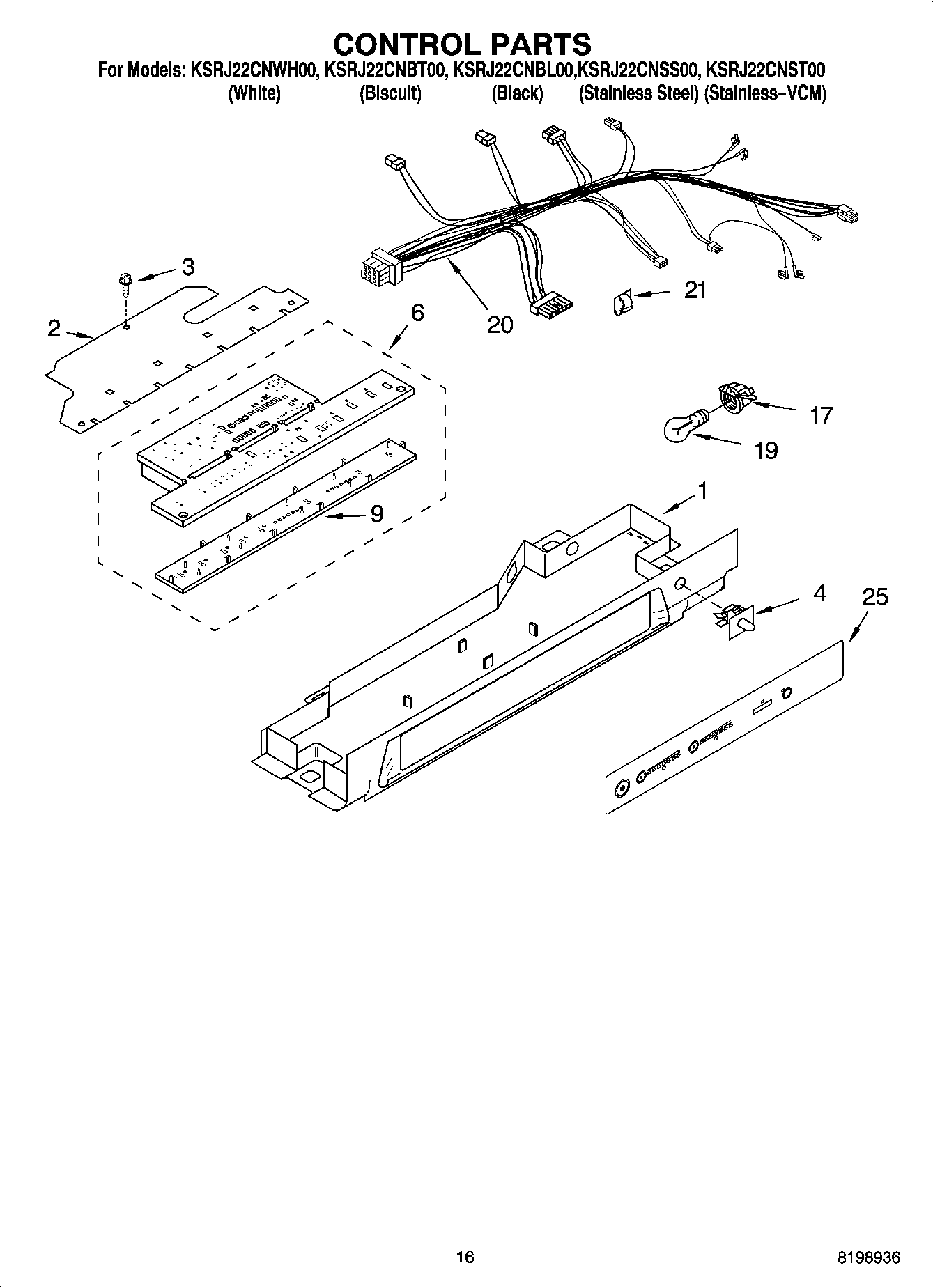

KSRJ22CNWH00 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board Asm (Includes 25)
9	Insert, Control Board (Not Available Order6)
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
25	Overlay, Control Box
