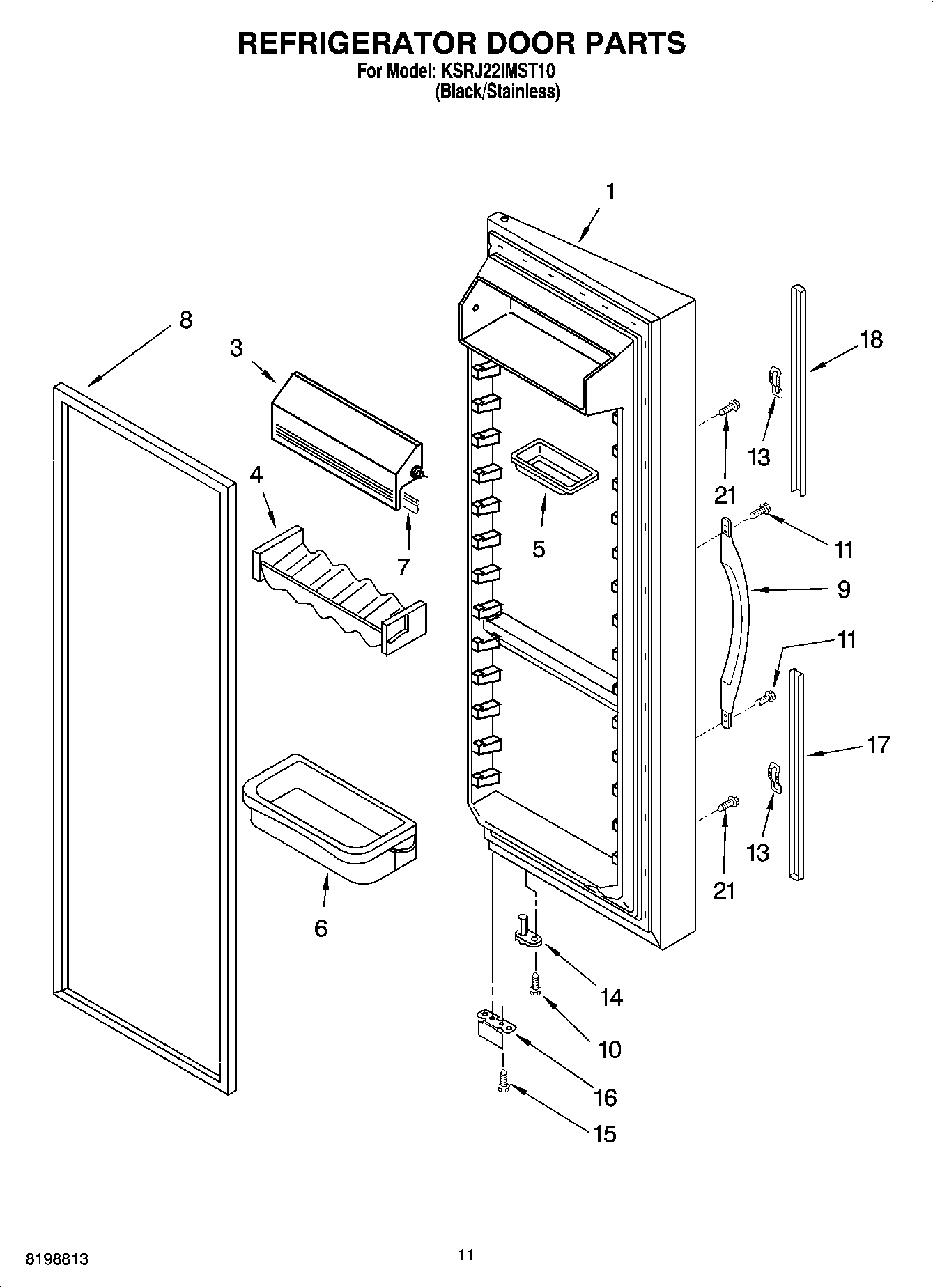

KSRJ22IMST10 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (Stainless-VCM)
3	Door, Compartment
4	Beverage Holder
5	Butter Tray
6	Bin, Door Shelf
7	Gasket, Door Compartment
8	2159081 Whirlpool Refrigerator Door Gasket
9	WP2217185B Whirlpool Refrigerator Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	WP489491 Whirlpool Refrigerator Screw
13	WP2195327 Whirlpool Refrigerator Clip
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
17	Trim, Door-Bottom (Black)
18	Trim, Door-Top (Black)
21	WP3400852 Whirlpool Refrigerator Screw
