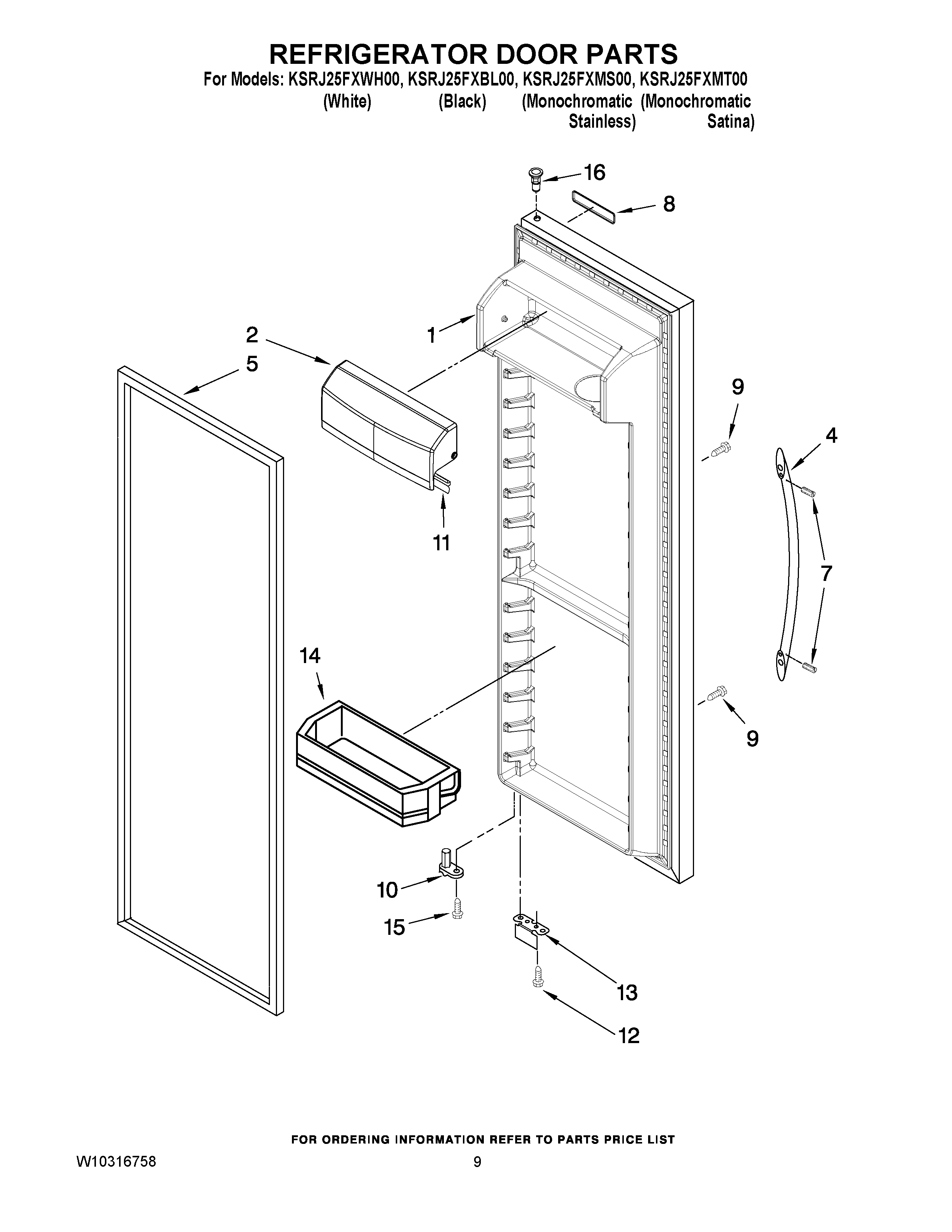

KSRJ25FXBL00 06 – REFRIGERATOR DOOR PARTS

KSRJ25FXBL00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRJ25FXBL00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.7) (MONO SATINA)
1REFRIGERATOR DOOR (INCLUDES No.7) (MONO STAINLESS)
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
2Door, Compartment
4Handle, Door (Stainless Steel)
4WP2319727W Whirlpool Refrigerator Handle
4WP2319727B Whirlpool Refrigerator Handle
52159075 Whirlpool Door Gasket Seal
52159083 Whirlpool Gasket Door
7SCREW
7WPW10010150 Whirlpool Refrigerator Screw
8WPW10243392 Whirlpool Dishwasher Nameplate
8WPW10243393 Whirlpool Dishwasher Nameplate
8NAMEPLATE
9WPW10170540 Whirlpool Screw
10WP2182179 Whirlpool Cam Closer
11Gasket, Door Compartment
12WPW10142233 Whirlpool Refrigerator Screw
13BRACKET, DOOR STOP (CHROME)
13Bracket, Door Stop (Black)
14WP2223434K Whirlpool Refrigerator Door Shelf Bin
15WP3400012 Whirlpool Refrigerator Screw
16WP2182181 Whirlpool Refrigerator Thimble
