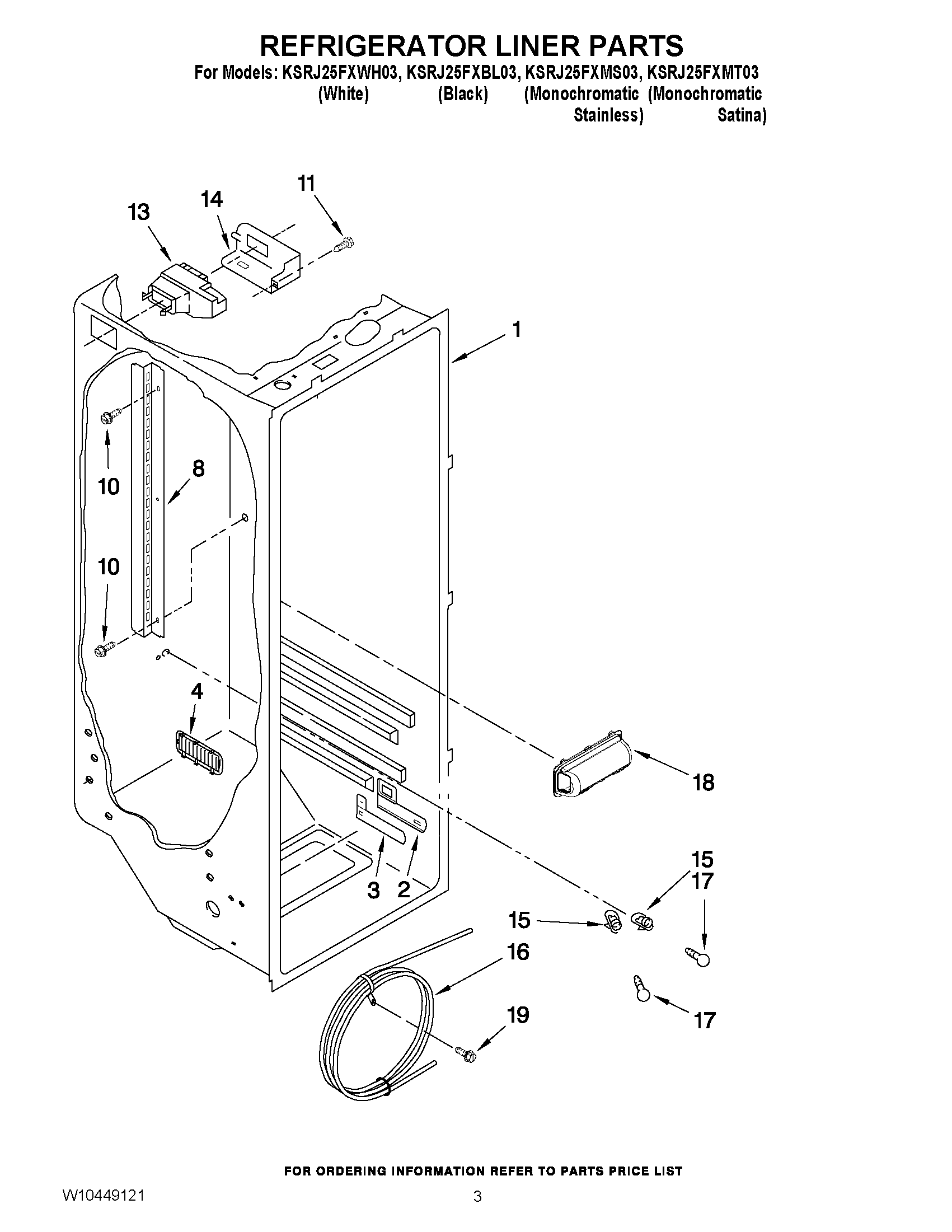

KSRJ25FXBL03 02 – REFRIGERATOR LINER PARTS

KSRJ25FXBL03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRJ25FXBL03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
8Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
11W10759522 Whirlpool Screw
13W10899382 Whirlpool Damper Control Assembly
14W10128735 Whirlpool Refrigerator Cover
154387478 Whirlpool Refrigerator Light Socket
16RESERVOIR
17WPA3073101 Whirlpool Light Bulb
18W11239891 Whirlpool Refrigerator Light Lens
19W10141518 Whirlpool Refrigerator Screw
