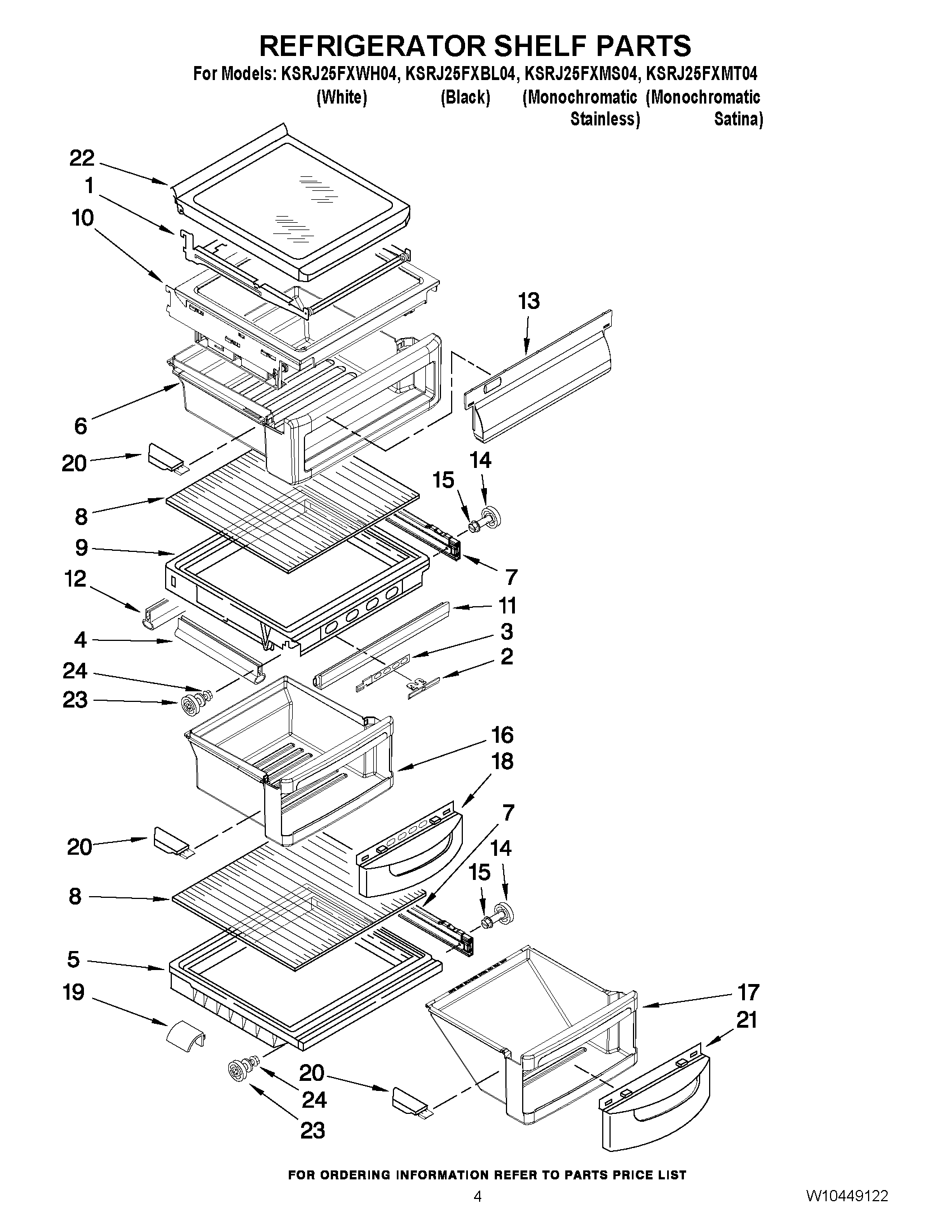

KSRJ25FXBL04 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
6	Snack Bin
7	Glide Assm-Pan (Left Side)
7	2301548 Whirlpool Refrigerator Glide
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Shelf Assembly
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Window, Snack Pan
14	W11527119 Whirlpool Refrigerator Shelf Stud
15	WPW10191952 Whirlpool Refrigerator Screw
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	Deflector
20	Cap, Crisper Pan (Left Side)
20	Cap, Crisper Pan (Right Side)
21	Window, Meat Pan
22	WPW10141748 Whirlpool Refrigerator Glass Shelf
23	W11223328 Whirlpool Refrigerator Shelf Stud
24	WP3-24004-109 Whirlpool Refrigerator Screw
