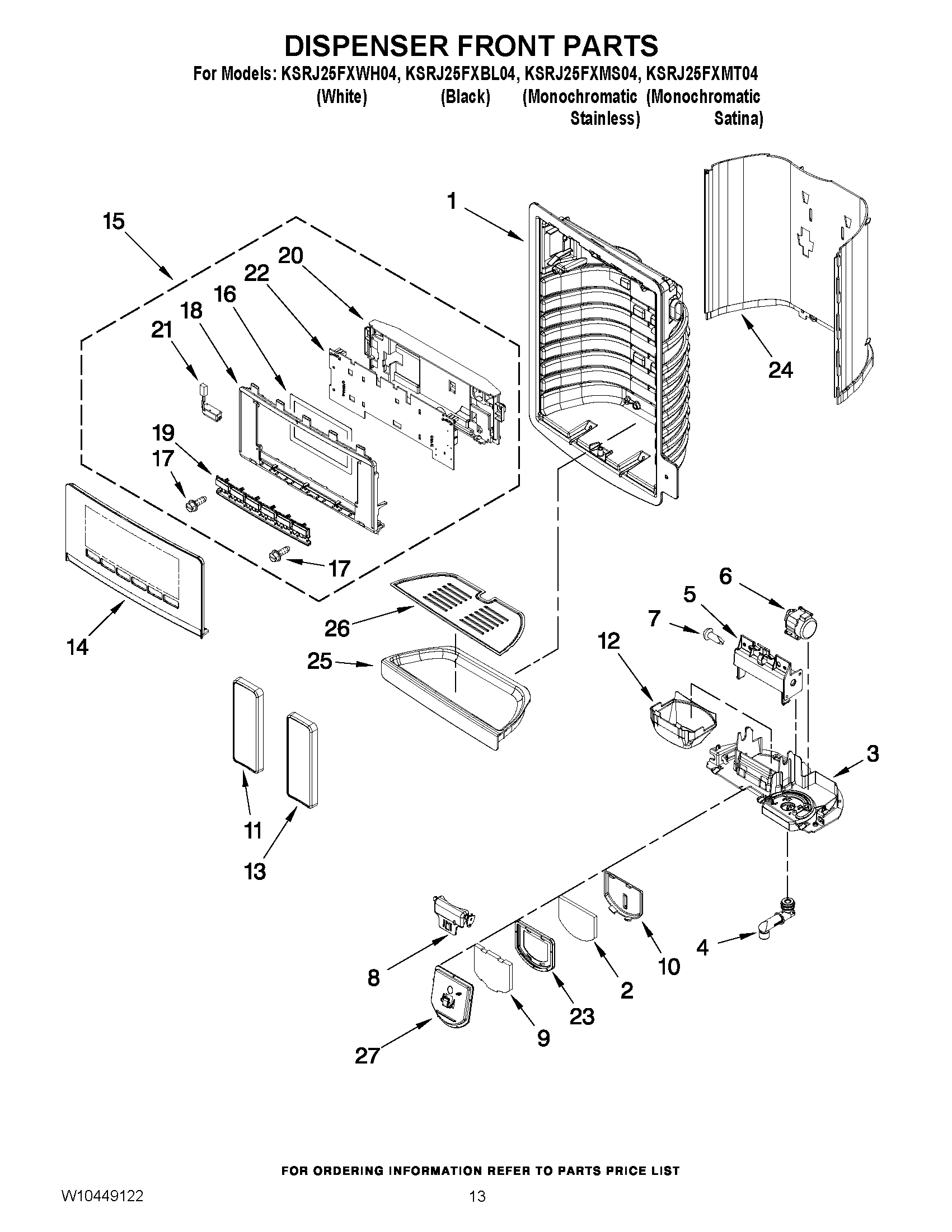

KSRJ25FXBL04 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10331454 Whirlpool Refrigerator Insulation
3	SEPARATOR, FIXED
4	SPIGOT-BODY ASSY
5	W10174827 Whirlpool Refrigerator Bracket
6	WPW10205978 Whirlpool Motor
7	W10174818 Whirlpool Refrigerator Clip
8	WPW10346124 Whirlpool Refrigerator Support
9	WPW10331456 Whirlpool Refrigerator Insulation
10	WPW10317279 Whirlpool Refrigerator Door Chute
11	PAD, ICE DISPENSER (BLACK)
11	PAD, ICE DISPENSER (WHITE)
11	WPW10368730 Whirlpool Refrigerator Pad
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	PAD, WATER DISPENSER (WHITE)
13	PAD, WATER DISPENSER (BLACK)
13	PAD, WATER DISPENSER (APOLLO GRAY)
14	FASCIA ASSY (WHITE)
14	FASCIA ASSY (BLACK)
14	FASCIA ASSY (STAINLESS)
15	UI ASSY, STEALTH
16	BARRIER, MOISTURE
17	WP3400906 Whirlpool Refrigerator Screw
18	FRAME, FASCIA
19	TREE, BUTTON
20	W10254277 Whirlpool Cover Assembly
21	W11290115 Whirlpool Refrigerator Light
22	CTRL-ELEK, STEALTH
23	WPW10317282 Whirlpool Refrigerator Door Gasket
24	FALSE WALL (STAINLESS)
24	FALSE WALL (WHITE)
24	FALSE WALL (BLACK)
25	DRIP TRAY (STAINLESS)
25	DRIP TRAY (BLACK)
25	DRIP TRAY (WHITE)
26	GRATE, DRIP TRAY (BLACK)
26	GRATE, DRIP TRAY (WHITE)
26	GRATE, DRIP TRAY (STAINLESS)
27	W10339582 Whirlpool Refrigerator Clip
