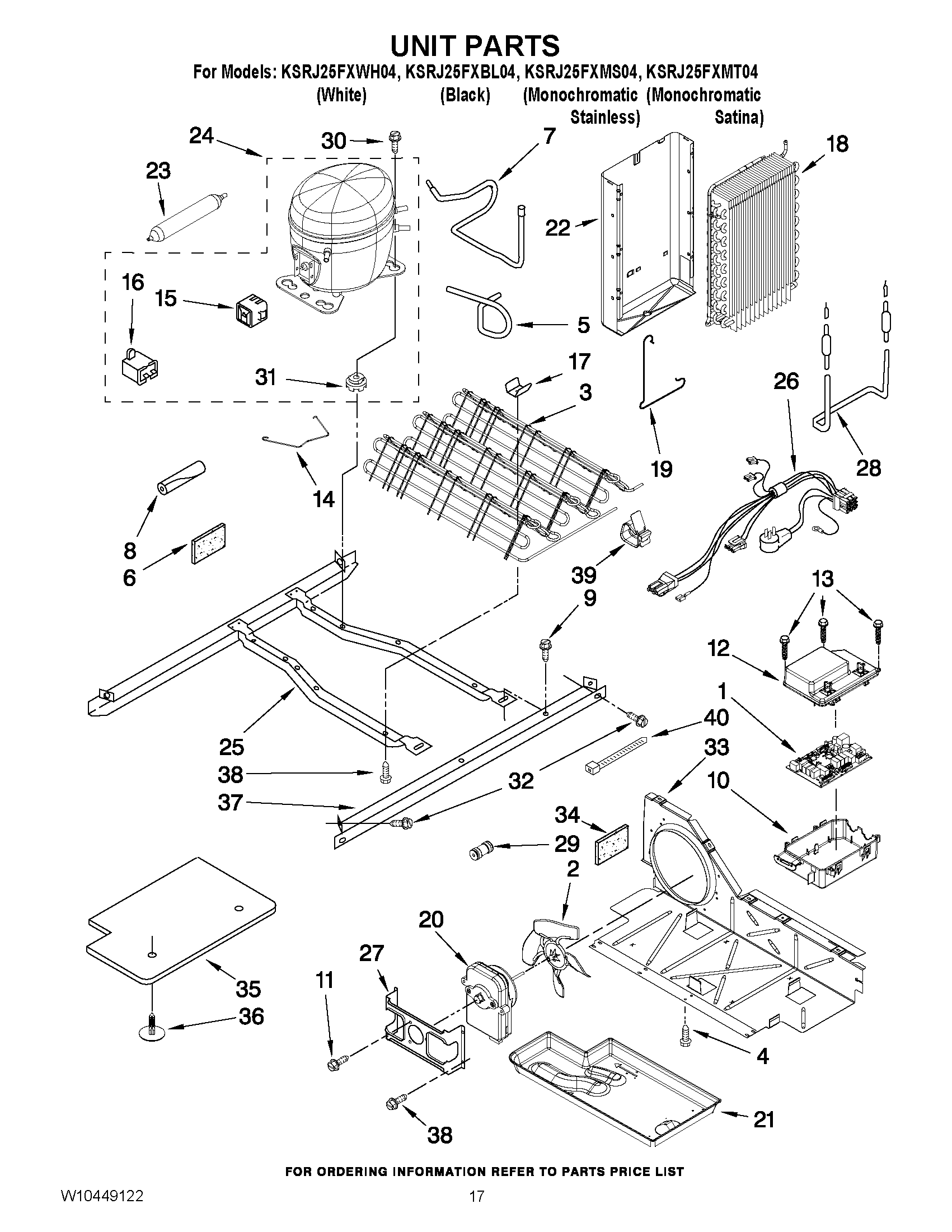

KSRJ25FXBL04 11 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
1	W11088499-includeCORE Whirlpool W11088499 Refrigerator Electric Control Board with Core
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10858105 Whirlpool Refrigerator Tube
6	W11553819 Whirlpool Refrigerator Insulation
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	2323186 Whirlpool Refrigerator Housing
11	WP8533993 Whirlpool Refrigerator Screw
12	W10334855 Whirlpool Refrigerator Cover
13	WPW10171469 Whirlpool Refrigerator Screw
14	W10204187 Whirlpool Refrigerator Retainer
15	WPW10189190 Whirlpool Start Device
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	W10683556 Whirlpool Refrigerator Clip
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	Heat Shield
23	WPW10143759 Whirlpool Dryer Filter
24	W10139462 Whirlpool Refrigerator Compressor
25	2304904 Whirlpool Frame Assembly
26	UNIT, HARNESS
27	WP2181929 Whirlpool Refrigerator Bracket
28	WP2323198 Whirlpool Refrigerator Heater
29	WPW10271543 Whirlpool Refrigerator Connector
31	876811 Whirlpool Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
34	2217070 Whirlpool Foam Kit
35	Unit Cover, Bottom
36	489396 Whirlpool Refrigerator Clip
37	2305374 Whirlpool Refrigerator Unit Rail
38	W11544659 Whirlpool Refrigerator Screw
39	W10812039 Whirlpool Clip
40	WPW10339879 Whirlpool Wire Tie
