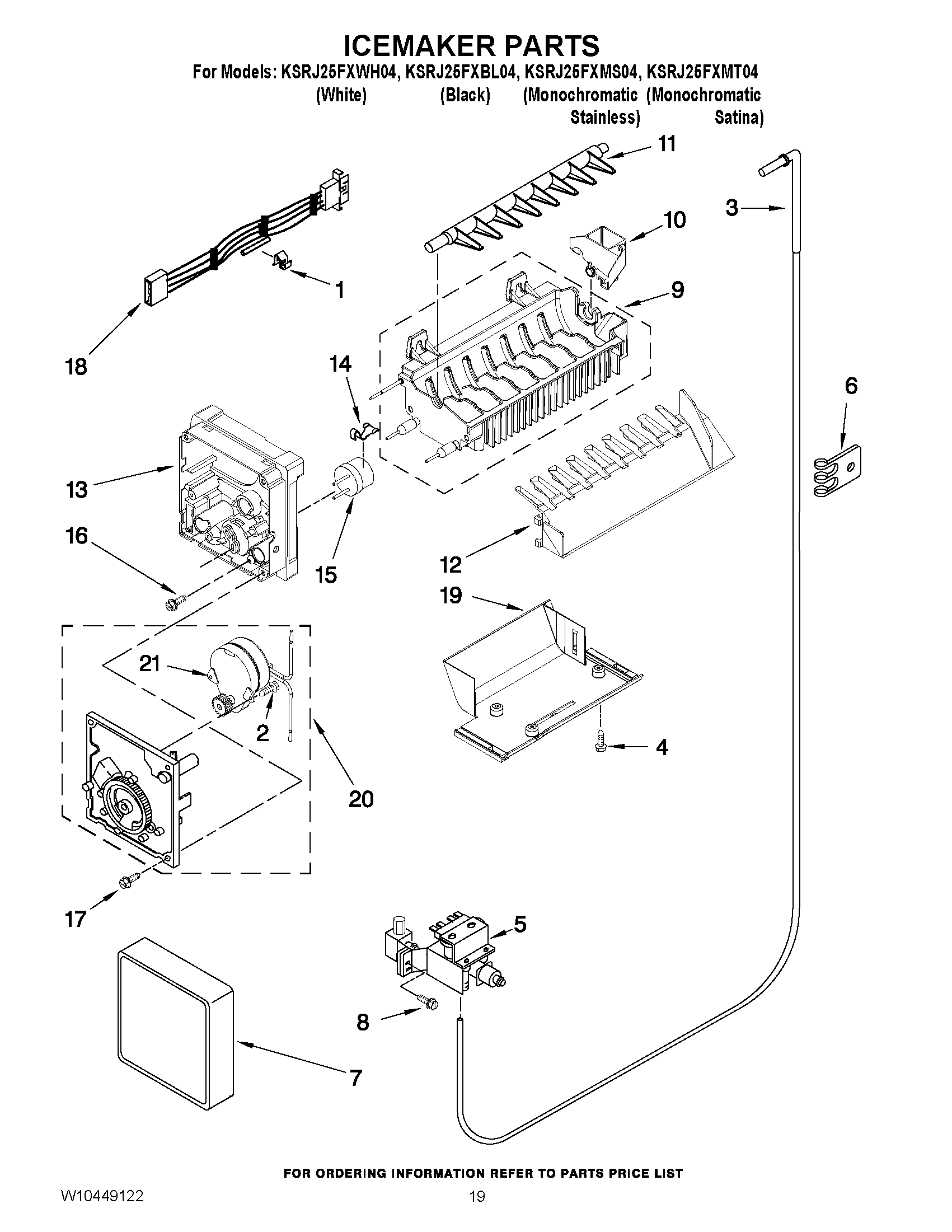

KSRJ25FXBL04 12 – ICEMAKER PARTS

KSRJ25FXBL04 12 – ICEMAKER PARTS

Written by

in

KSRJ25FXBL04 12 – ICEMAKER PARTS

Products

PositionProduct
1WP628379 Whirlpool Refrigerator Clip
2489136 Whirlpool Refrigerator Screw
3Fitting, Water Tube
4WP489478 Whirlpool Refrigerator Screw
5WPW10179146 Whirlpool Refrigerator Water Inlet Valve
6W10562834 Whirlpool Refrigerator Clip
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10300025 Whirlpool Refrigerator Ice Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11W10318914 Whirlpool Refrigerator Ejector Arm
12ICE STRIPPER
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15628532 Whirlpool Refrigerator Thermostat
168533917 Whirlpool Refrigerator Screw
17W10001240 Whirlpool Refrigerator Screw
18W11643622 Whirlpool Wire Harness
19BRACKET, ICEMAKER MOUNTING
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
100W11512152 Whirlpool Ice Maker Assembly
