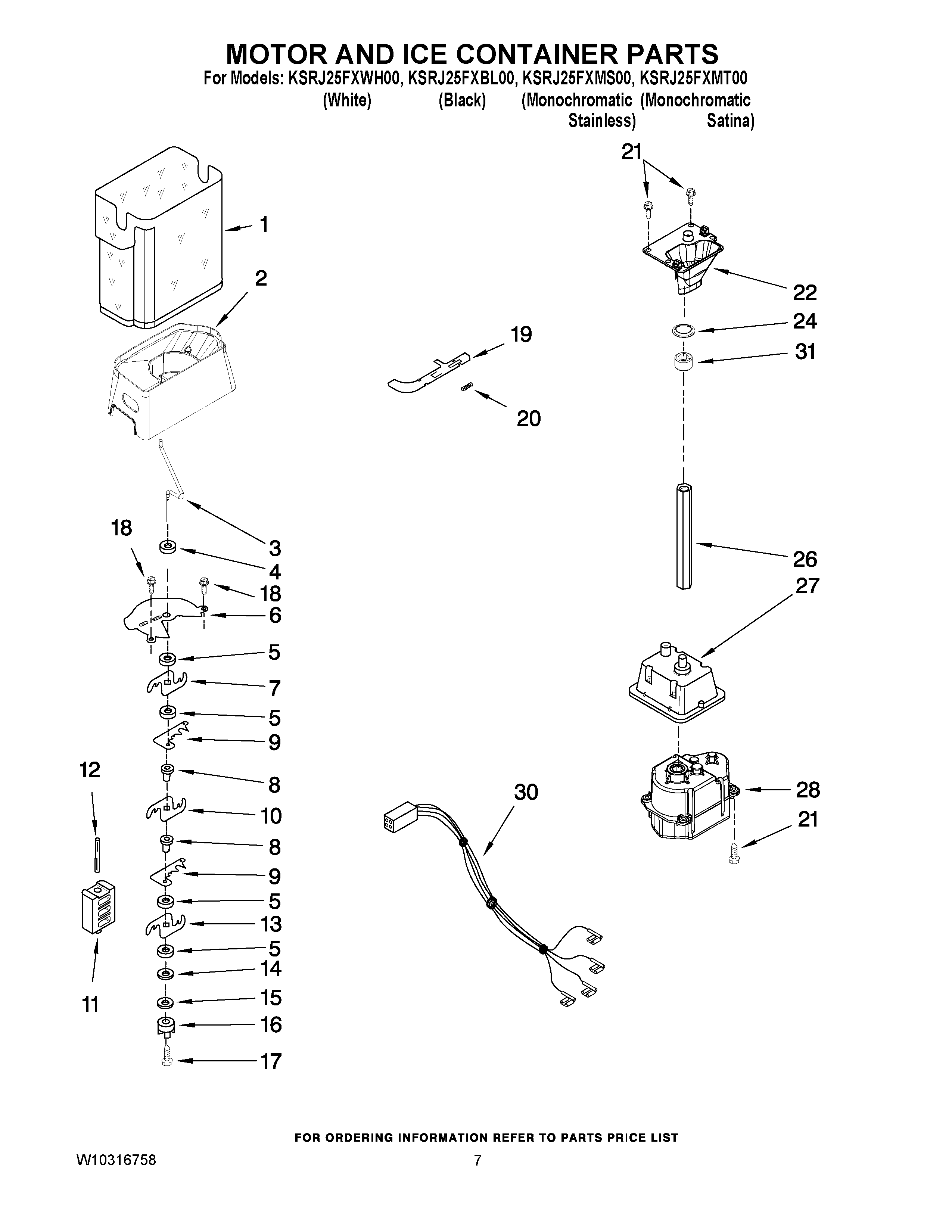

KSRJ25FXMS00 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	ICE BIN
2	CRUSHER BIN
3	AUGER
4	Washer
5	W11032808 Whirlpool Refrigerator Spacer
6	Cover, Crusher
7	W10278731 Whirlpool Refrigerator Blade
8	W10189661 Whirlpool Refrigerator Spacer
9	Blade, Fixed
10	W10278732 Whirlpool Refrigerator Blade
11	W10178238 Whirlpool Blade Block
12	W10166878 Whirlpool Roll Pin
13	W10278733 Whirlpool Refrigerator Blade
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	W11629923 Whirlpool Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	LATCH, BIN
20	WP2198608 Whirlpool Refrigerator Spring
21	WP8281163 Whirlpool Refrigerator Screw
22	PLATE, MTG
24	WP2198628 Whirlpool Door Seal
26	DRIVE SHAFT
27	W11678273 Whirlpool Bracket
28	W10822606 Whirlpool Dishwasher Dispenser Motor
30	W10295559 Whirlpool Refrigerator Dispenser Harness
31	SLEEVE, COUPLING
100	ICE CONTAINER (COMPLETE)
