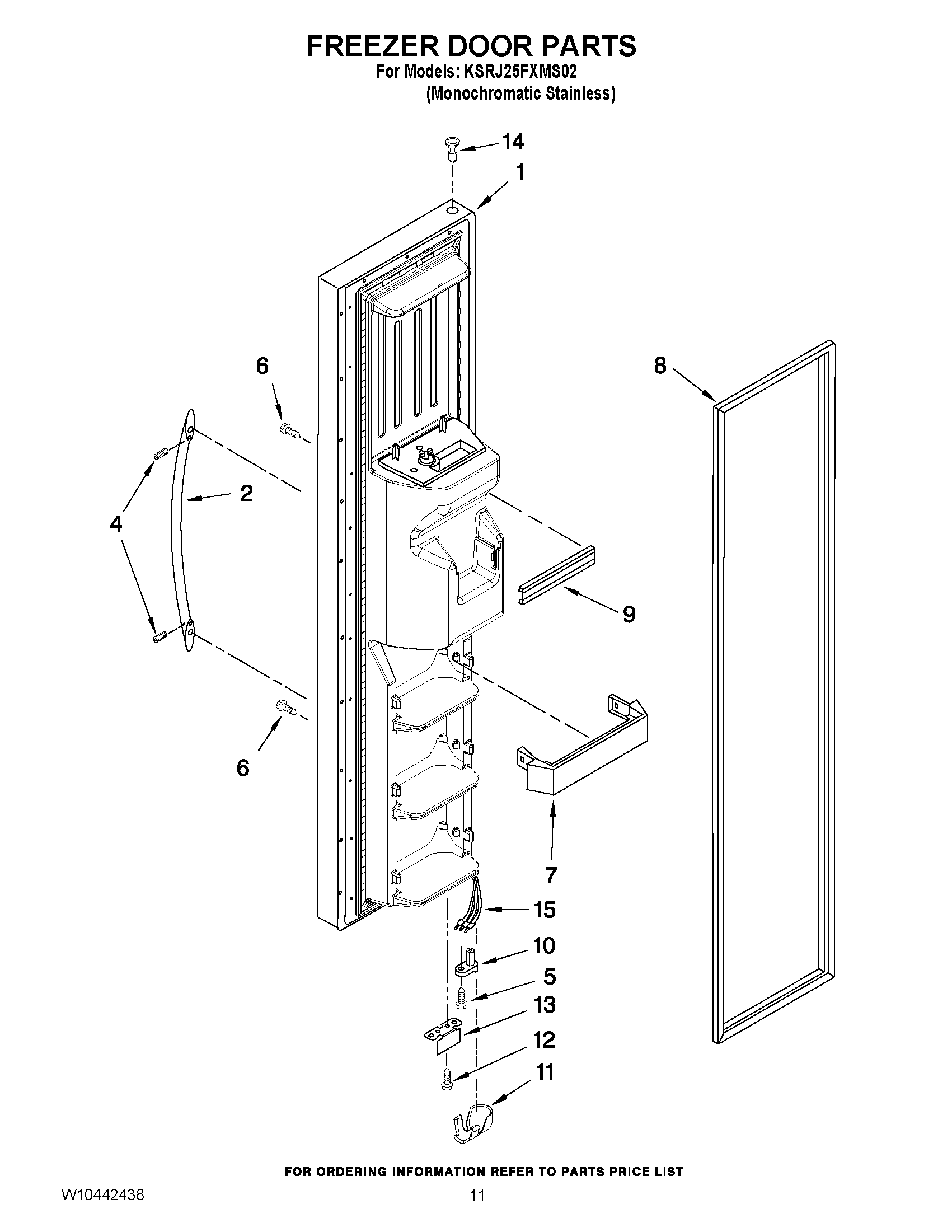

KSRJ25FXMS02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
2Handle, Door (Stainless Steel)
4SCREW
5WP3400012 Whirlpool Refrigerator Screw
6WPW10170540 Whirlpool Screw
7Trivet (4)
8W10136735 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10Door Closer, Upper Cam
112323581 Whirlpool Refrigerator Tube Cover
12WP489483 Whirlpool Screw
13W10219810 Whirlpool Bracket
14WP2182181 Whirlpool Refrigerator Thimble
15WIRE ASSY, DOOR
