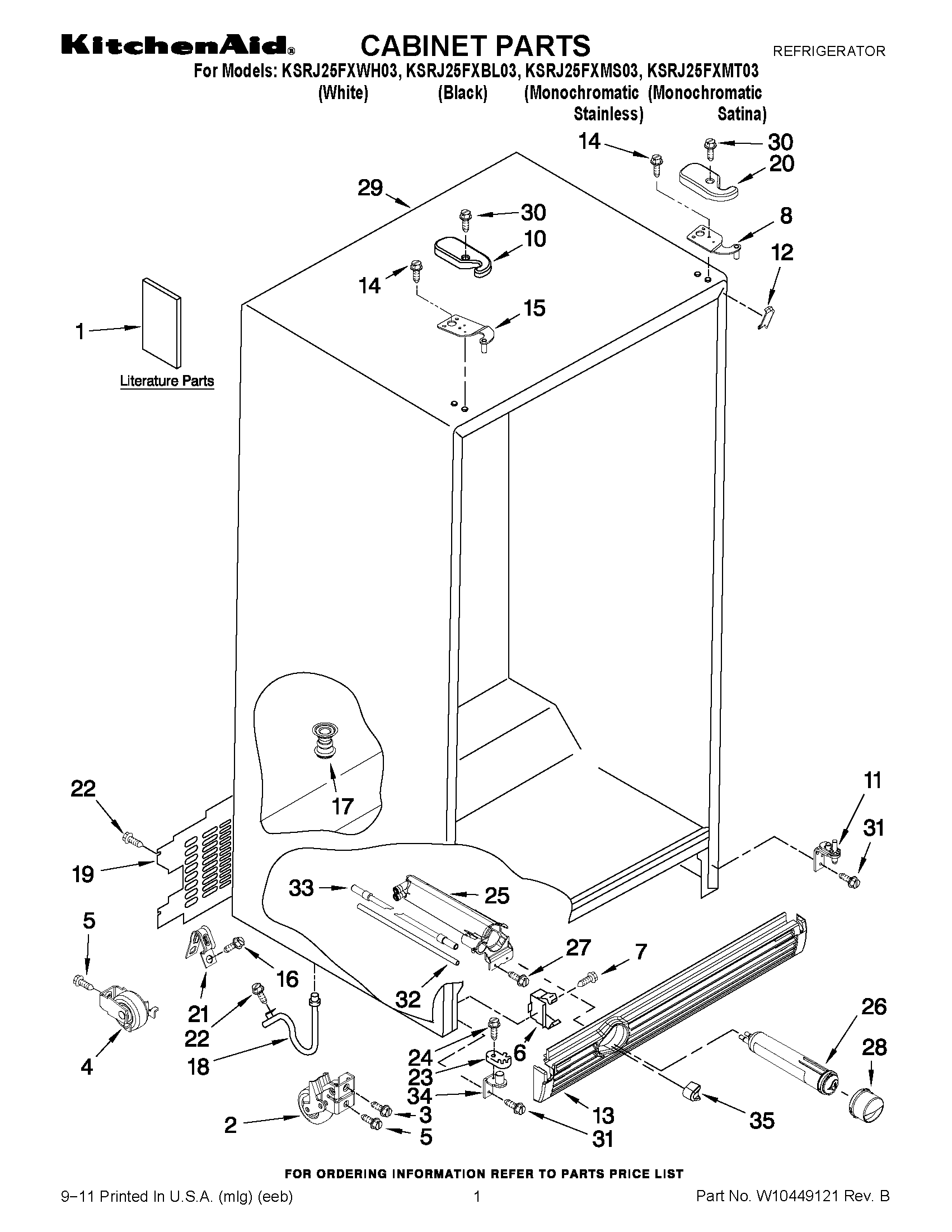

KSRJ25FXMS03 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
1	ENERGY GUIDE
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	W10242649 Whirlpool Refrigerator Door Hinge
10	HINGE COVER, RC (APOLLO GREY)
10	HINGE COVER (RC) (BLACK)
10	HINGE COVER (RC) (WHITE)
11	ADJUSTABLE HINGE CAM ASSY
12	Filler, Wrapper (Black)
12	Filler, Wrapper (White)
12	Filler, Wrapper (Apollo Grey)
13	WPW10184888 Whirlpool Refrigerator Grille
13	WPW10184890 Whirlpool Refrigerator Grille
13	WPW10311032 Whirlpool Refrigerator Grille
14	WP489497 Whirlpool Screw
15	HINGE, TOP (FC)
16	WP489464 Whirlpool Refrigerator Screw
17	W11566763 Whirlpool Fitting
18	W11512417 Whirlpool Drain Connector
19	WP2188755 Whirlpool Rear Panel
20	HINGE COVER (FC) (WHITE)
20	HINGE COVER, FC APOLLO GREY
20	HINGE COVER (FC) (BLACK)
21	549193 Whirlpool Refrigerator Power Clamp
22	SCREW
23	WP2223751 Whirlpool Refrigerator Door Cam
24	WP489483 Whirlpool Screw
25	WPW10121138 Whirlpool Refrigerator Water Filter Housing
26	FILTER 3-SINGLE TEAL
27	WP489500 Whirlpool Refrigerator Screw
28	WP2260518MG Whirlpool Water Filter Cap
28	WP2260518B Whirlpool Water Filter Cap
28	WP2260518W Whirlpool Refrigerator Filter Cap
29	CABINET (NOT A SERVICEABLE PART)
30	WP8281227 Whirlpool Screw
32	WPW10350006 Whirlpool Refrigerator Water Tube
33	TUBE, FILTER INLET
34	2303141 Whirlpool Refrigerator Door Hinge
35	2260503MG Whirlpool Refrigerator Button
35	2260503W Whirlpool Refrigerator Button
35	WP2260503B Whirlpool Refrigerator Button
