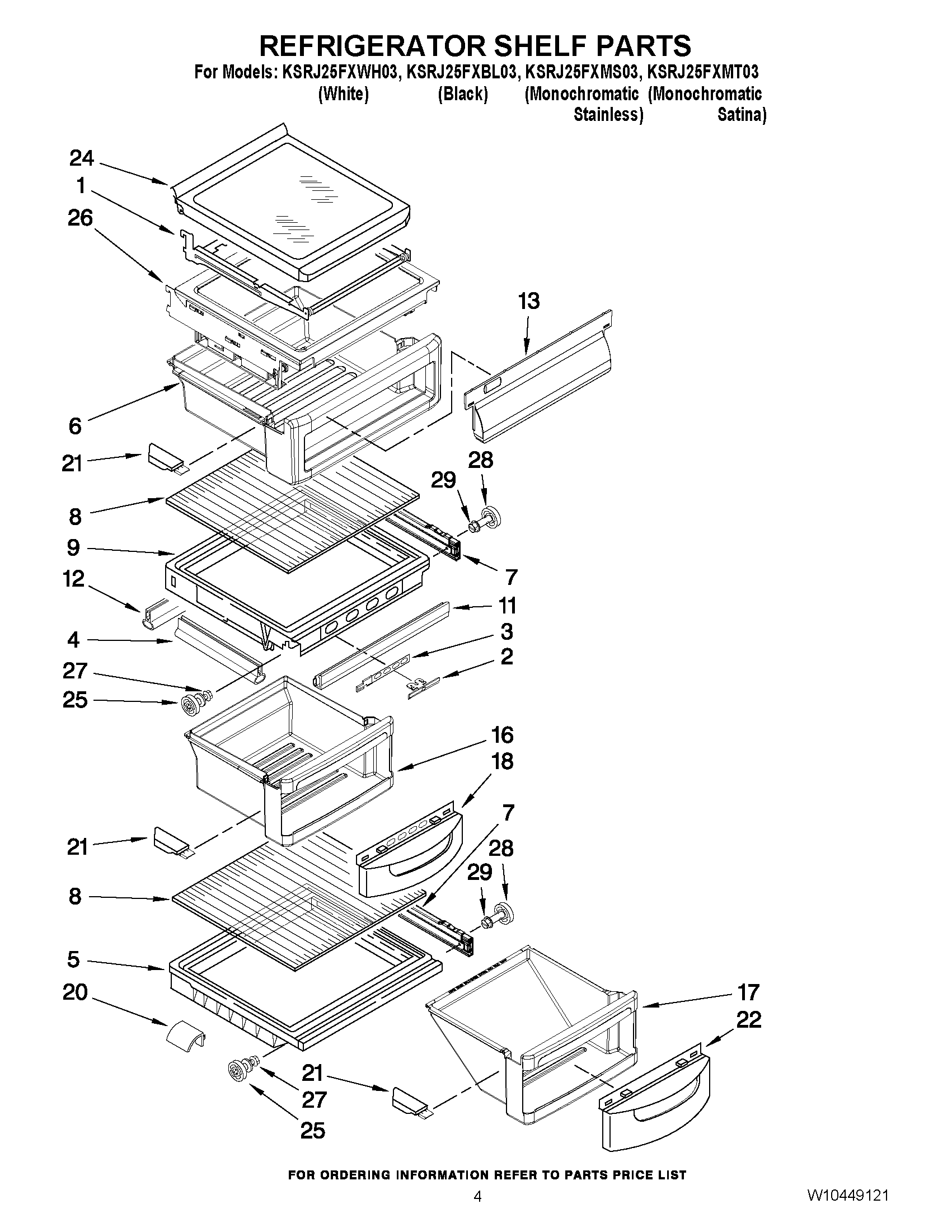

KSRJ25FXMS03 03 – REFRIGERATOR SHELF PARTS

KSRJ25FXMS03 03 – REFRIGERATOR SHELF PARTS

Written by

in

KSRJ25FXMS03 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame, Shelf
2Knob, Humidity
32301026 Whirlpool Refrigerator Slide
42301117 Whirlpool Refrigerator Gasket
5Cover, Meat Pan (Includes 20 & 24)
6Snack Bin
7Glide Assm-Pan (Left Side)
72301548 Whirlpool Refrigerator Glide
8Glass, Meat Pan Cover
9Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, Rear
13Window, Snack Pan
16W10916292 Whirlpool Refrigerator Crisper Pan
17Meat Pan (Includes 13, 14, 19 & 22)
18Window, Crisper
20Deflector
21Cap, Crisper Pan (Right Side)
21Cap, Crisper Pan (Left Side)
22Window, Meat Pan
24WPW10141748 Whirlpool Refrigerator Glass Shelf
25W11223328 Whirlpool Refrigerator Shelf Stud
26Shelf Assembly
27WP3-24004-109 Whirlpool Refrigerator Screw
28W11527119 Whirlpool Refrigerator Shelf Stud
29WPW10191952 Whirlpool Refrigerator Screw
