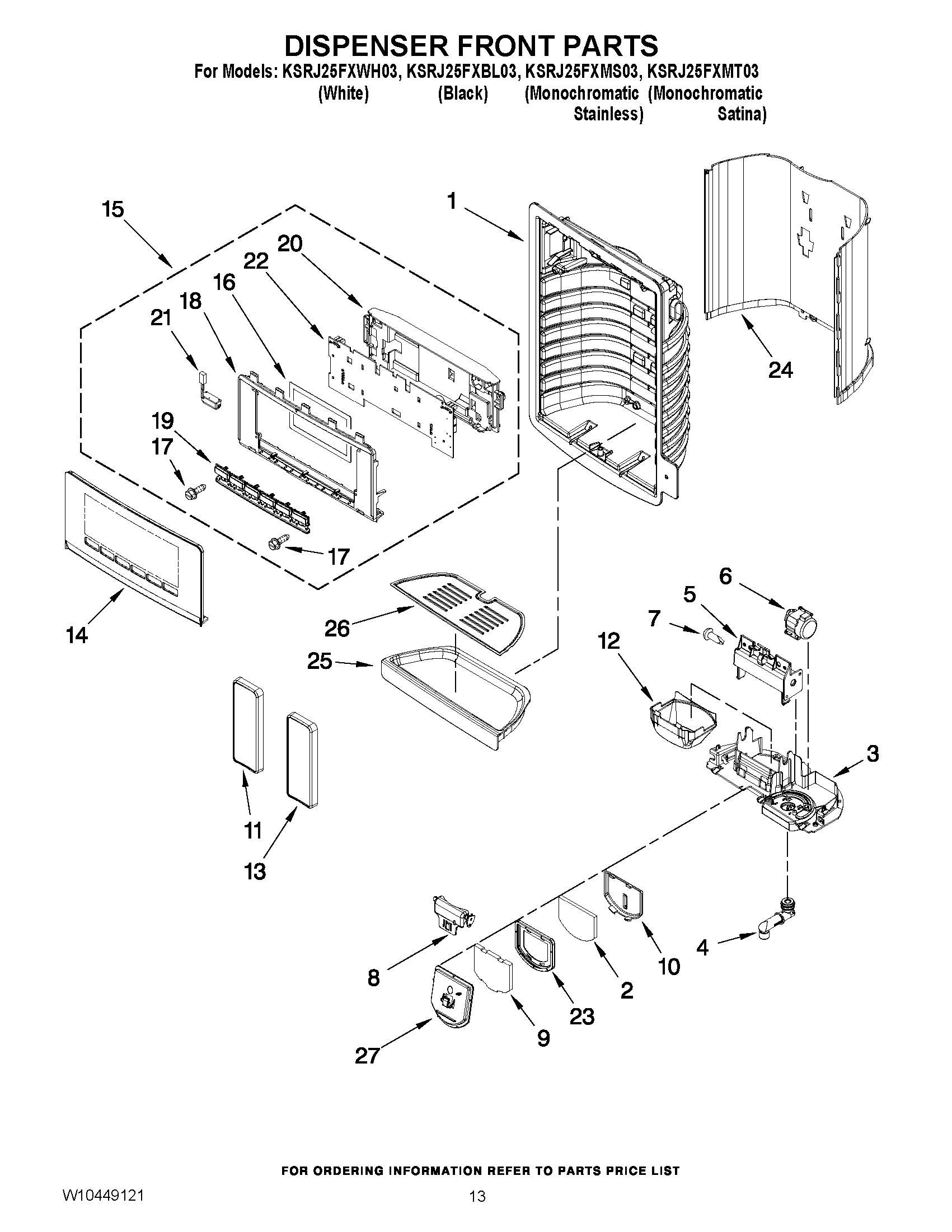

KSRJ25FXMS03 08 – DISPENSER FRONT PARTSadmin2025-04-26T11:56:34+00:00KSRJ25FXMS03 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | CABINET (NOT A SERVICEABLE PART) |
| 2 | WPW10331454 Whirlpool Refrigerator Insulation |
| 3 | SEPARATOR, FIXED |
| 4 | SPIGOT-BODY ASSY |
| 5 | W10174827 Whirlpool Refrigerator Bracket |
| 6 | WPW10205978 Whirlpool Motor |
| 7 | W10174818 Whirlpool Refrigerator Clip |
| 8 | WPW10346124 Whirlpool Refrigerator Support |
| 9 | WPW10331456 Whirlpool Refrigerator Insulation |
| 10 | WPW10317279 Whirlpool Refrigerator Door Chute |
| 11 | PAD, ICE DISPENSER (BLACK) |
| 11 | PAD, ICE DISPENSER (WHITE) |
| 11 | WPW10368730 Whirlpool Refrigerator Pad |
| 12 | WPW10435760 Whirlpool Refrigerator Ice Guide |
| 13 | PAD, WATER DISPENSER (WHITE) |
| 13 | PAD, WATER DISPENSER (BLACK) |
| 13 | PAD, WATER DISPENSER (APOLLO GRAY) |
| 14 | FASCIA ASSY (WHITE) |
| 14 | FASCIA ASSY (BLACK) |
| 14 | FASCIA ASSY (STAINLESS) |
| 15 | UI ASSY, STEALTH |
| 16 | BARRIER, MOISTURE |
| 17 | WP3400906 Whirlpool Refrigerator Screw |
| 18 | FRAME, FASCIA |
| 19 | TREE, BUTTON |
| 20 | W10254277 Whirlpool Cover Assembly |
| 21 | W11290115 Whirlpool Refrigerator Light |
| 22 | CTRL-ELEK, STEALTH |
| 23 | WPW10317282 Whirlpool Refrigerator Door Gasket |
| 24 | FALSE WALL (STAINLESS) |
| 24 | FALSE WALL (WHITE) |
| 24 | FALSE WALL (BLACK) |
| 25 | DRIP TRAY (STAINLESS) |
| 25 | DRIP TRAY (BLACK) |
| 25 | DRIP TRAY (WHITE) |
| 26 | GRATE, DRIP TRAY (BLACK) |
| 26 | GRATE, DRIP TRAY (WHITE) |
| 26 | GRATE, DRIP TRAY (STAINLESS) |
| 27 | W10339582 Whirlpool Refrigerator Clip |
