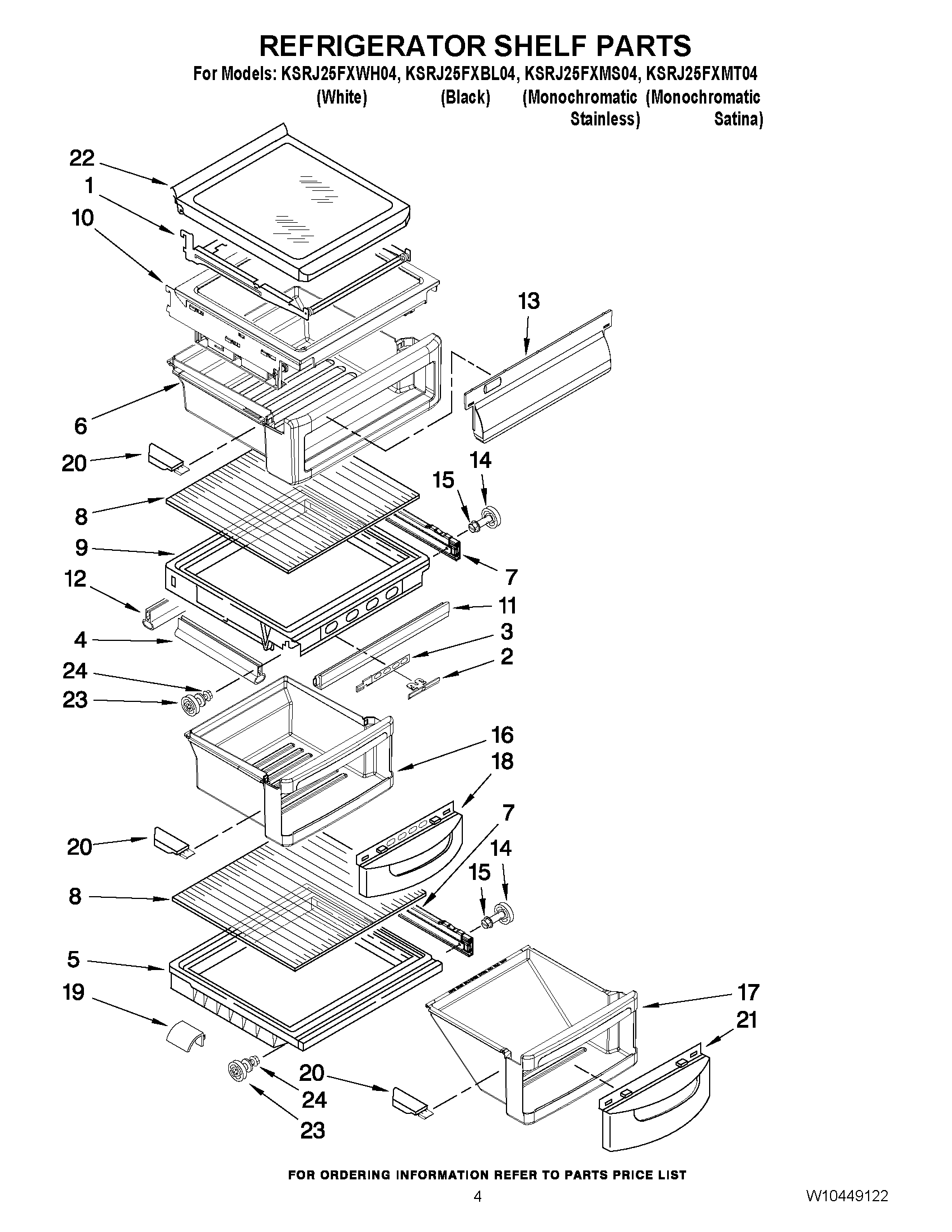

KSRJ25FXMS04 03 – REFRIGERATOR SHELF PARTS

KSRJ25FXMS04 03 – REFRIGERATOR SHELF PARTS

Written by

in

KSRJ25FXMS04 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame, Shelf
2Knob, Humidity
32301026 Whirlpool Refrigerator Slide
42301117 Whirlpool Refrigerator Gasket
5Cover, Meat Pan (Includes 20 & 24)
6Snack Bin
7Glide Assm-Pan (Left Side)
72301548 Whirlpool Refrigerator Glide
8Glass, Meat Pan Cover
9Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10Shelf Assembly
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, Rear
13Window, Snack Pan
14W11527119 Whirlpool Refrigerator Shelf Stud
15WPW10191952 Whirlpool Refrigerator Screw
16W10916292 Whirlpool Refrigerator Crisper Pan
17Meat Pan (Includes 13, 14, 19 & 22)
18Window, Crisper
19Deflector
20Cap, Crisper Pan (Left Side)
20Cap, Crisper Pan (Right Side)
21Window, Meat Pan
22WPW10141748 Whirlpool Refrigerator Glass Shelf
23W11223328 Whirlpool Refrigerator Shelf Stud
24WP3-24004-109 Whirlpool Refrigerator Screw
