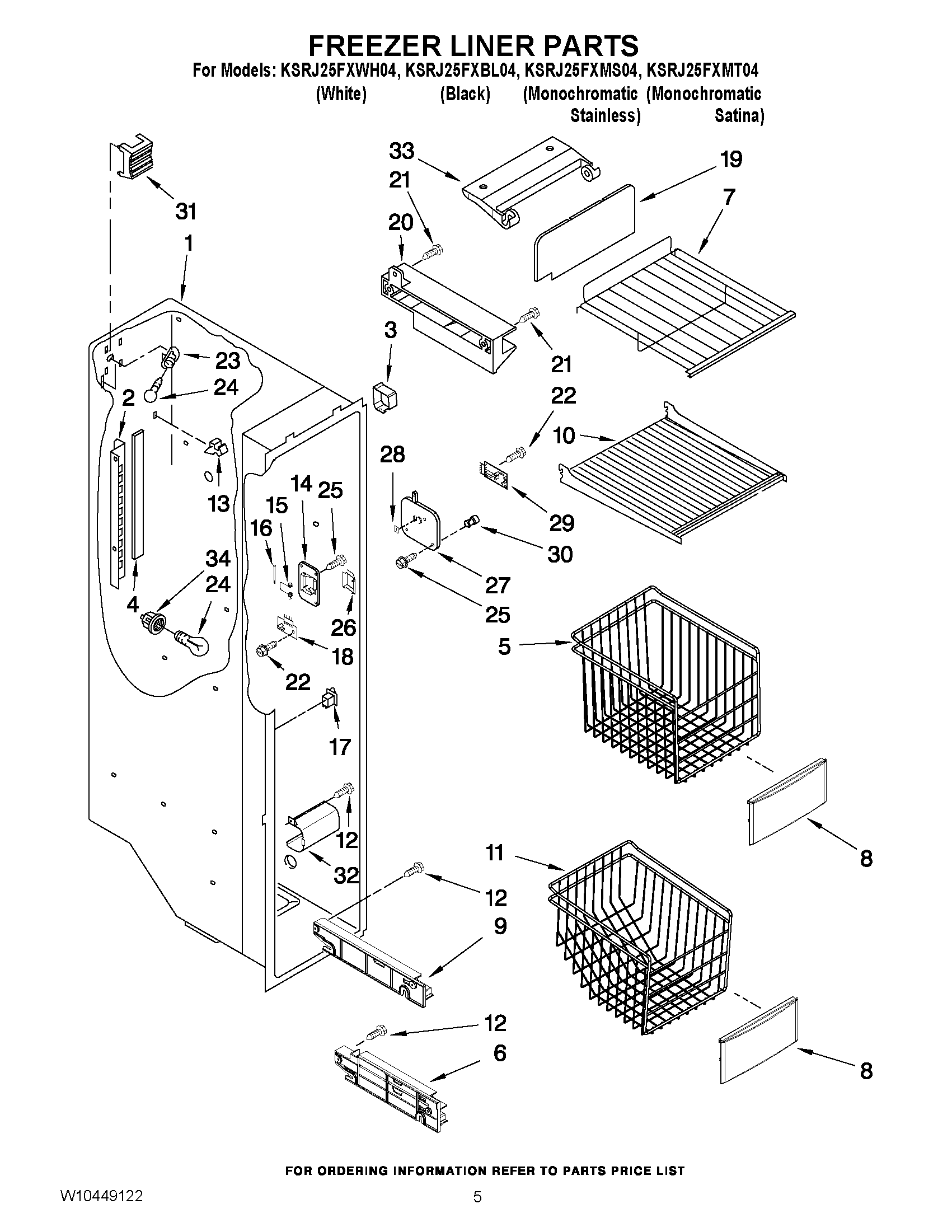

KSRJ25FXMS04 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Ladder (Right Side)
2	Ladder (Left Side)
3	2303234 Whirlpool Refrigerator Shield
4	Gasket
5	Basket, Deep
6	Track, Basket-Dual (Left)
6	2301293 Whirlpool Refrigerator Track
7	Shelf, Slide Out Upper
8	Front, Assembly Basket
9	Shelf Track (Right Side)
9	Shelf Track (Left Side)
10	Shelf (2)
11	Basket, Sloped
12	W10759522 Whirlpool Screw
13	2215823 Whirlpool Refrigerator Clip
14	WP2198587 Whirlpool Refrigerator Cover
15	WP2198635 Whirlpool Refrigerator Spring
16	WP2198634 Whirlpool Door Pin
17	W11457217 Whirlpool Refrigerator Rocker Switch Combination
18	W10757851-includeCORE Whirlpool Electronic Control+Core
19	WP2255720 Whirlpool Refrigerator Ice Maker Door
20	Slide, Ice Maker
21	WP489478 Whirlpool Refrigerator Screw
22	2006254 Whirlpool Refrigerator Screw
23	4387478 Whirlpool Refrigerator Light Socket
24	W11679940 Whirlpool Refrigerator Light Bulb Assembly
25	WPW10142283 Whirlpool Refrigerator Screw
26	WP2198633 Whirlpool Refrigerator Flipper
27	Cover, Receiver
28	2315398 Whirlpool Refrigerator Slide
29	P.C. BOARD, RECEIVER
30	WP2198643 Whirlpool Refrigerator Lens
31	Light Shield
32	Light Lens
33	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
34	SOCKET
