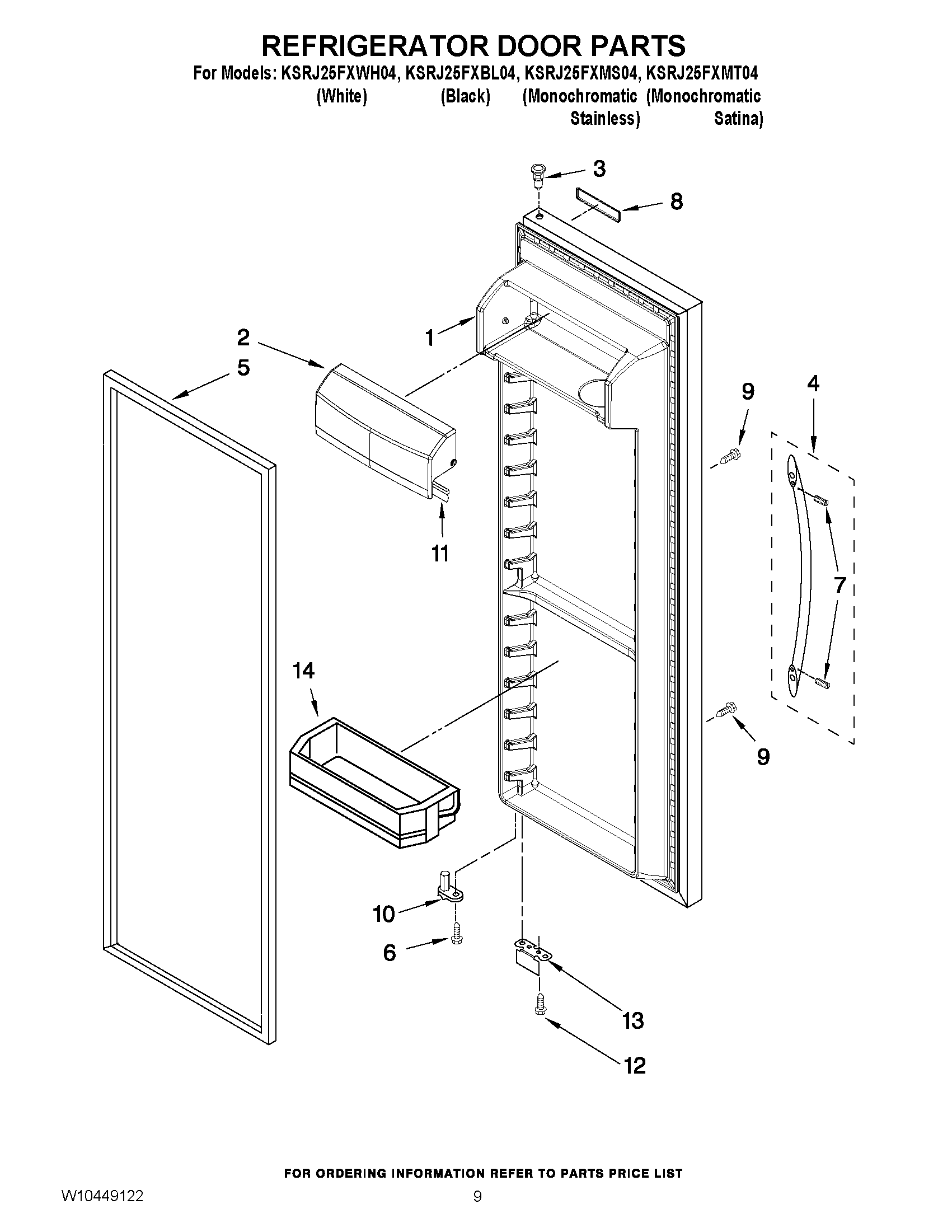

KSRJ25FXMS04 06 – REFRIGERATOR DOOR PARTS

KSRJ25FXMS04 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRJ25FXMS04 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.7) (MONO SATINA)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
2Door, Compartment
3WP2182181 Whirlpool Refrigerator Thimble
4Handle, Door (Stainless Steel)
4WP2319727W Whirlpool Refrigerator Handle
4WP2319727B Whirlpool Refrigerator Handle
52159083 Whirlpool Gasket Door
5WPW10136734 Whirlpool Refrigerator Door Gasket
52159075 Whirlpool Door Gasket Seal
6WP3400012 Whirlpool Refrigerator Screw
7SCREW
7WPW10010150 Whirlpool Refrigerator Screw
8WPW10243391 Whirlpool Refrigerator Nameplate
8WPW10243393 Whirlpool Dishwasher Nameplate
8WPW10243392 Whirlpool Dishwasher Nameplate
9WPW10170540 Whirlpool Screw
10WP2182179 Whirlpool Cam Closer
11Gasket, Door Compartment
12WP489483 Whirlpool Screw
13BRACKET, DOOR STOP (WHITE)
13BRACKET, DOOR STOP (BLACK)
14WP2223434K Whirlpool Refrigerator Door Shelf Bin
