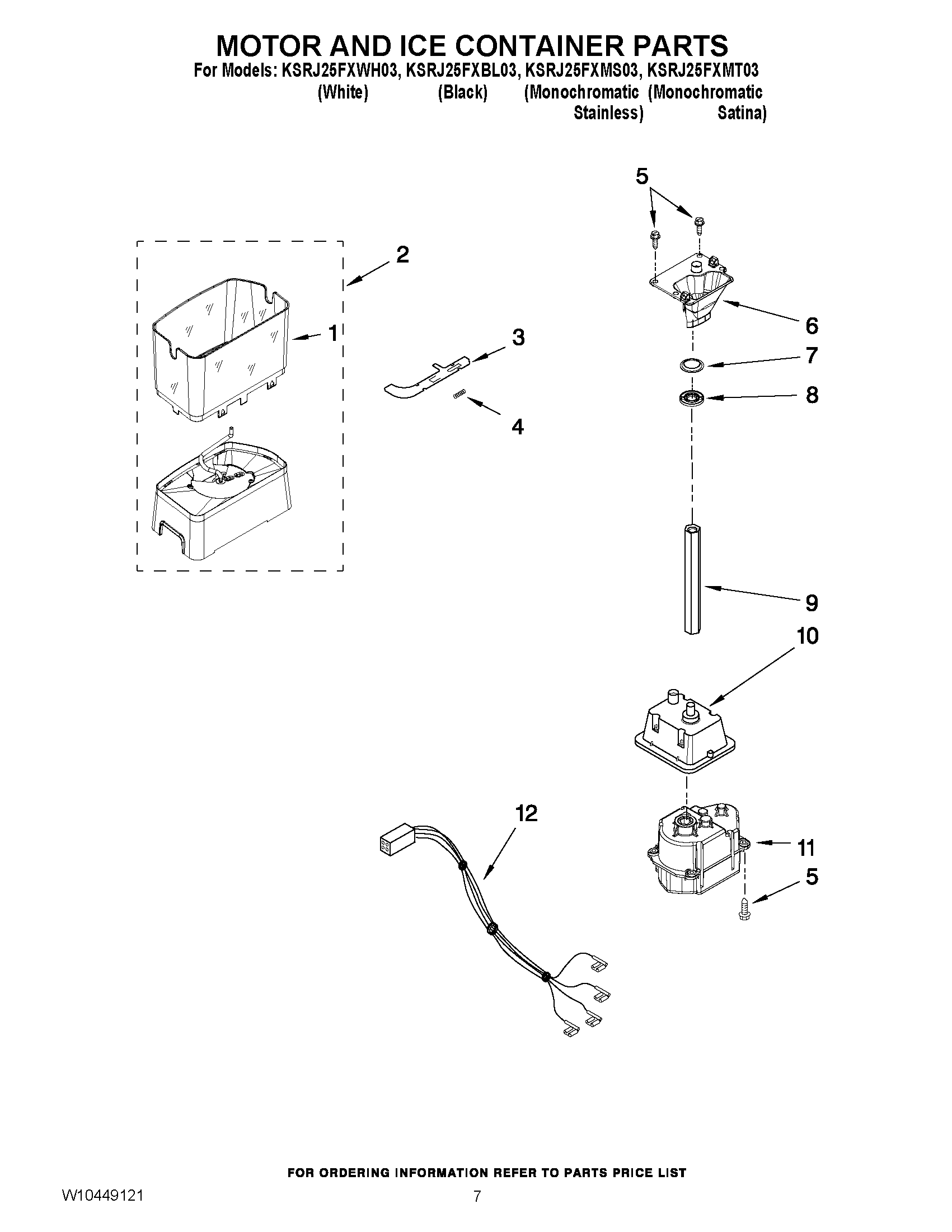

KSRJ25FXMT03 05 – MOTOR AND ICE CONTAINER PARTS

KSRJ25FXMT03 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSRJ25FXMT03 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1ICE BIN UPPER
2ICE CONTAINER ASSY (COMPLETE) (INCLUDES ITEMS 3 & 4)
3LATCH, BIN
4WP2198608 Whirlpool Refrigerator Spring
5WP8281163 Whirlpool Refrigerator Screw
6PLATE, MTG
7WP2198628 Whirlpool Door Seal
8SLEEVE, COUPLING
9DRIVE SHAFT
10W11678273 Whirlpool Bracket
11W10822606 Whirlpool Dishwasher Dispenser Motor
12W10295559 Whirlpool Refrigerator Dispenser Harness
