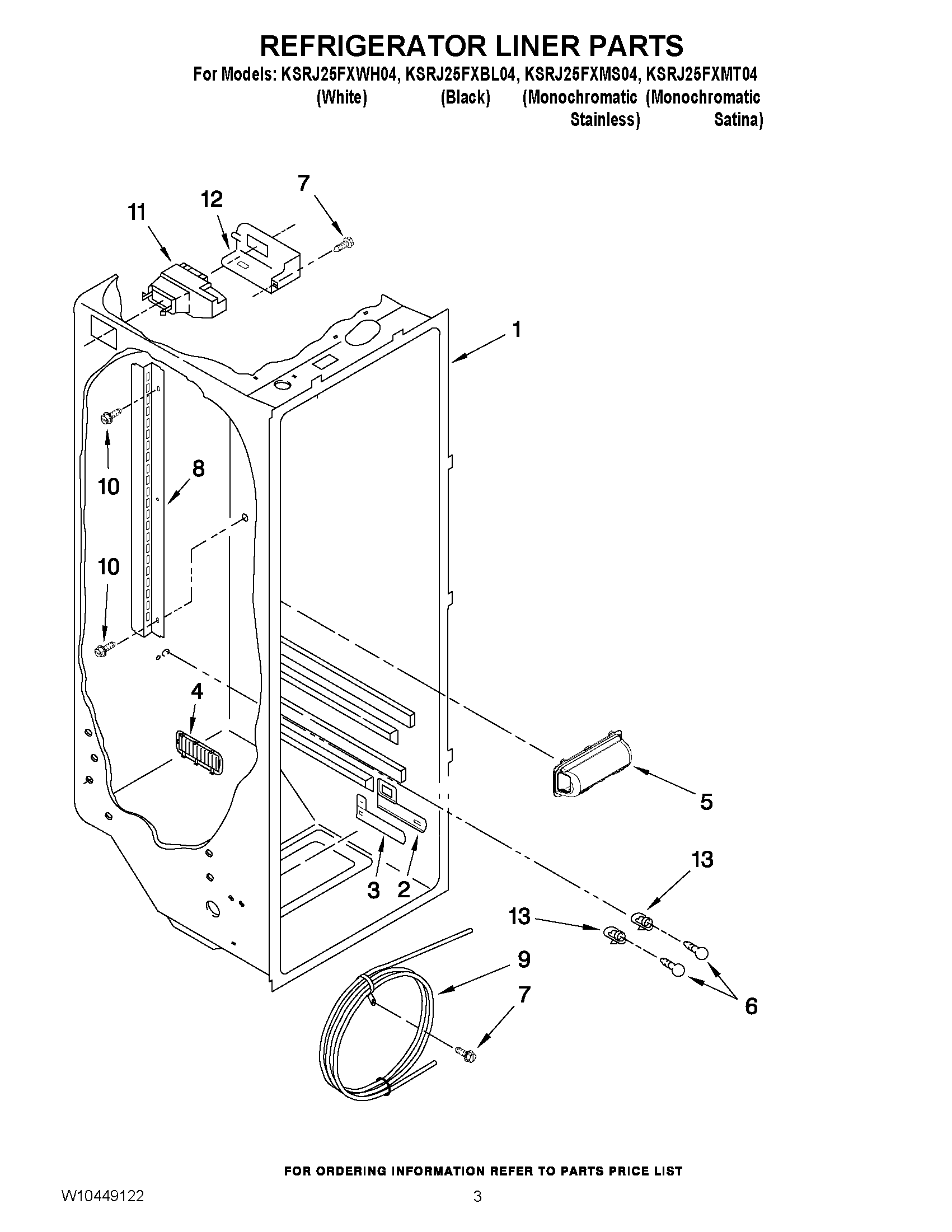

KSRJ25FXWH04 02 – REFRIGERATOR LINER PARTS

KSRJ25FXWH04 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRJ25FXWH04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6W11679940 Whirlpool Refrigerator Light Bulb Assembly
7W10141518 Whirlpool Refrigerator Screw
8Shelf Ladder
9RESERVOIR
10WP489478 Whirlpool Refrigerator Screw
11W10899382 Whirlpool Damper Control Assembly
12W10128735 Whirlpool Refrigerator Cover
134387478 Whirlpool Refrigerator Light Socket
