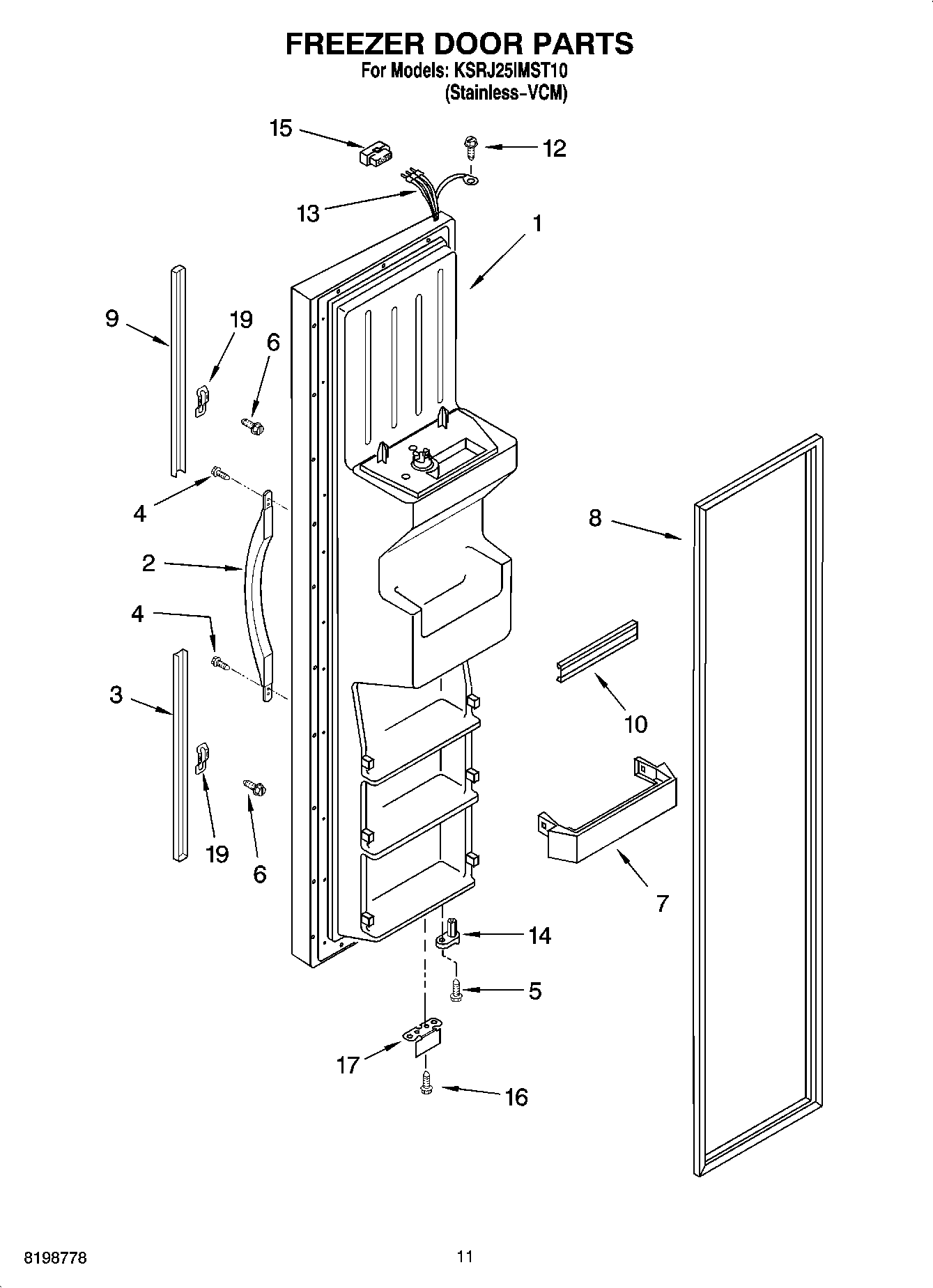

KSRJ25IMST10 07 – FREEZER DOOR PARTS

KSRJ25IMST10 07 – FREEZER DOOR PARTS

Written by

in

KSRJ25IMST10 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless-VCM)
2WP2217185B Whirlpool Refrigerator Handle
3Trim, Door-Bottom (Black)
4WP489491 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP3400852 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
9Trim, Door-Top (Black)
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Dispenser Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop
19WP2195327 Whirlpool Refrigerator Clip
