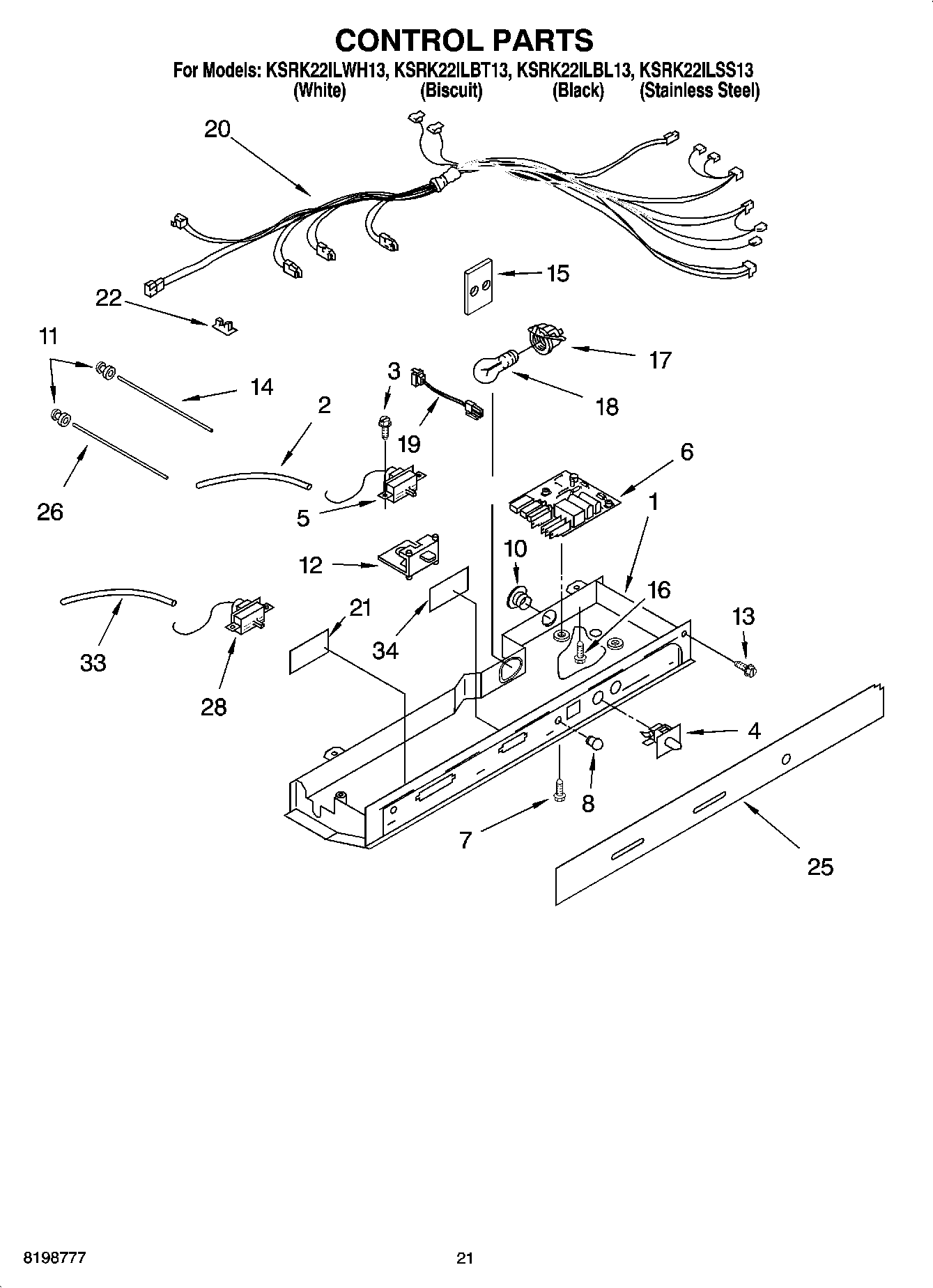

KSRK22ILBT13 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI98400A1
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
WPL ARI98399A4
Ice Crusher Mechanism Assembly
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI98398A5
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI98397A2
833938 Whirlpool Refrigerator Terminal
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
WPL ARI98401A9
WPW10312301 Whirlpool Refrigerator Ice Container
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2161460 Whirlpool Refrigerator Thermostat
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7489392 Whirlpool Refrigerator Screw
8COVER, LIGHT LENS
10940014 Whirlpool Refrigerator Primary Button Plug
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
152172931 Whirlpool Refrigerator Shield
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18RANGE ONLY 40W 120V APPL BULB
19W10853646 Whirlpool Indicator Light
20Harness, Control Box
21Window
22CLIP, WIRING
25Escutcheon, Control Box
26Light Bar (FC)
28WP2182770 Whirlpool Refrigerator Thermostat
342172940 Whirlpool Window
