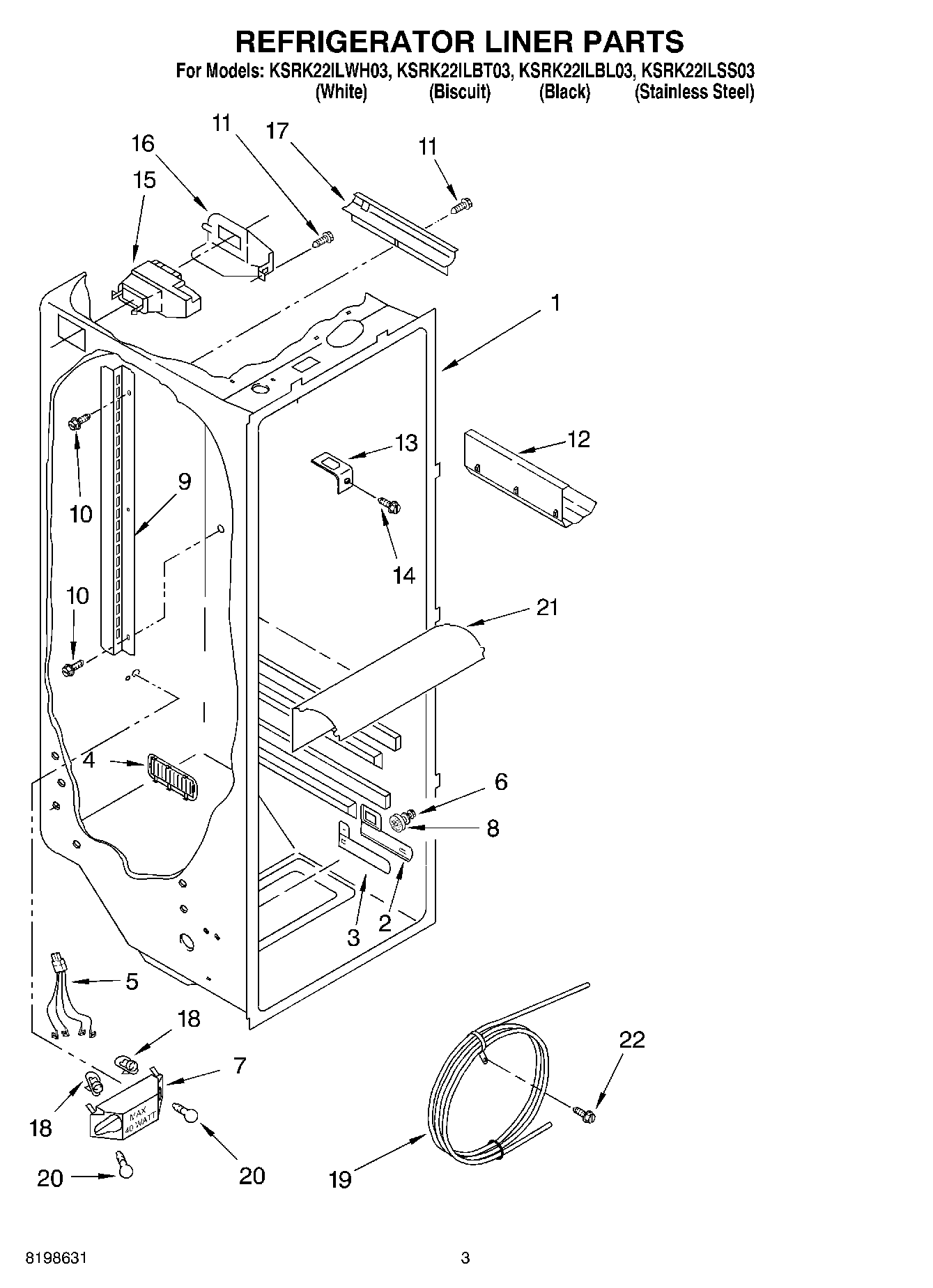

KSRK22ILSS03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	2311637 Whirlpool Refrigerator Wire Harness
6	WP3-24004-109 Whirlpool Refrigerator Screw
7	Bracket, Dual Crisper Light
8	W11223328 Whirlpool Refrigerator Shelf Stud
9	Shelf Ladder
10	WP488729 Whirlpool Refrigerator Door Screw
11	W10759522 Whirlpool Screw
12	W10777924 Whirlpool Refrigerator Wine Rack
13	WP2256085 Whirlpool Refrigerator Retainer
14	WP488488 Whirlpool Refrigerator Screw
15	WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
16	WP2212240 Whirlpool Refrigerator Cover
17	2150331 Whirlpool Refrigerator Wire Cover
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
