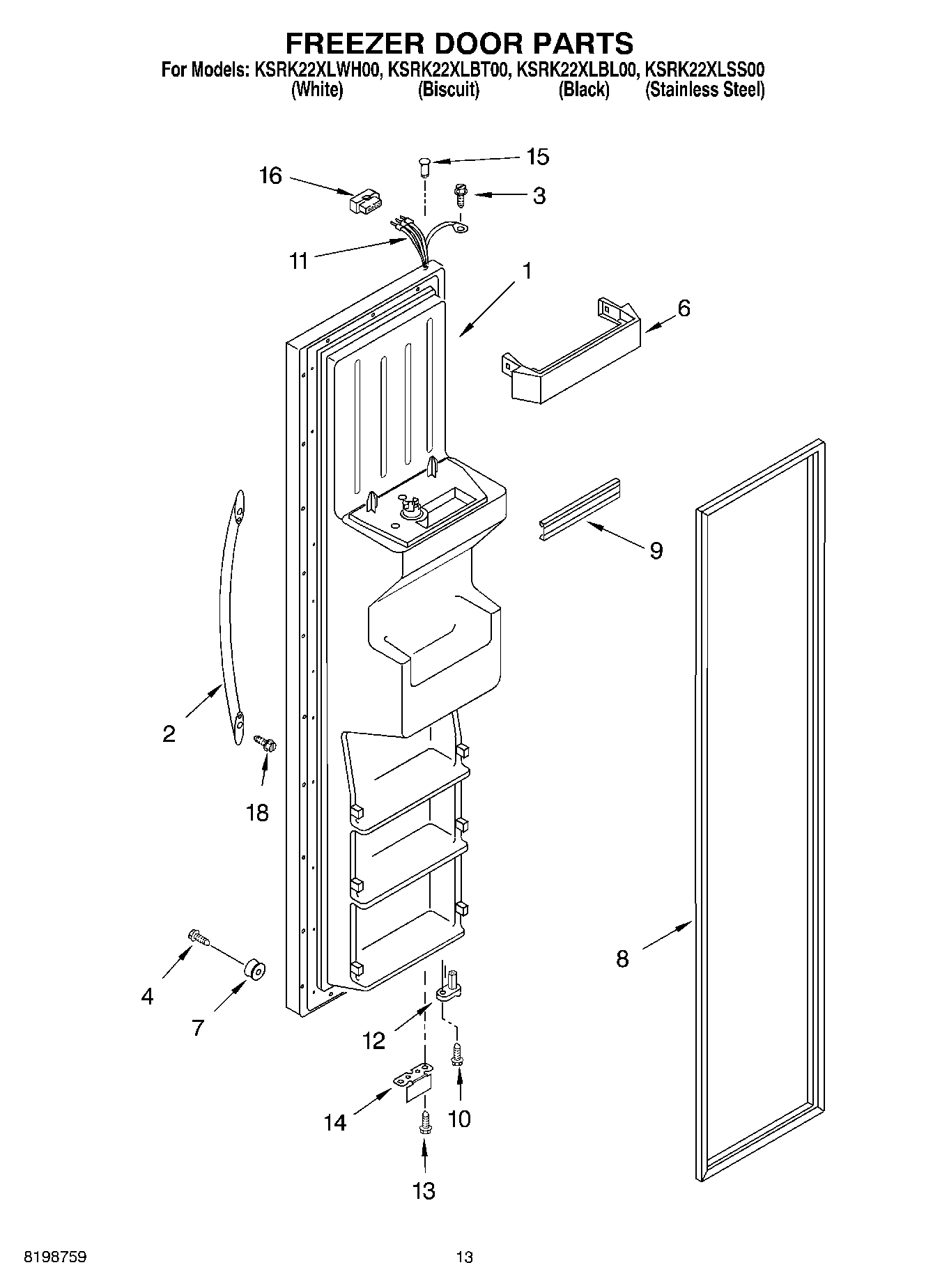

KSRK22XLBL00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Stainless Steel)
2Handle (Black)
2Handle (Biscuit)
2Handle (White)
2Handle (Stainless Steel)
3WP489128 Whirlpool Refrigerator Screw
4WP488163 Whirlpool Refrigerator Screw
6Trivet, Shelf (4)
7Stud, Handle
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP2182181 Whirlpool Refrigerator Thimble
16WP2154473 Whirlpool Refrigerator Connector
18Setscrew, 10-32
