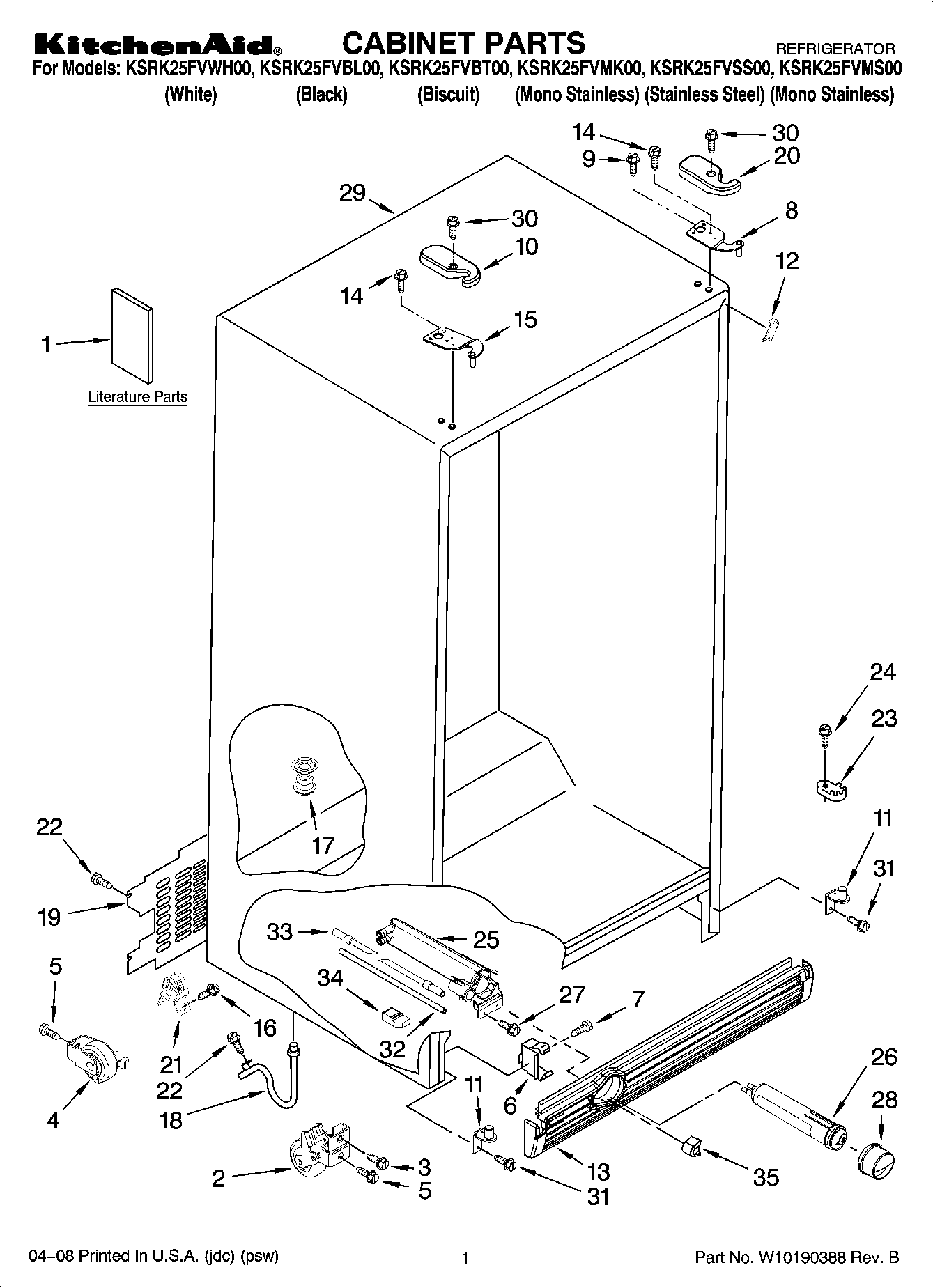

KSRK25FVBL00 01 – CABINET PARTS

KSRK25FVBL00 01 – CABINET PARTS

Written by

in

KSRK25FVBL00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489128 Whirlpool Refrigerator Screw
8WP2203771 Whirlpool Refrigerator Door Hinge
9W10853301 Whirlpool Refrigerator Screw
10Hinge Cover (RC) (Black)
10Hinge Cover (RC) (White)
10Hinge Cover (RC) (Biscuit)
10Hinge Cover (RC) (Apollo Grey)
11W10138965 Whirlpool Refrigerator Door Hinge
12Filler, Wrapper (Biscuit)
12Filler, Wrapper (Black)
12Filler, Wrapper (White)
12Filler, Wrapper (Apollo Grey)
13WPW10184890 Whirlpool Refrigerator Grille
13Grille (Biscuit)
13WPW10311032 Whirlpool Refrigerator Grille
13WPW10184888 Whirlpool Refrigerator Grille
15WP2203770 Whirlpool Refrigerator Door Hinge
16WP489464 Whirlpool Refrigerator Screw
17W11566763 Whirlpool Fitting
18Extension Tube
19WP2188755 Whirlpool Rear Panel
20Hinge Cover (FC) (Black)
20Hinge Cover (FC) (Biscuit)
20Hinge Cover (FC) (Apollo Grey)
20Hinge Cover (FC) (White)
21549193 Whirlpool Refrigerator Power Clamp
23WPW10329686 Whirlpool Door Cam Black
24WP489483 Whirlpool Screw
25WPW10121138 Whirlpool Refrigerator Water Filter Housing
26FILTER 3-SINGLE TEAL
27WP489500 Whirlpool Refrigerator Screw
28WP2260518W Whirlpool Refrigerator Filter Cap
28Cap, Water Filter (Biscuit)
28WP2260518B Whirlpool Water Filter Cap
28WP2260518MG Whirlpool Water Filter Cap
29Cabinet, (Not A Serviceable Part)
30WP8281227 Whirlpool Screw
31WP489497 Whirlpool Screw
32W11496481 Whirlpool Refrigerator Water Tube
338201597 Whirlpool Inlet Water Fill Tube Kit Filter
34Block, Housing Support
352260503MG Whirlpool Refrigerator Button
352260503W Whirlpool Refrigerator Button
35WP2260503B Whirlpool Refrigerator Button
