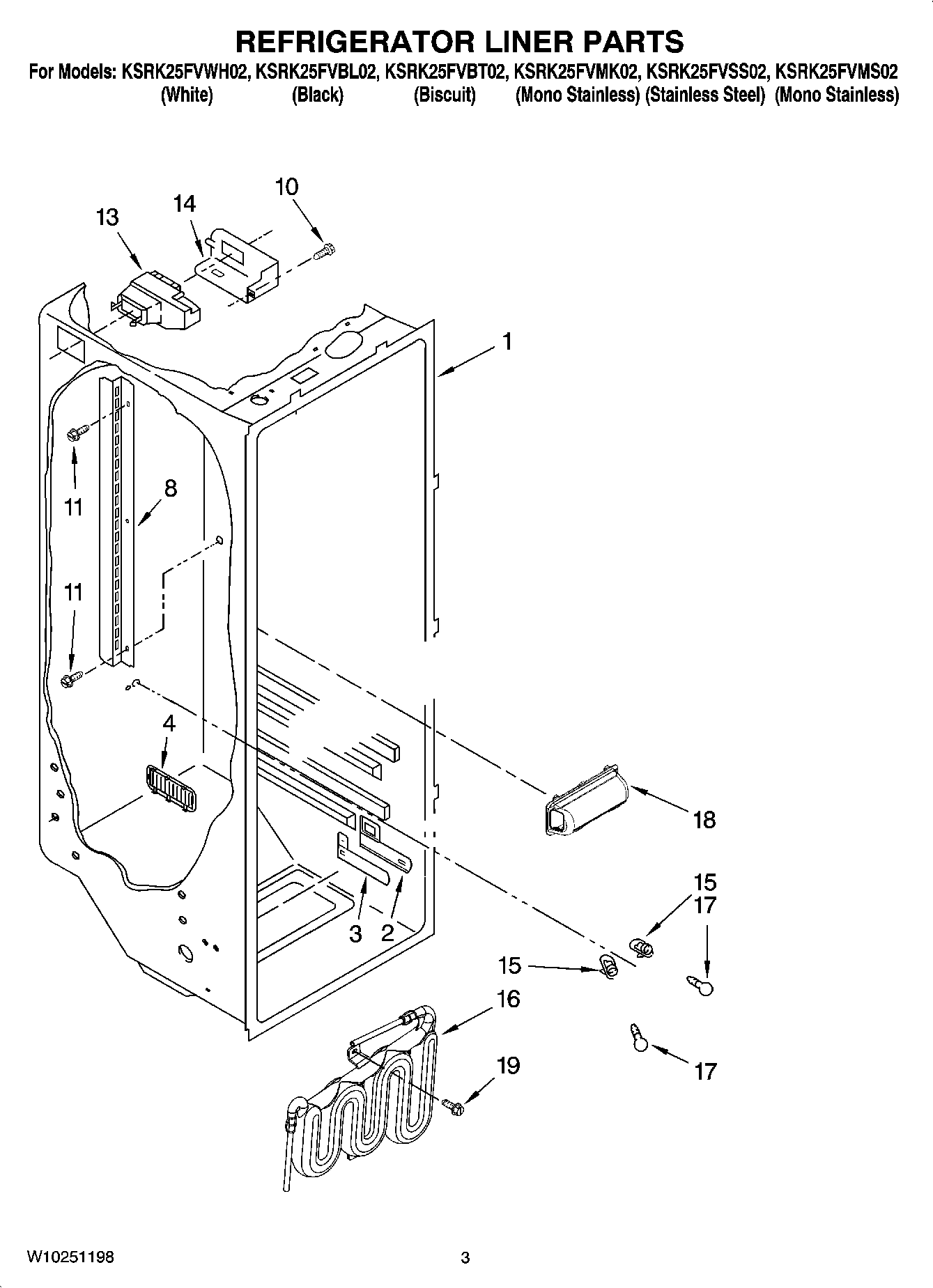

KSRK25FVBL02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
8	Shelf Ladder
10	W10759522 Whirlpool Screw
11	WP489478 Whirlpool Refrigerator Screw
13	W10899382 Whirlpool Damper Control Assembly
14	W10128735 Whirlpool Refrigerator Cover
15	4387478 Whirlpool Refrigerator Light Socket
16	RESERVOIR
17	WPA3073101 Whirlpool Light Bulb
18	W11239891 Whirlpool Refrigerator Light Lens
19	W10141518 Whirlpool Refrigerator Screw
