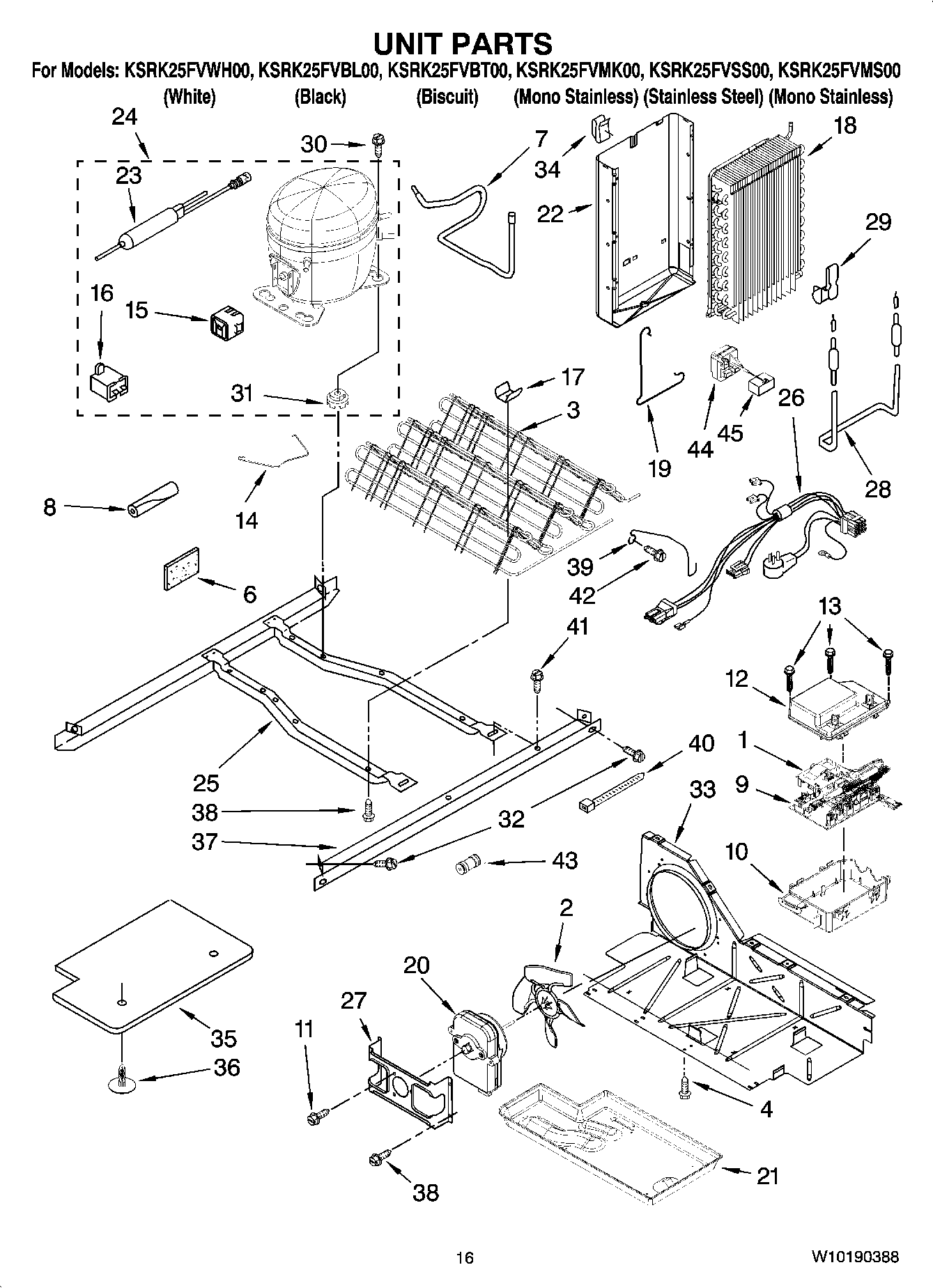

KSRK25FVBT00 10 – UNIT PARTS
Written by
in
KSRK25FVBT00 10 – UNIT PARTS
Products
Position
Product
978027 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
REFRIGERANT CHARGE 5.00 oz. (R-134A)
VALVE, ACCESS (5/8“)
1
WPW10120818 Whirlpool Refrigerator Electronic Control Board
2
W10156818 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
6
W11553819 Whirlpool Refrigerator Insulation
7
WP2205765 Whirlpool Refrigerator Tube
8
SLEEVE
9
WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
10
2323186 Whirlpool Refrigerator Housing
11
WP8533993 Whirlpool Refrigerator Screw
12
2323188 Whirlpool Refrigerator Cover
13
WPW10171469 Whirlpool Refrigerator Screw
14
Clip, Retaining
15
WP2304885 Whirlpool Refrigerator Start Device
16
WPW10662129 Whirlpool Refrigerator Run Capacitor
17
W10683556 Whirlpool Refrigerator Clip
18
WP2188823 Whirlpool Refrigerator Evaporator
19
Clamp
20
WP2188874 Whirlpool Refrigerator Condenser Motor
21
WPW10614158 Whirlpool Refrigerator Evaporator Tray
22
Heat Shield
23
WPW10143759 Whirlpool Dryer Filter
24
W10139462 Whirlpool Refrigerator Compressor
25
2304904 Whirlpool Frame Assembly
26
WPW10291106 Whirlpool Refrigerator Wire Harness
27
WP2181929 Whirlpool Refrigerator Bracket
28
WP2323198 Whirlpool Refrigerator Heater
29
W11623163 Whirlpool Refrigerator Clip
31
876811 Whirlpool Grommet
31
WP4387558 Whirlpool Refrigerator Compressor Grommet
32
489340 Whirlpool Refrigerator Screw
33
W10896764 Whirlpool Refrigerator Air Baffle
34
Clip, Heat Shield
35
Unit Cover, Bottom
36
489396 Whirlpool Refrigerator Clip
37
2305374 Whirlpool Refrigerator Unit Rail
38
W11544659 Whirlpool Refrigerator Screw
39
2260517 Whirlpool Fan Guard
40
WPW10339879 Whirlpool Wire Tie
41
WP489427 Whirlpool Refrigerator Screw
42
WPW10141625 Whirlpool Refrigerator Screw Assembly
43
WPW10334458 Whirlpool Refrigerator Connector
44
WPW10189190 Whirlpool Start Device
←
