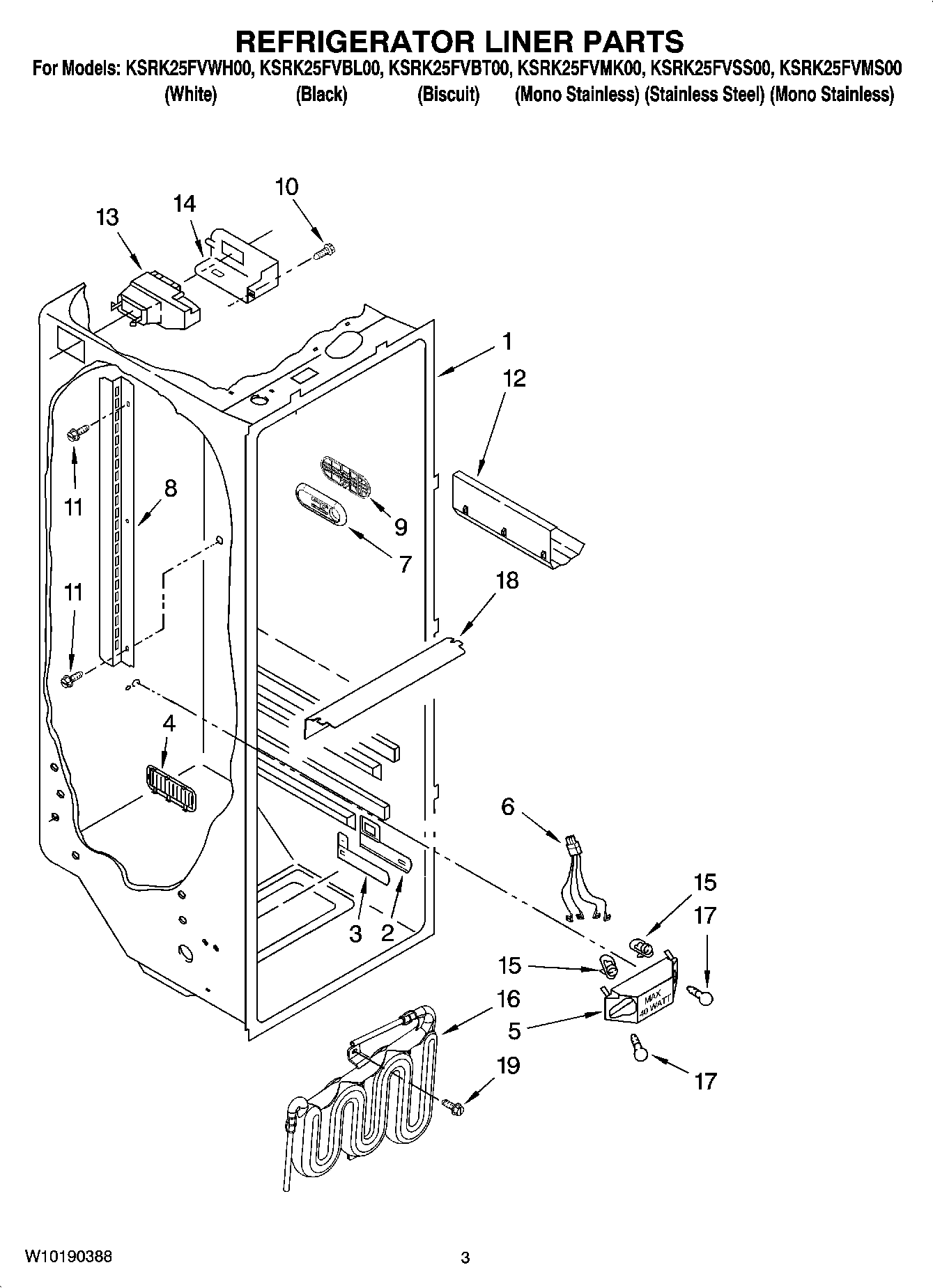

KSRK25FVMS00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	Bracket, Dual Crisper Light
6	2311637 Whirlpool Refrigerator Wire Harness
7	2301234 Whirlpool Refrigerator Control
8	Shelf Ladder
9	Slide, Door Control
10	W10759522 Whirlpool Screw
11	WP489478 Whirlpool Refrigerator Screw
12	W10777924 Whirlpool Refrigerator Wine Rack
13	W10899382 Whirlpool Damper Control Assembly
14	W10128735 Whirlpool Refrigerator Cover
15	4387478 Whirlpool Refrigerator Light Socket
16	RESERVOIR
17	RANGE ONLY 40W 120V APPL BULB
18	Light Lens
19	Screw (2)
