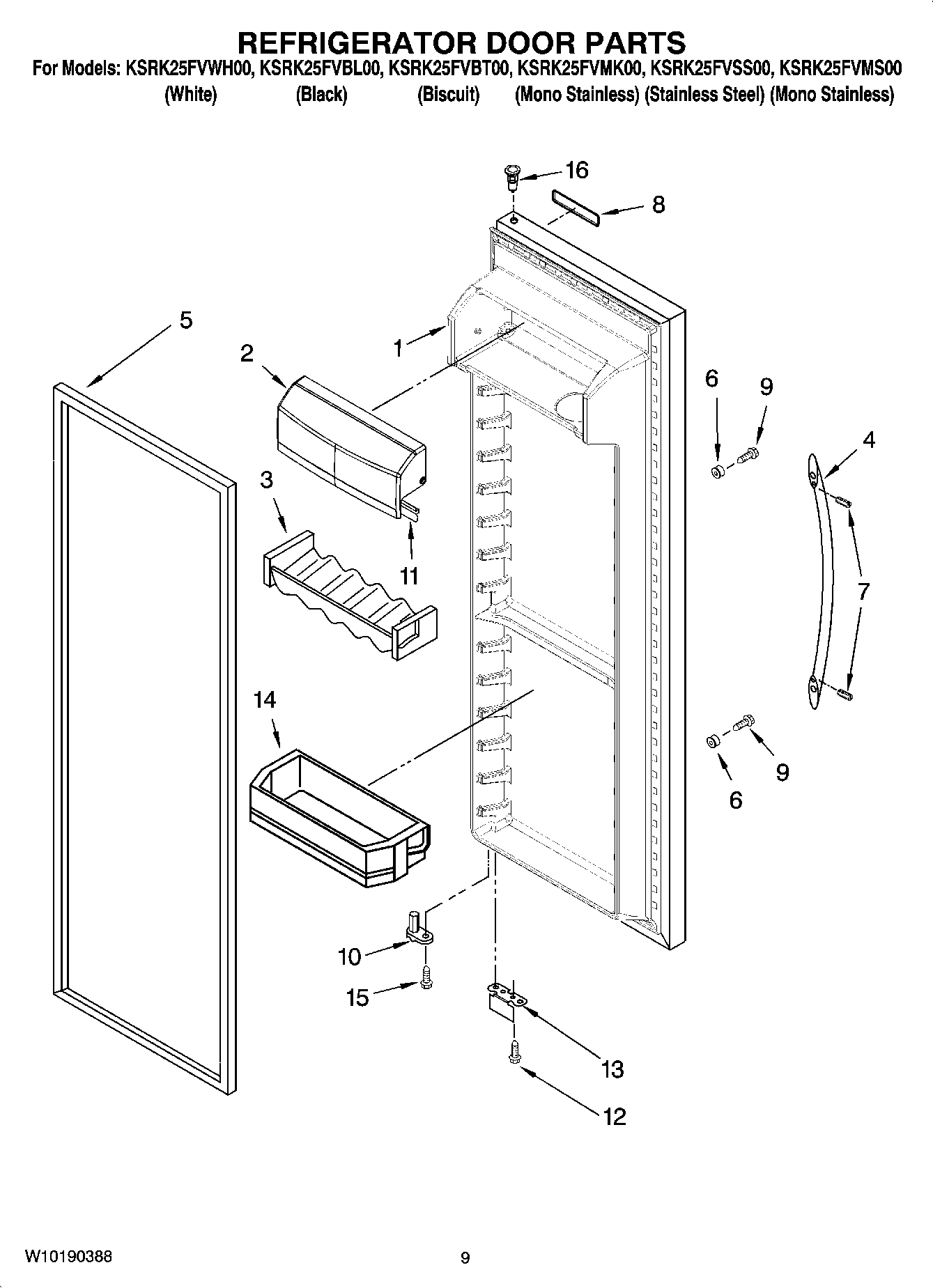

KSRK25FVMS00 06 – REFRIGERATOR DOOR PARTS

KSRK25FVMS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRK25FVMS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1REFRIGERATOR DOOR (INCLUDES No.7) (BISCUIT)
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC SATINA)
1Refrigerator Door (Includes 7) (Stainless Steel)
2Door, Compartment
3Beverage Holder
4Handle (Includes 4) (Biscuit)
4Handle, Door (Stainless Steel)
4WP2319727W Whirlpool Refrigerator Handle
4WP2319727B Whirlpool Refrigerator Handle
52159083 Whirlpool Gasket Door
52159075 Whirlpool Door Gasket Seal
6WPW10170540 Whirlpool Screw
7SCREW
7WPW10010150 Whirlpool Refrigerator Screw
8Nameplate (Biscuit)
8NAMEPLATE
8WPW10243392 Whirlpool Dishwasher Nameplate
8WPW10243393 Whirlpool Dishwasher Nameplate
9WP488163 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11Gasket, Door Compartment
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2223434K Whirlpool Refrigerator Door Shelf Bin
15WP3400012 Whirlpool Refrigerator Screw
16WP2182181 Whirlpool Refrigerator Thimble
16Thimble, Top (For Stainless Steel Models)
