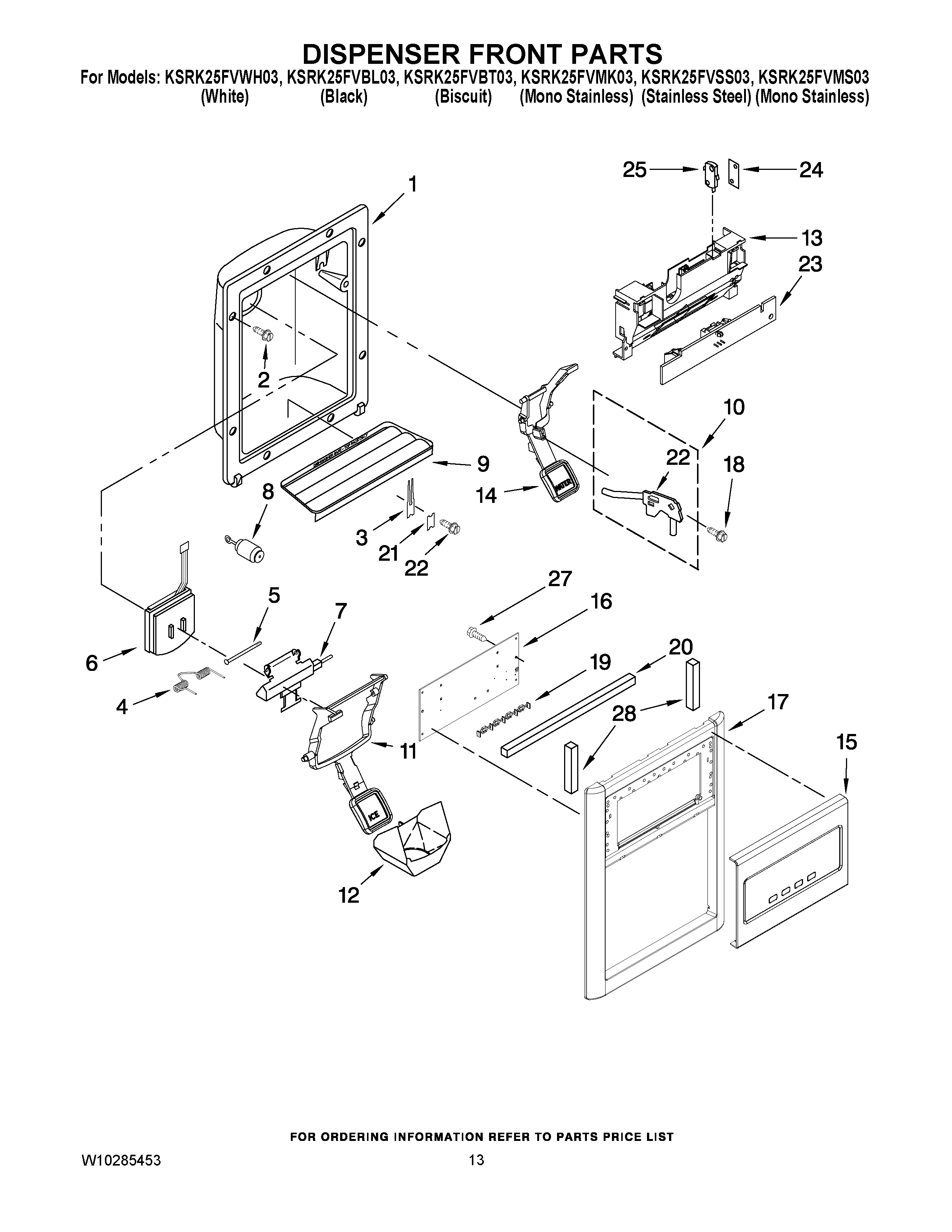

KSRK25FVMS03 08 – DISPENSER FRONT PARTSadmin2025-04-26T11:55:58+00:00KSRK25FVMS03 08 – DISPENSER FRONT PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2WP3196557 Whirlpool Screw3WP2194719 Whirlpool Refrigerator Clip4WPW10224328 Whirlpool Refrigerator Spring5WP2196195 Whirlpool Refrigerator Door Pin6WP2180353 Whirlpool Dispenser Door7Door Mechanism Assembly8Delay Mechanism9WP2206670T Whirlpool Refrigerator Grille9WP2206670W Whirlpool Dispenser Tray9WP2206670B Whirlpool Dispenser Tray108201537 Whirlpool Water Tubing Assembly11W10152855 Whirlpool Refrigerator Dispenser Arm11WPW10152853 Whirlpool Refrigerator Dispenser Arm11W10155161 Whirlpool Refrigerator Dispenser Arm11WPW10152854 Whirlpool Refrigerator Dispenser Arm12WP2180224 Whirlpool Dispenser Funnel Guide13W10728484 Whirlpool Refrigerator Dispenser Control Bracket14W10152860 Whirlpool Refrigerator Dispenser Arm14WPW10152859 Whirlpool Refrigerator Dispenser Arm14WPW10152858 Whirlpool Refrigerator Dispenser Arm14Lever, Water Dispenser (Apollo Grey)15Fascia Assy (White)15Fascia Assy (Biscuit)15Fascia Assy (Stainless)15Fascia Assy (Black)16Control Board17W10136852 Whirlpool Front Cover17Bezel, Disp (Black)17W10136850 Whirlpool Refrigerator Front Cover17Bezel, Disp (Mono Satina (SS))18WP3400906 Whirlpool Refrigerator Screw19Support, Window202305571 Whirlpool Gasket Assembly21WP2195051 Whirlpool Refrigerator Clip22WP2304673 Whirlpool Refrigerator Bracket23LED Assy24Spacer, Switch (2)25WP2162361 Whirlpool Switch272006254 Whirlpool Refrigerator Screw28Gasket, Disp (2)
