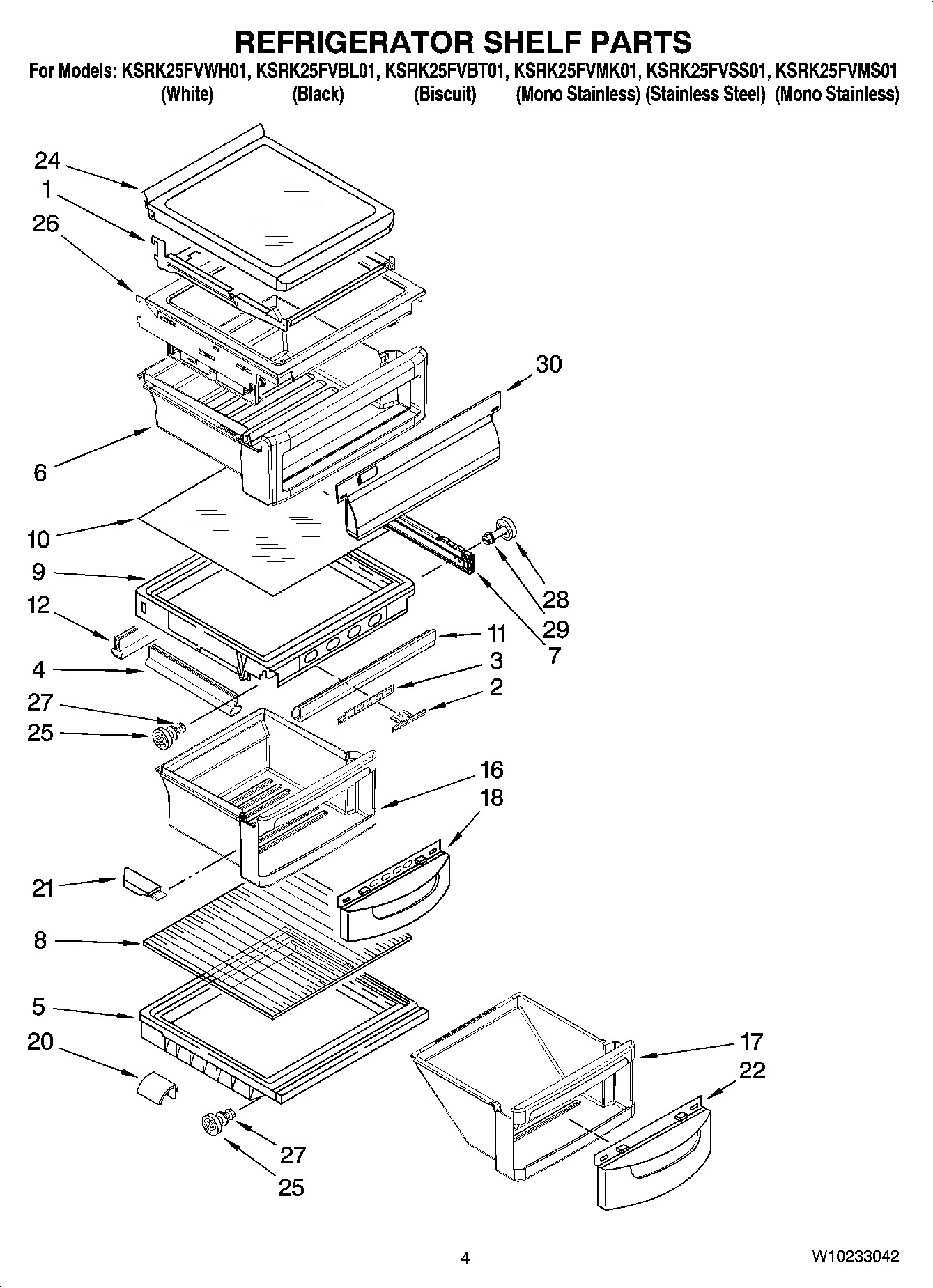

KSRK25FVSS01 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame, Shelf
2Knob, Humidity
32301026 Whirlpool Refrigerator Slide
42301117 Whirlpool Refrigerator Gasket
5Cover, Meat Pan (Includes 20 & 24)
6Snack Pan (Includes 30)
7Glide Assm-Pan (Left Side)
72301548 Whirlpool Refrigerator Glide
8Glass, Cover
9Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10Glass, Cover
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, Rear
16Crisper Pan (Includes 13, 14, 18, 19 & 21)
17Meat Pan (Includes 13, 14, 19 & 22)
18Window, Crisper
20Deflector
21Cap, Crisper Pan (Right Side)
21Cap, Crisper Pan (Left Side)
22Window, Meat Pan
24Shelf & Roller Assembly
25W11223328 Whirlpool Refrigerator Shelf Stud
26Shelf, Snack Bin
27WP3-24004-109 Whirlpool Refrigerator Screw
28WP2196483 Whirlpool Refrigerator Shelf Stud
29WP3400806 Whirlpool Screw
30WP2179243 Whirlpool Refrigerator Pan Trim
