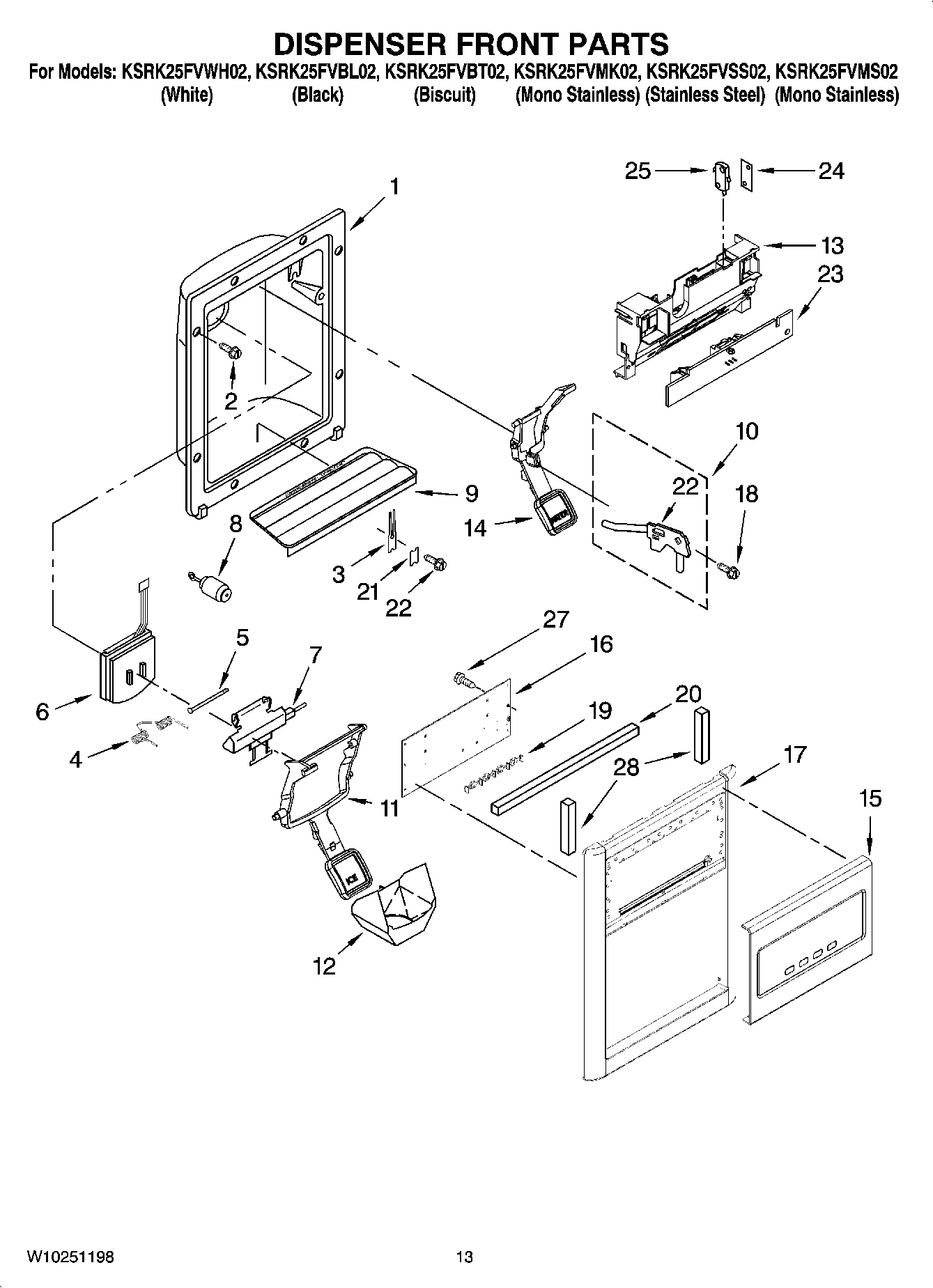

KSRK25FVWH02 08 – DISPENSER FRONT PARTS

KSRK25FVWH02 08 – DISPENSER FRONT PARTS

Written by

in

KSRK25FVWH02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670T Whirlpool Refrigerator Grille
9WP2206670W Whirlpool Dispenser Tray
9WP2206670B Whirlpool Dispenser Tray
108201537 Whirlpool Water Tubing Assembly
11WPW10152853 Whirlpool Refrigerator Dispenser Arm
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
11W10152855 Whirlpool Refrigerator Dispenser Arm
11W10155161 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13W10728484 Whirlpool Refrigerator Dispenser Control Bracket
14WPW10152858 Whirlpool Refrigerator Dispenser Arm
14Lever, Water Dispenser (Apollo Grey)
14W10152860 Whirlpool Refrigerator Dispenser Arm
14WPW10152859 Whirlpool Refrigerator Dispenser Arm
15Fascia Assy (Stainless)
15Fascia Assy (Biscuit)
15Fascia Assy (White)
15Fascia Assy (Black)
16Control Board
17Bezel, Disp (Black)
17W10136850 Whirlpool Refrigerator Front Cover
17W10136852 Whirlpool Front Cover
17Bezel, Disp (Mono Satina (SS))
18WP3400906 Whirlpool Refrigerator Screw
19Support, Window
202305571 Whirlpool Gasket Assembly
21WP2195051 Whirlpool Refrigerator Clip
22WP2304673 Whirlpool Refrigerator Bracket
23LED Assy
24Spacer, Switch (2)
25WP2162361 Whirlpool Switch
272006254 Whirlpool Refrigerator Screw
28Gasket, Disp (2)
