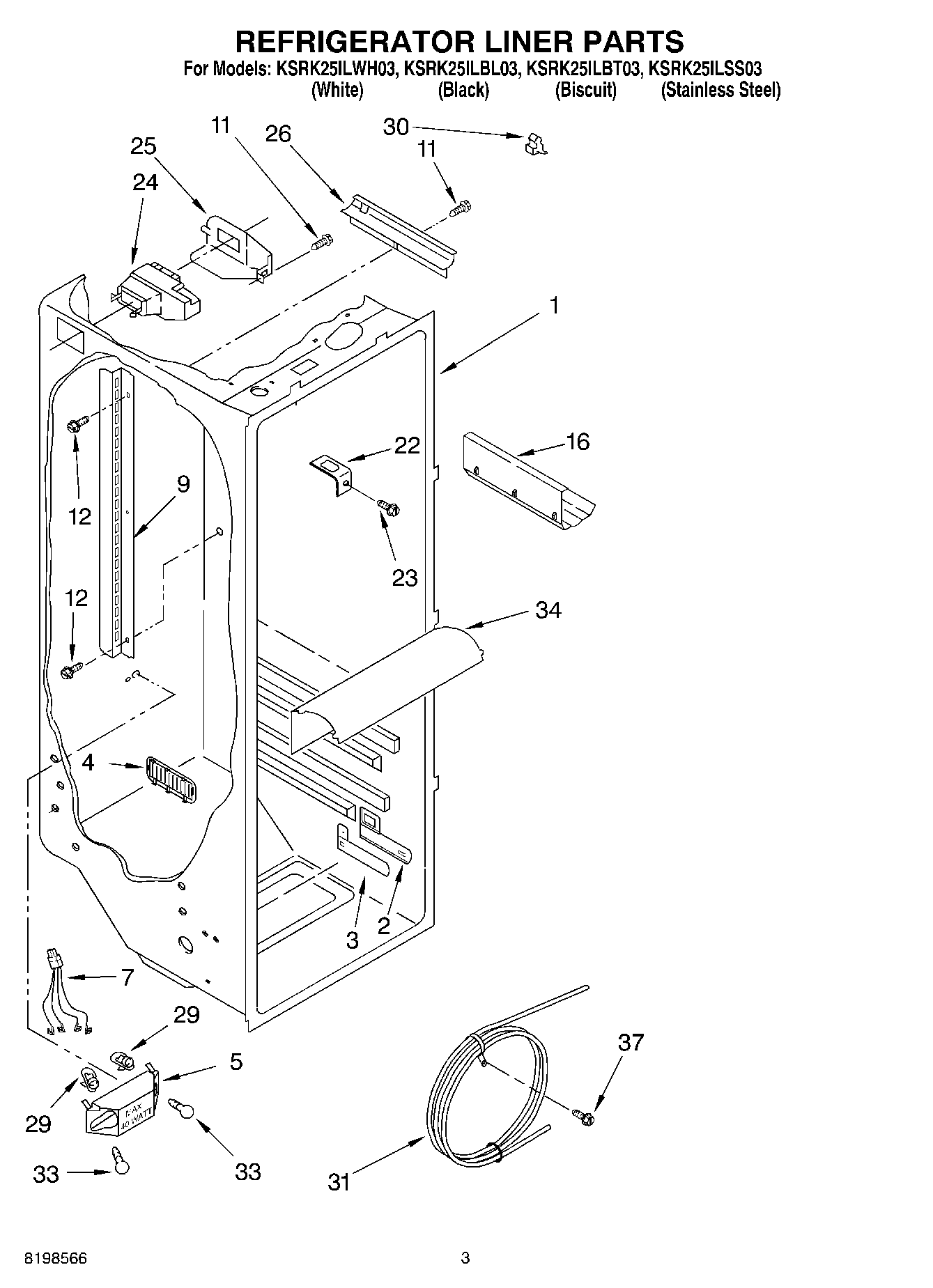

KSRK25ILBL03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
7	2311637 Whirlpool Refrigerator Wire Harness
9	Ladder, Shelf
11	W10759522 Whirlpool Screw
12	WP488729 Whirlpool Refrigerator Door Screw
16	W10777924 Whirlpool Refrigerator Wine Rack
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
25	WP2212240 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
