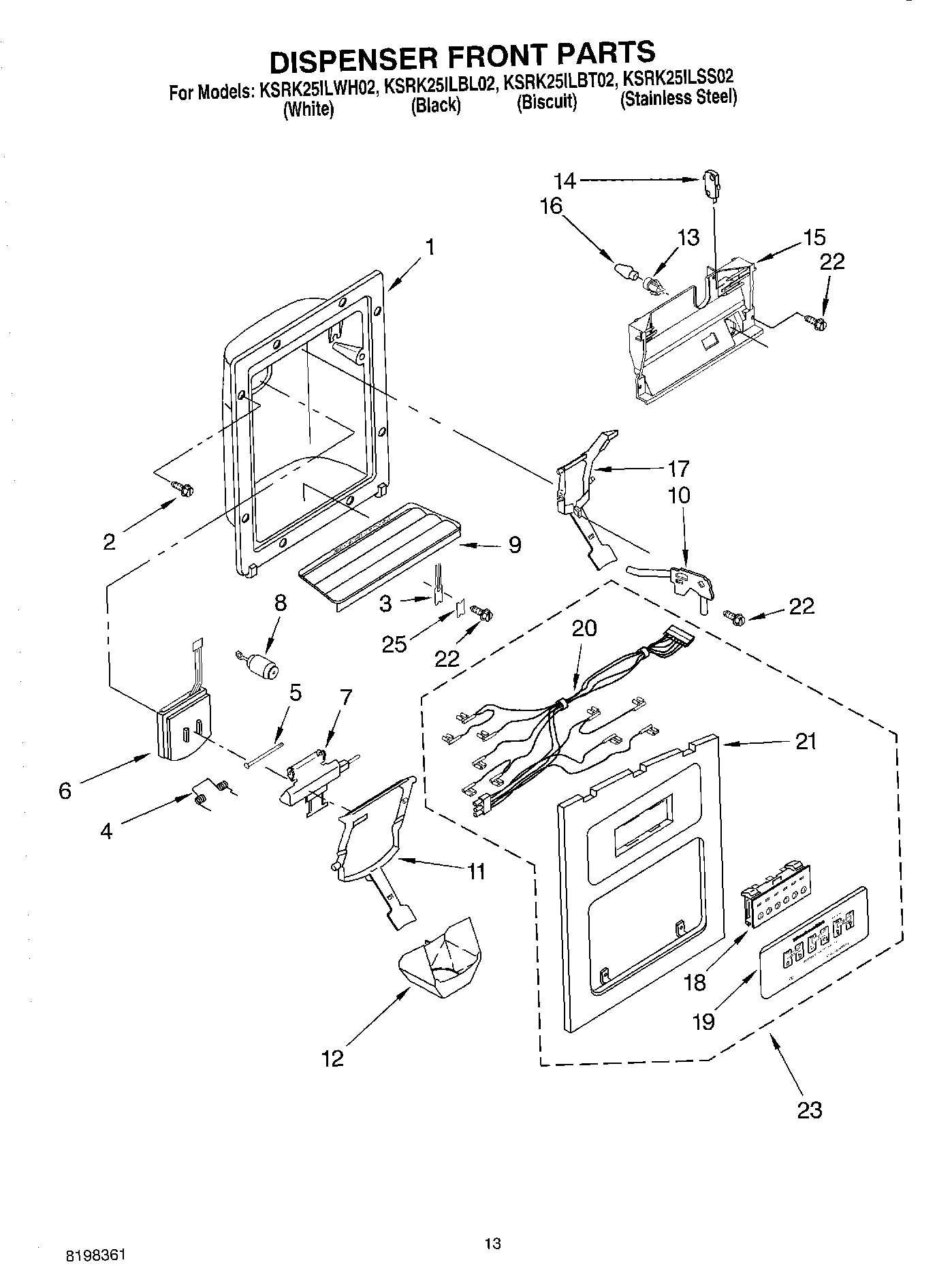

KSRK25ILBT02 08 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
11	Lever, Ice Dispenser (White (White Shadow Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
18	Switch Assembly (Not Available, Order No.23)
19	Overlay, Front Cover (Not Available, Order No.23)
20	2187406 Whirlpool Refrigerator Wire Harness
21	Front Cover, Housing (Not Available, Order No.23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
25	WP2195051 Whirlpool Refrigerator Clip
