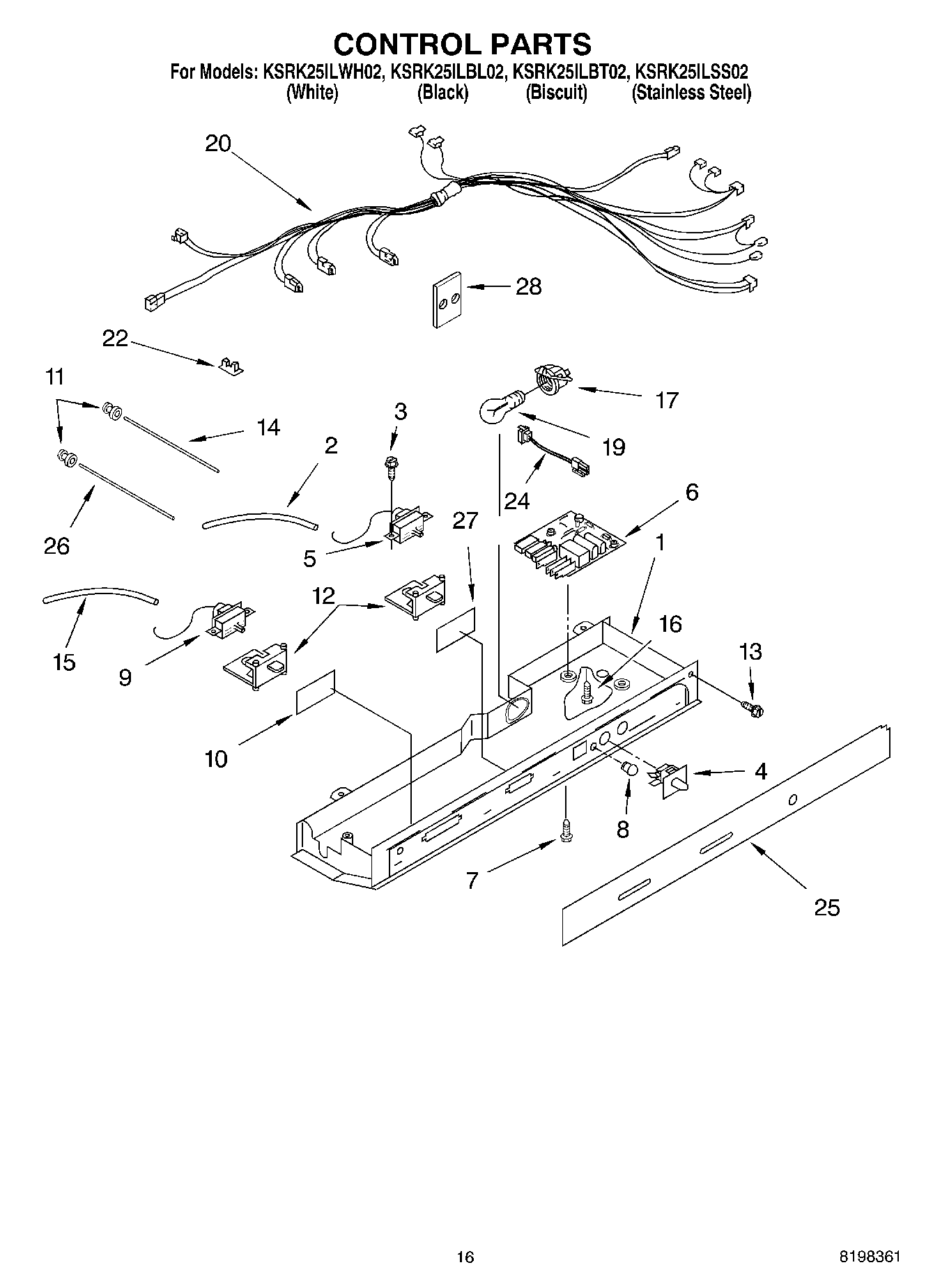

KSRK25ILBT02 10 – CONTROL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2161460 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
9	WP2182770 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Harness, Control Box
22	CLIP, WIRING
24	W10853646 Whirlpool Indicator Light
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
28	2172931 Whirlpool Refrigerator Shield
