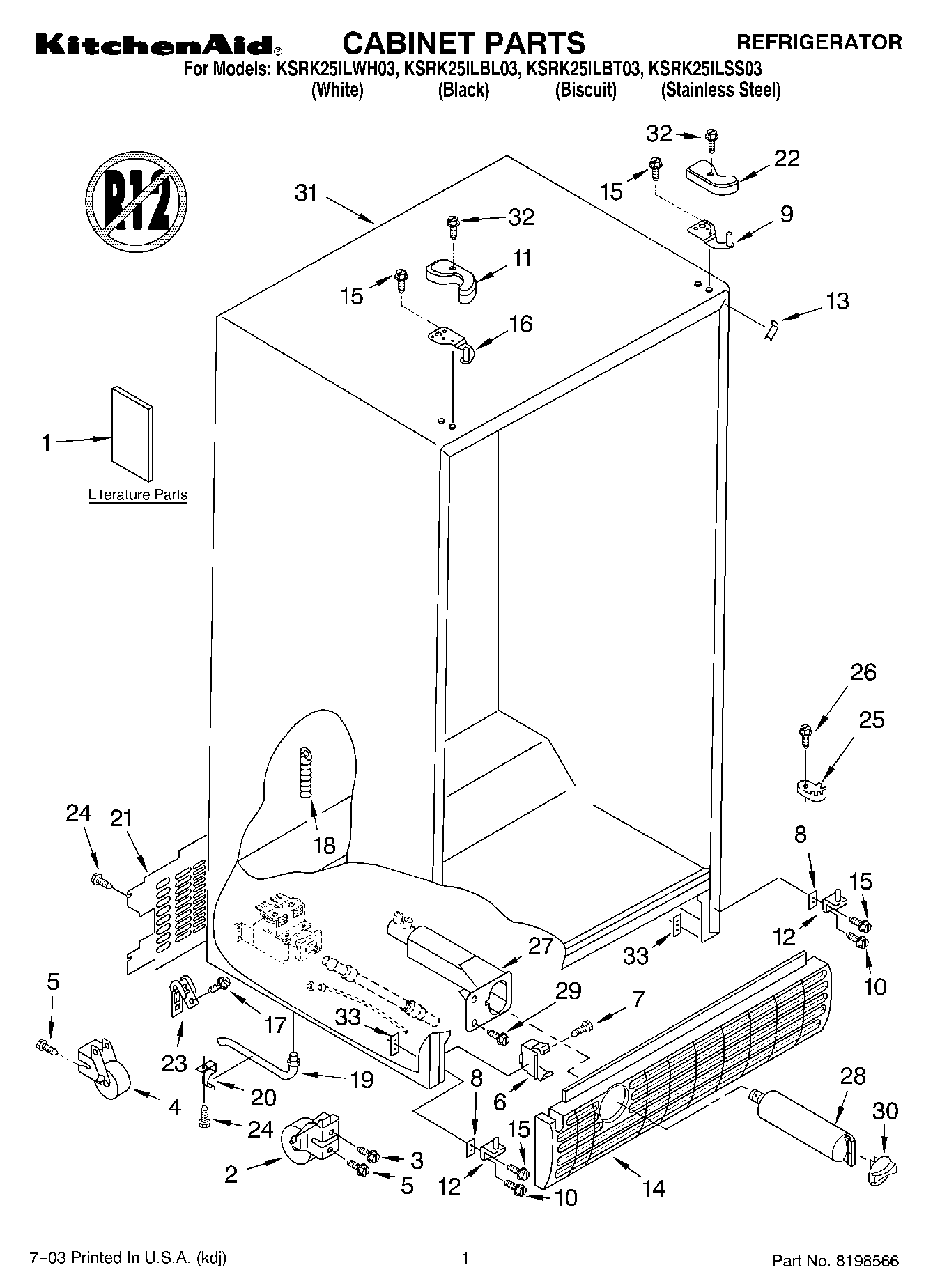

KSRK25ILBT03 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	Literature Parts (Energy Label)
1	Modular Icemaker Service Sheet
1	LITERATURE PARTS
1	LITERATURE PARTS (Service & Wiring Sheet)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	W10856122 Whirlpool Refrigerator Screw
11	2203407T Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
11	WP2203407W Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Biscuit)
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	Grille (Biscuit)
14	W10803964 Whirlpool Grille Assembly
15	WP489497 Whirlpool Screw
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	WP2203408W Whirlpool Refrigerator Cover
22	Hinge Cover (Biscuit)
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WP2186443 Whirlpool Water Filter Housing
28	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29	WP489500 Whirlpool Refrigerator Screw
30	WP2186494W Whirlpool Water Filter Cap
30	WP2186494B Whirlpool Refrigerator Filter Cap
30	WP2186494T Whirlpool Water Filter Cap
31	Cabinet (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
33	WP2304249 Whirlpool Refrigerator Plate
