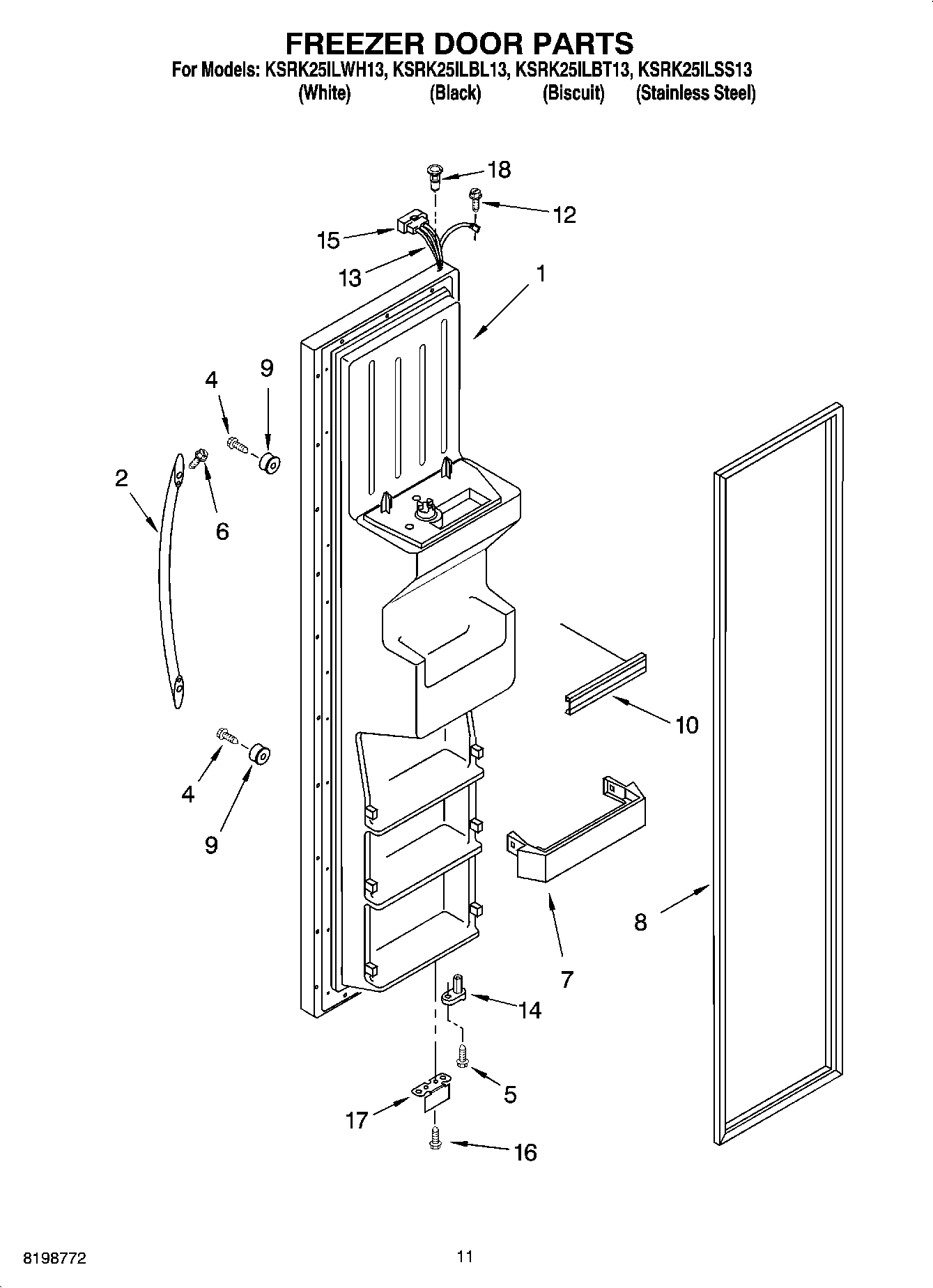

KSRK25ILWH13 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
2	Handle (White)
2	Handle (Biscuit)
2	Handle (Black)
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	Setscrew, 10-32
7	Shelf Bin (4)
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	Stud, Handle
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP489128 Whirlpool Refrigerator Screw
13	Dispenser Harness
14	WP2182179 Whirlpool Cam Closer
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	WP2206629B Whirlpool Refrigerator Bracket
18	WP2182181 Whirlpool Refrigerator Thimble
