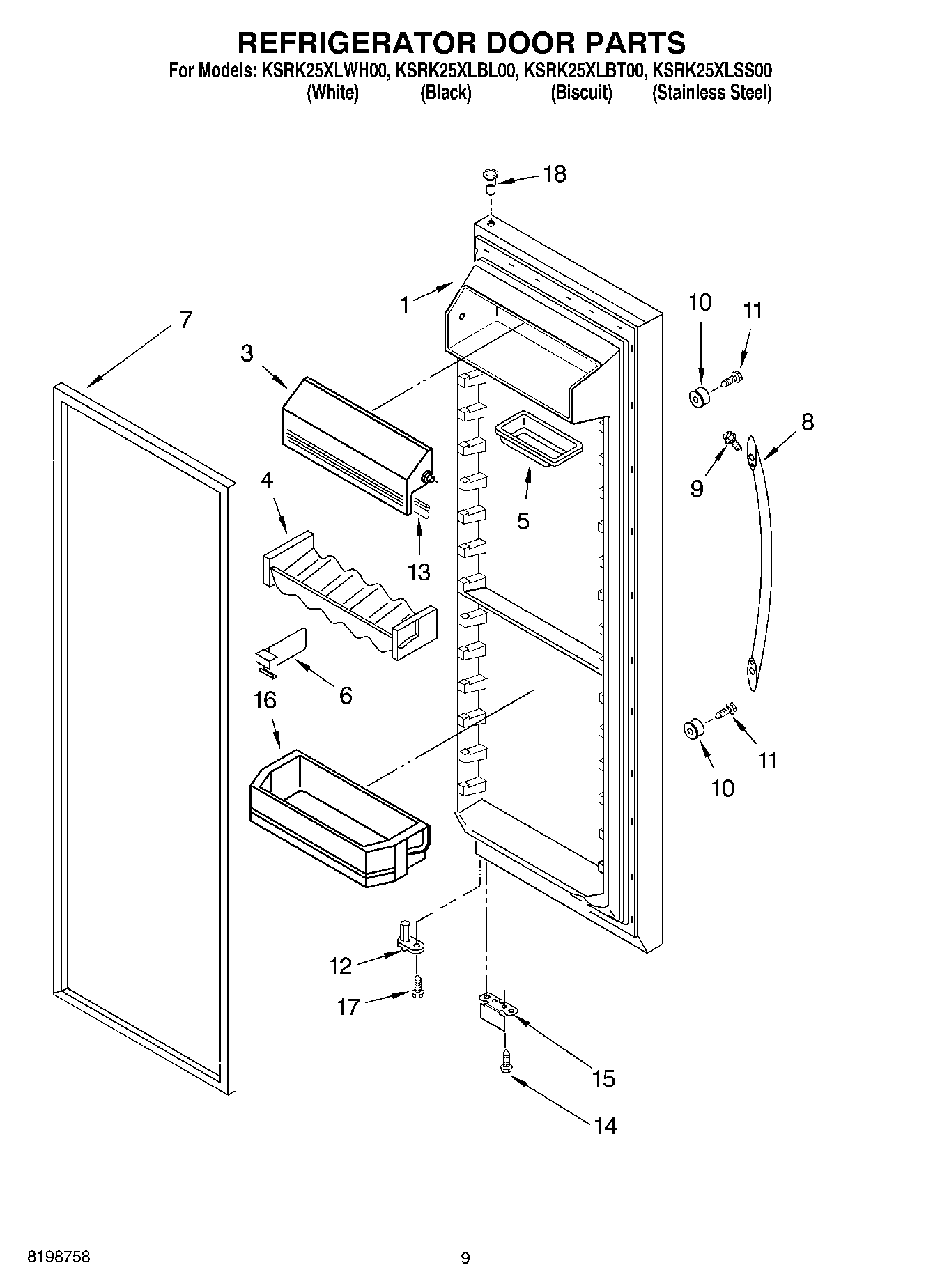

KSRK25XLSS00 06 – REFRIGERATOR DOOR PARTS

KSRK25XLSS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRK25XLSS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.7) (White)
1Refrigerator Door (Includes No.7) (Biscuit)
1Refrigerator Door (Includes No.7) (Black)
1Refrigerator Door (Includes 7) (Stainless Steel)
3Door, Compartment
4Beverage Holder
5Butter Tray
6Divider, Bin
72159075 Whirlpool Door Gasket Seal
72159083 Whirlpool Gasket Door
8Handle (Black)
8Handle (Stainless Steel)
8Handle (White)
8Handle (Biscuit)
9Setscrew, 10-32
10Stud, Handle
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
