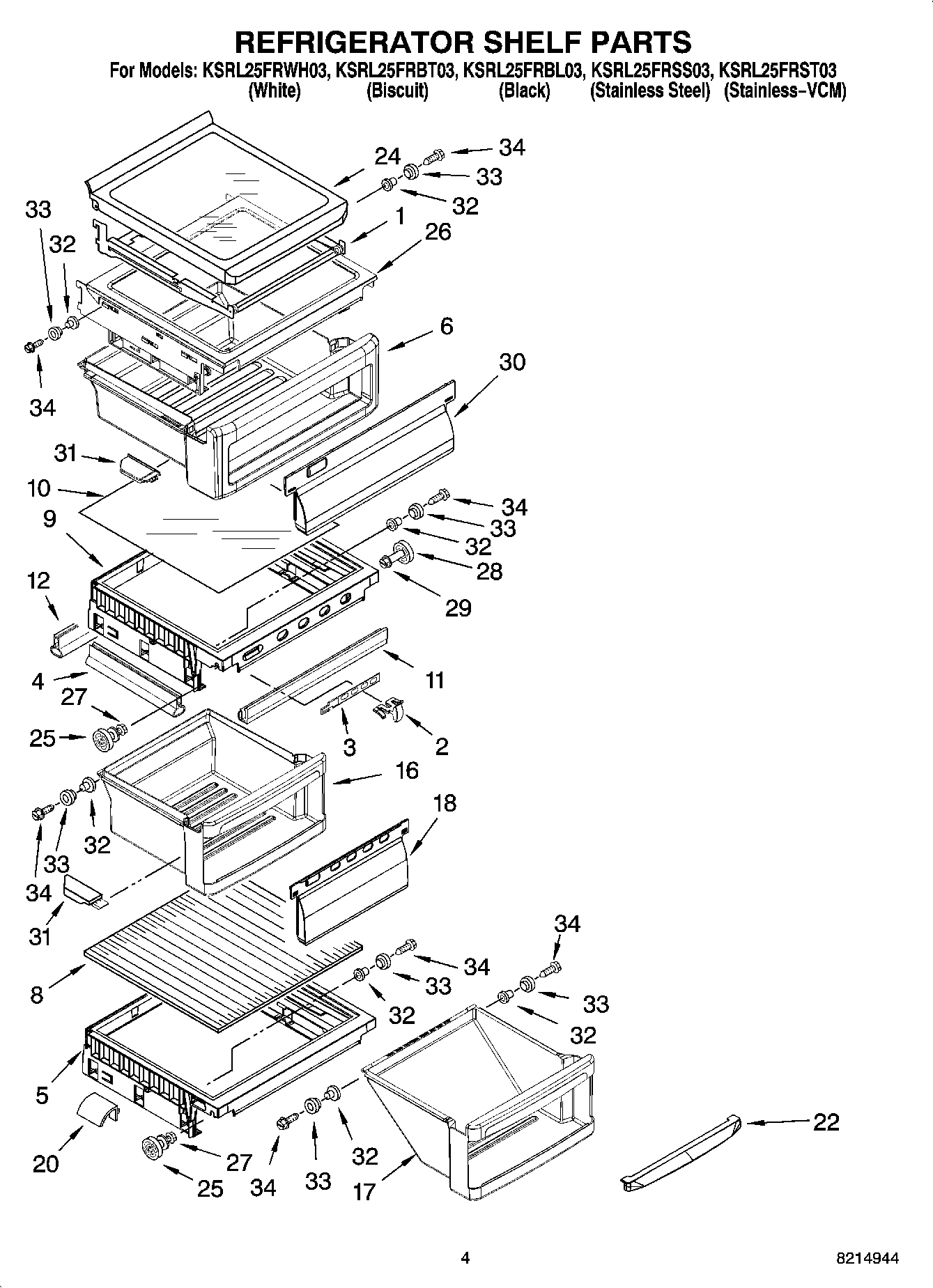

KSRL25FRBT03 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes Items 32, 33 & 34)
6	Snack Pan (Includes 30, 31, 32, 33, & 34)
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 32, 33 & 34)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
16	Crisper Pan (Includes 18, 31, 32, 33 & 34)
17	Meat Pan (Includes 22, 32, 33 & 34)
18	Window, Crisper
20	Deflector
22	Window, Meat Pan
24	Shelf, Slide Out (2)
25	W11223328 Whirlpool Refrigerator Shelf Stud
26	Shelf, Snack Pan
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
30	Window, Snack Pan
31	Cap, Crisper Pan (Right Side)
31	Cap, Crisper Pan (Left Side)
32	Eyelet, Roller
33	Roller
34	Screw
