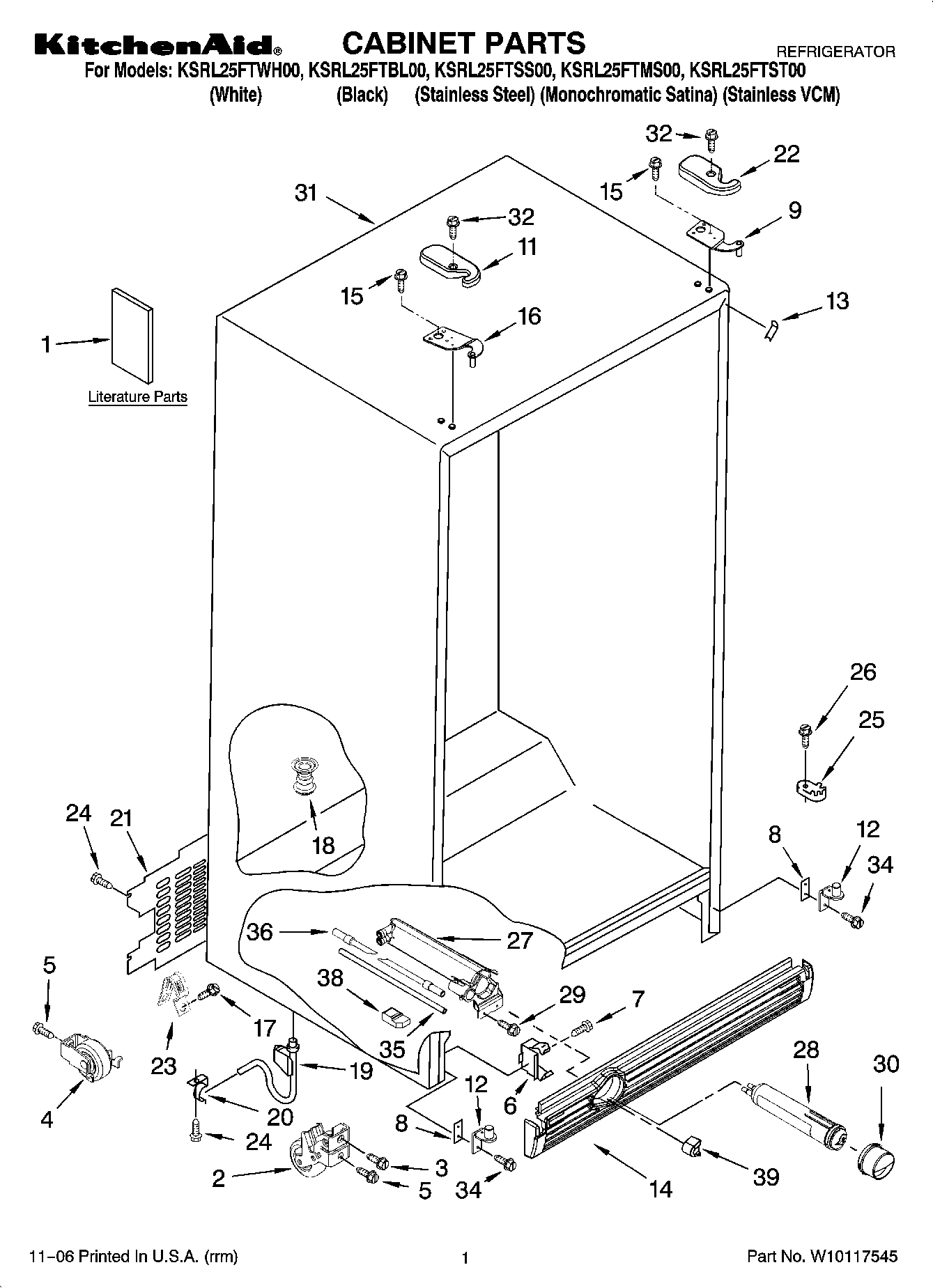

KSRL25FTBL00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
11WP2203407W Whirlpool Refrigerator Cover
11WP2203407B Whirlpool Refrigerator Cover
112203407AP Whirlpool Refrigerator Cover
128201707 Whirlpool Door Hinge
13Filler, Wrapper (White)
13Filler, Wrapper (Black)
13Filler, Wrapper (Apollo Gray)
14WPW10311032 Whirlpool Refrigerator Grille
14Grille (Apollo Gray)
14WPW10311033 Whirlpool Refrigerator Grille
16WP2203770 Whirlpool Refrigerator Door Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188755 Whirlpool Rear Panel
22WP2203408W Whirlpool Refrigerator Cover
22WP2203408B Whirlpool Refrigerator Cover
222203408AP Whirlpool Refrigerator Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27WPW10121138 Whirlpool Refrigerator Water Filter Housing
28EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29WP489500 Whirlpool Refrigerator Screw
30WP2260518AP Whirlpool Filter Cap Assembly
30WP2260518B Whirlpool Water Filter Cap
30WP2260518W Whirlpool Refrigerator Filter Cap
31Cabinet, (Not A Serviceable Part)
32WP8281227 Whirlpool Screw
34WP489497 Whirlpool Screw
35WPW10350006 Whirlpool Refrigerator Water Tube
36WP2304697 Whirlpool Refrigerator Water Tube
38Block, Housing Support
392260503W Whirlpool Refrigerator Button
39Button, Water
39WP2260503B Whirlpool Refrigerator Button
