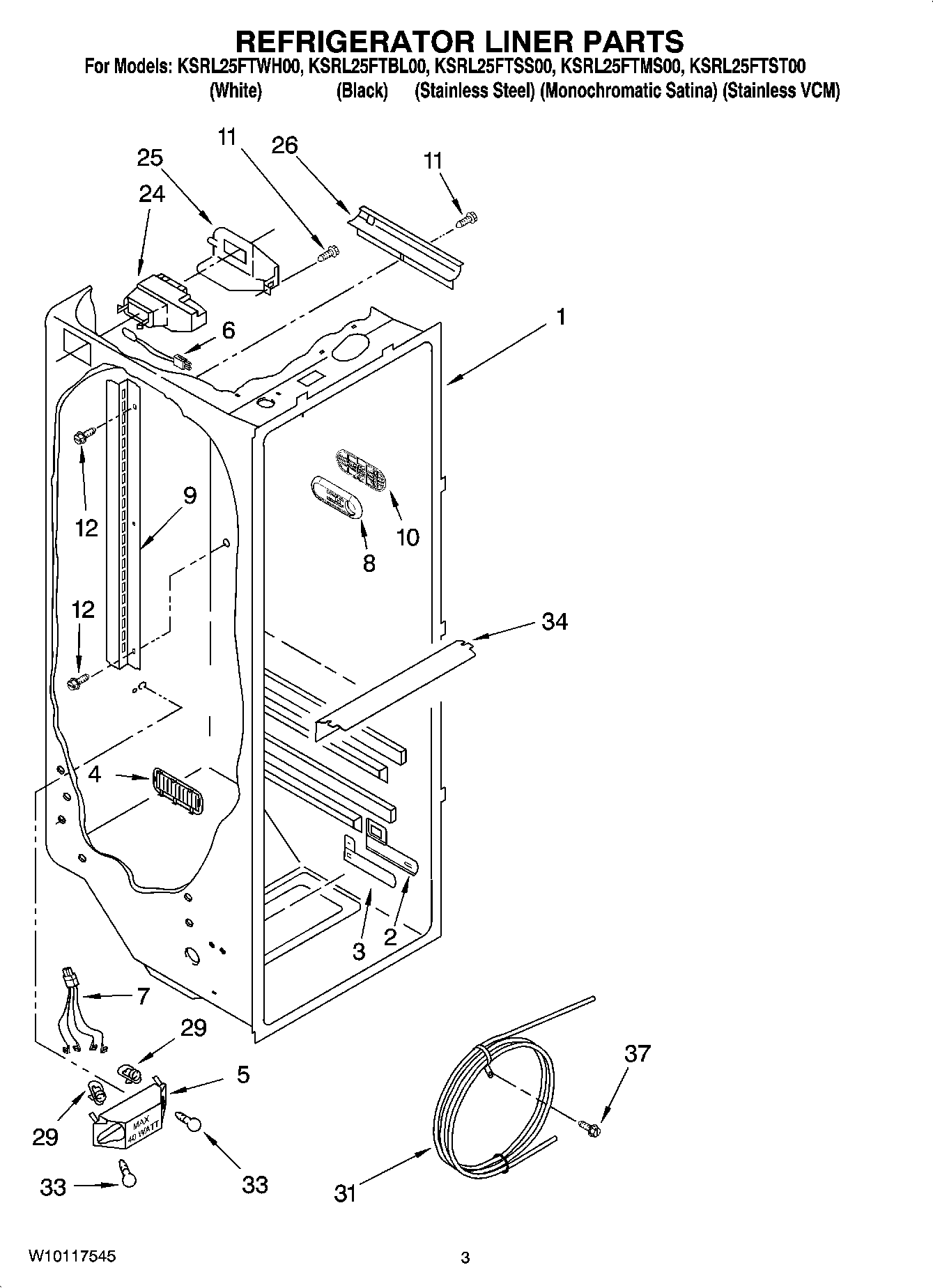

KSRL25FTBL00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	Bracket, Dual Crisper Light
6	WP2188819 Whirlpool Thermistor
7	2311637 Whirlpool Refrigerator Wire Harness
8	2301234 Whirlpool Refrigerator Control
9	Shelf Ladder
10	Slide, Door Control
11	W10759522 Whirlpool Screw
12	WP489478 Whirlpool Refrigerator Screw
24	WP2216112 Whirlpool Damper Control Assembly
25	WP2212240 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
