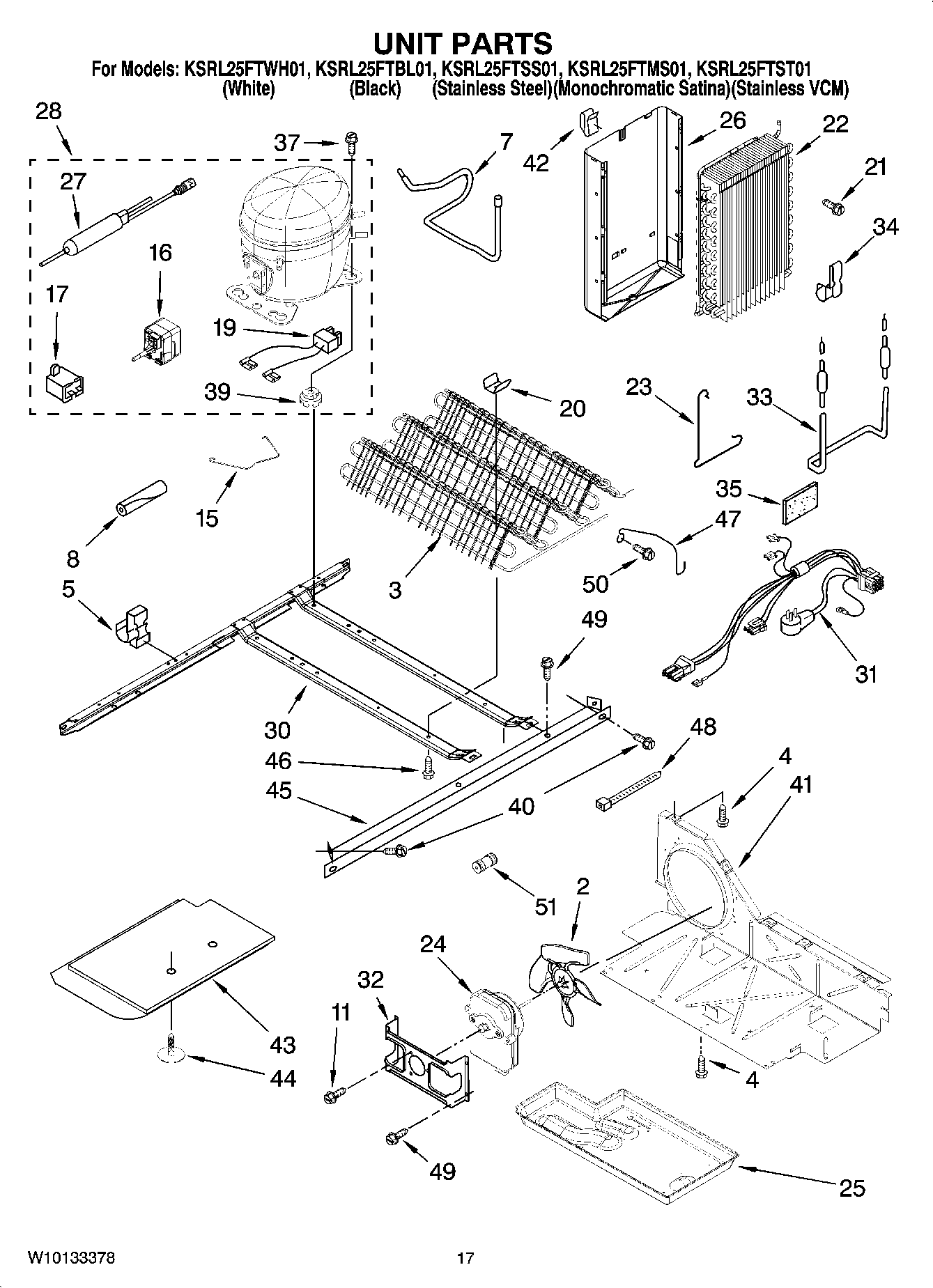

KSRL25FTBL01 11 – UNIT PARTS

KSRL25FTBL01 11 – UNIT PARTS

Written by

in

KSRL25FTBL01 11 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
7WP2205765 Whirlpool Refrigerator Tube
8SLEEVE
11681390 Whirlpool Refrigerator Screw
152223314 Whirlpool Refrigerator Clip
16WP2304885 Whirlpool Refrigerator Start Device
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19WP2172890 Whirlpool Refrigerator Wire
20W10683556 Whirlpool Refrigerator Clip
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27WPW10143759 Whirlpool Dryer Filter
28W10139460 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
31Unit, Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
35W11553819 Whirlpool Refrigerator Insulation
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
452305374 Whirlpool Refrigerator Unit Rail
46W11544659 Whirlpool Refrigerator Screw
472260517 Whirlpool Fan Guard
48WPW10339879 Whirlpool Wire Tie
49WP489427 Whirlpool Refrigerator Screw
50WPW10141625 Whirlpool Refrigerator Screw Assembly
51VALVE, ACCESS (5/8“)
51Following Parts Not Illustrated and Optional Parts Not Included
51876764 Whirlpool Refrigerator Primary Valve
51WP4373559 Whirlpool Fitting
51978027 Whirlpool Refrigerator Primary Valve
51978030 Whirlpool Refrigerator Valve
51WP978025 Whirlpool Refrigerator Valve
51VALVE, ACCESS (1/2“)
51978026 Whirlpool Refrigerator Primary Valve
51REFRIGERANT CHARGE 5.00 oz. (R-134A)
