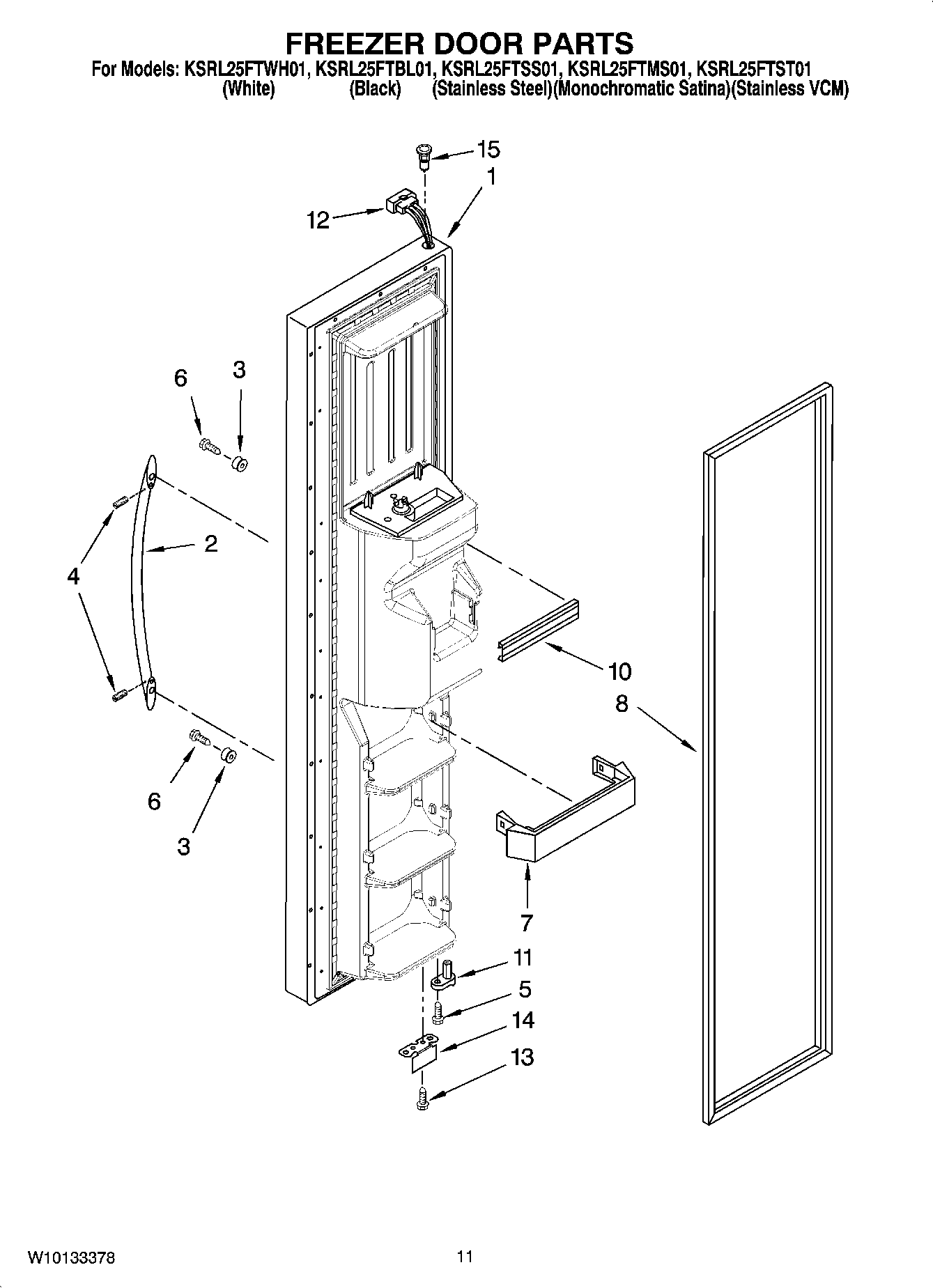

KSRL25FTMS01 07 – FREEZER DOOR PARTS

KSRL25FTMS01 07 – FREEZER DOOR PARTS

Written by

in

KSRL25FTMS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Satina)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
3WPW10170540 Whirlpool Screw
4SCREW
5WP3400012 Whirlpool Refrigerator Screw
6WP488163 Whirlpool Refrigerator Screw
7Shelf Bin (3)
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182179 Whirlpool Cam Closer
12Connector
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP2182181 Whirlpool Refrigerator Thimble
15Thimble, Top (For Stainless Steel Models)
