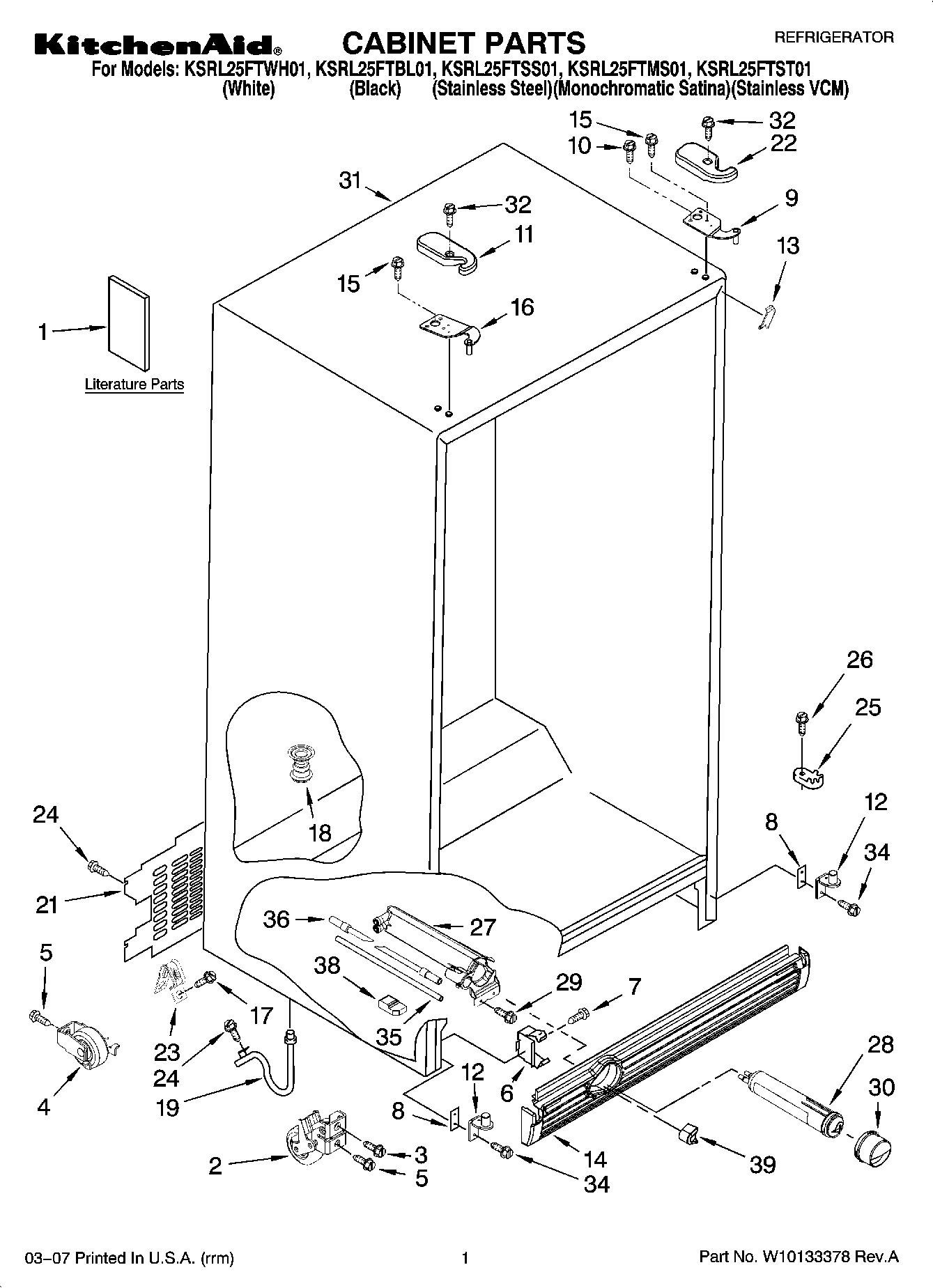

KSRL25FTSS01 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	W10853301 Whirlpool Refrigerator Screw
11	WP2203407W Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
11	2203407AP Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
13	Filler, Wrapper (Apollo Gray)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10311033 Whirlpool Refrigerator Grille
14	Grille (Apollo Gray)
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
21	WP2188755 Whirlpool Rear Panel
22	2203408AP Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
22	WP2203408W Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	FILTER 3-SINGLE TEAL
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518AP Whirlpool Filter Cap Assembly
30	WP2260518W Whirlpool Refrigerator Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
34	WP489497 Whirlpool Screw
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
38	Block, Housing Support
39	2260503W Whirlpool Refrigerator Button
39	Button, Water
39	WP2260503B Whirlpool Refrigerator Button
