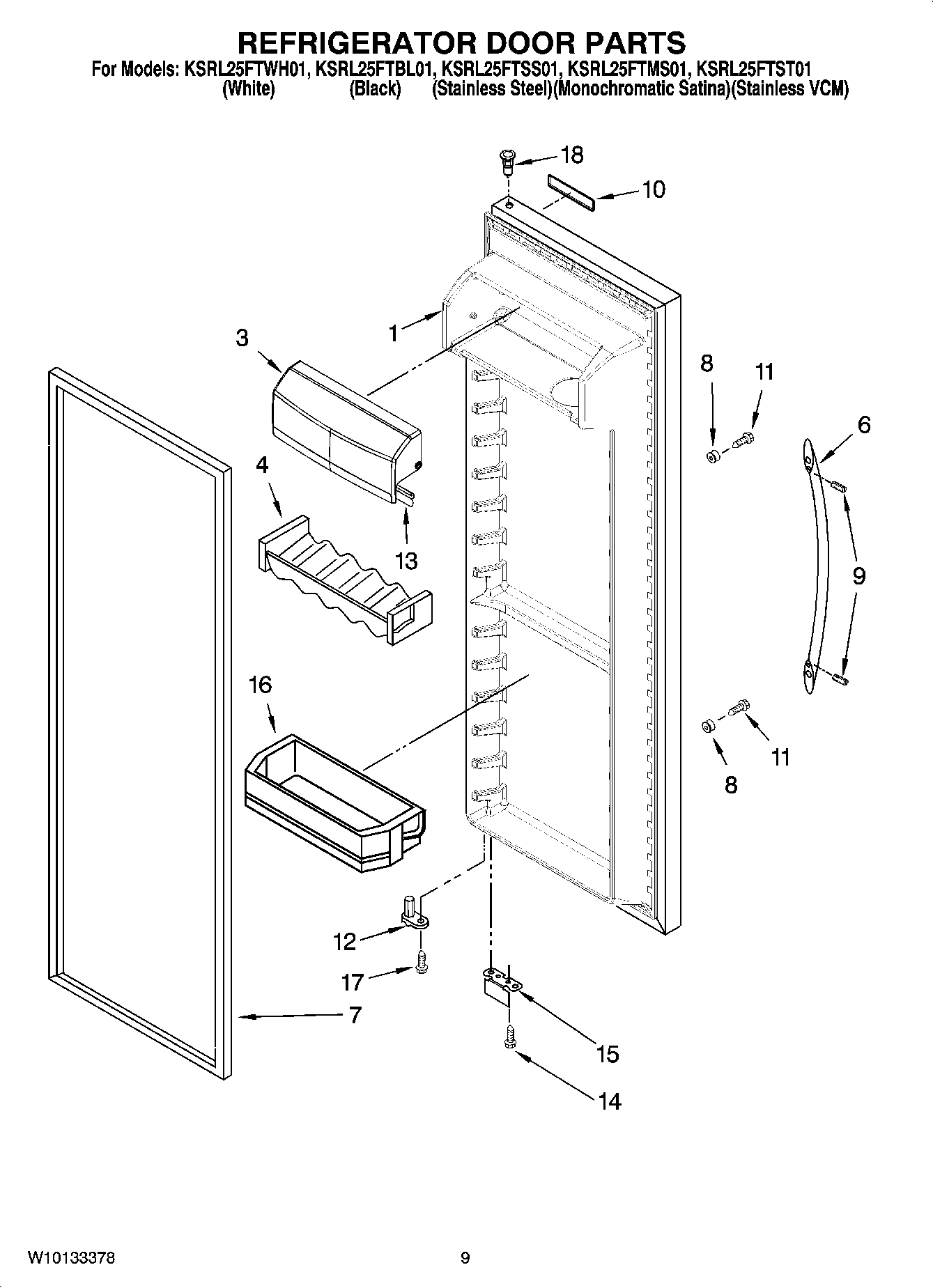

KSRL25FTSS01 06 – REFRIGERATOR DOOR PARTS

KSRL25FTSS01 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRL25FTSS01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Monochromatic Satina)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1Refrigerator Door (Includes 7) (Stainless Steel)
1Refrigerator Door (Includes 7) (Stainless-VCM)
3Door, Compartment
4Beverage Holder
6WP2319727W Whirlpool Refrigerator Handle
6WP2319727B Whirlpool Refrigerator Handle
6Handle, Door (Stainless Steel)
72159075 Whirlpool Door Gasket Seal
72159083 Whirlpool Gasket Door
8WPW10170540 Whirlpool Screw
9SCREW
10NAMEPLATE
10WPW10243393 Whirlpool Dishwasher Nameplate
10WPW10243392 Whirlpool Dishwasher Nameplate
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Shelf Bin
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
18Thimble, Top (For Stainless Steel Models)
