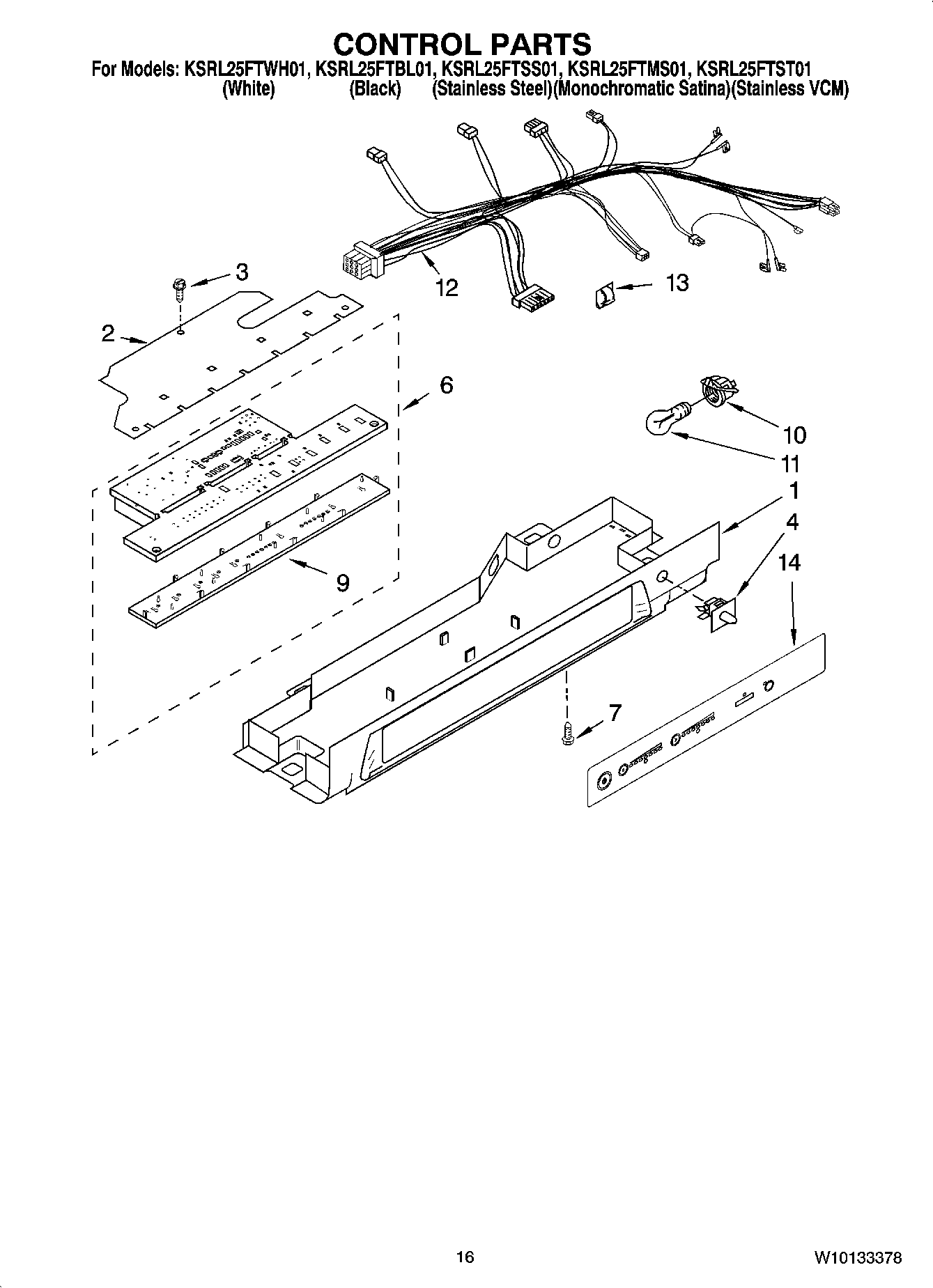

KSRL25FTSS01 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Electronic Control
7	WP67006908 Whirlpool Refrigerator Screw
9	Insert, Control Board (Not Available Order6)
10	4387478 Whirlpool Refrigerator Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Control Box Harness
13	WP1115374 Whirlpool Refrigerator Clip
14	Overlay, Control Box
