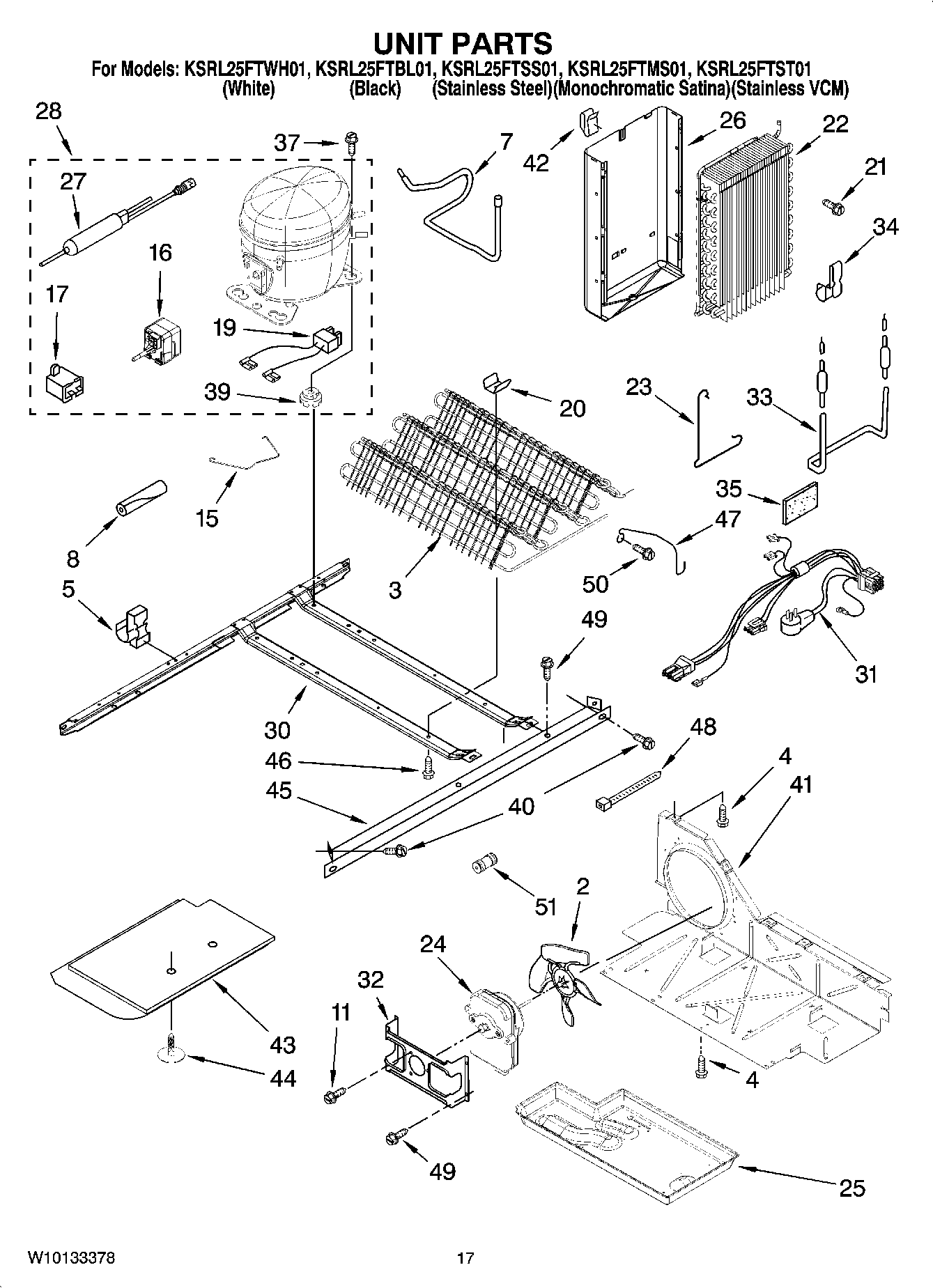

KSRL25FTSS01 11 – UNIT PARTSadmin2025-04-26T11:39:46+00:00KSRL25FTSS01 11 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube7WP2205765 Whirlpool Refrigerator Tube8SLEEVE11681390 Whirlpool Refrigerator Screw152223314 Whirlpool Refrigerator Clip16WP2304885 Whirlpool Refrigerator Start Device17WPW10662129 Whirlpool Refrigerator Run Capacitor19WP2172890 Whirlpool Refrigerator Wire20W10683556 Whirlpool Refrigerator Clip21WP489478 Whirlpool Refrigerator Screw22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27WPW10143759 Whirlpool Dryer Filter28W10139460 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly31Unit, Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip35W11553819 Whirlpool Refrigerator Insulation39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip452305374 Whirlpool Refrigerator Unit Rail46W11544659 Whirlpool Refrigerator Screw472260517 Whirlpool Fan Guard48WPW10339879 Whirlpool Wire Tie49WP489427 Whirlpool Refrigerator Screw50WPW10141625 Whirlpool Refrigerator Screw Assembly51VALVE, ACCESS (5/8``)51Following Parts Not Illustrated and Optional Parts Not Included51876764 Whirlpool Refrigerator Primary Valve51WP4373559 Whirlpool Fitting51978027 Whirlpool Refrigerator Primary Valve51978030 Whirlpool Refrigerator Valve51WP978025 Whirlpool Refrigerator Valve51VALVE, ACCESS (1/2``)51978026 Whirlpool Refrigerator Primary Valve51REFRIGERANT CHARGE 5.00 oz. (R-134A)
